(18) Wind 2 to 3 layers of PTFE tape on each shield terminator band.
Make sure that the tape makes a one hundred percent overlap.
Refer to:
• Figure 245
• Subject 20-00-11 for the PTFE tape.

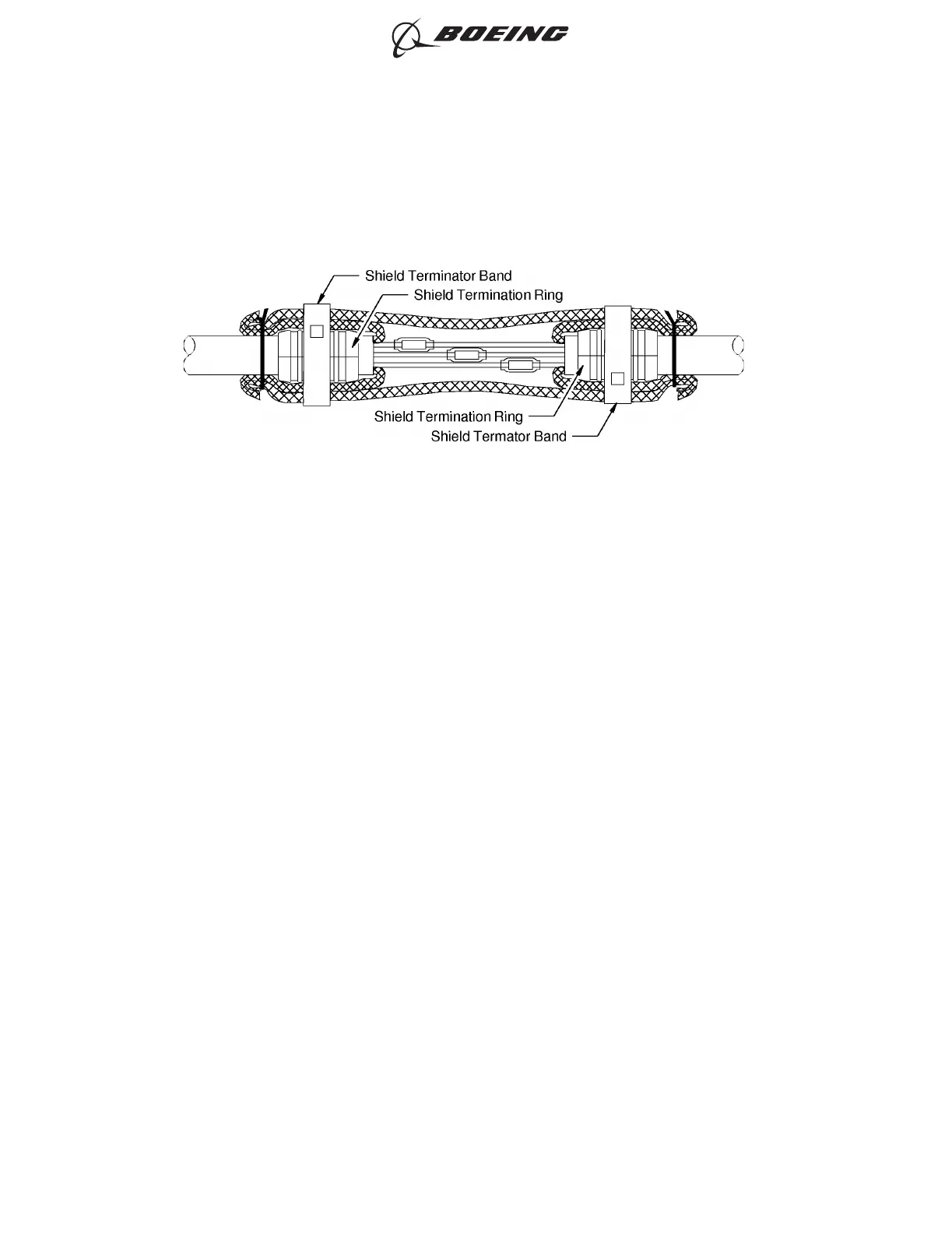

POSITION OF THE SHIELD TERMINATION BANDS ON THE SHIELDS
Figure 244
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 277
Jun 15/2021D6-54446
