(a) Cut one end the splice with a saw at the mold line of the crimp next to the insulation grip
barrel.
(b) Cut the remaining insulation grip barrel of the splice.
CAUTION
MAKE SURE TO PREVENT DAMAGE TO:
• THE INDIVIDUAL STRANDS OF THE CONDUCTOR
• THE REMAINING WIRE INSULATION.
(c) Remove the barrel from the wire.
(3) Do Step 5.B.(2) again for the other end of the splice.

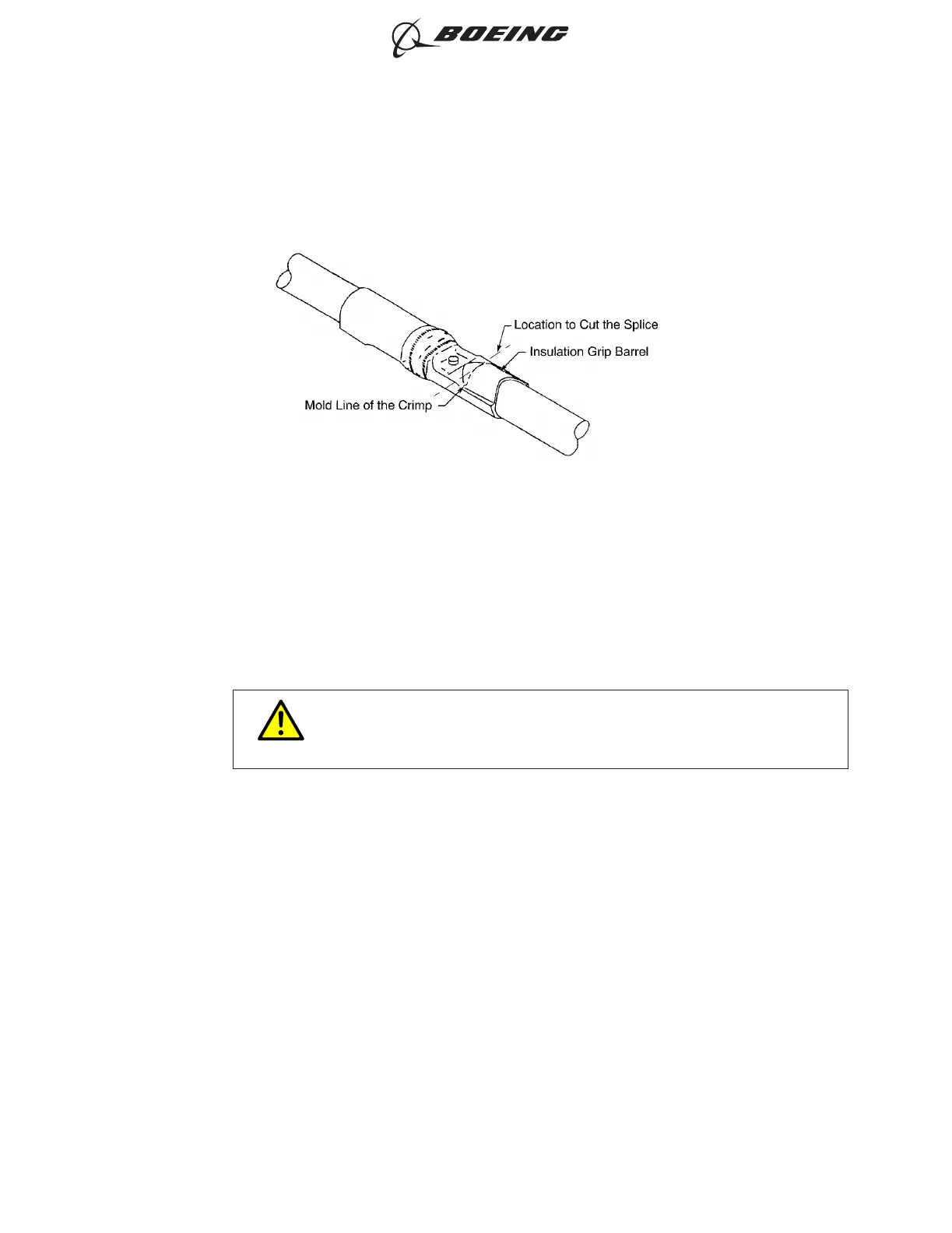

LOCATION TO CUT THE SPLICE
Figure 28
