CAUTION
THE INSERTION TOOL MUST STAY PARALLEL WITH THE PIN SO THAT
DAMAGE TO THE PIN OR THE RECEPTACLE DOES NOT OCCUR.
(7) Push the heat shrinkable sleeve forward so that the both ends of the sleeve make an overlap with
both ends of the receptacle.
(8) Shrink the sleeve into position. Refer to Subject 20-10-14.

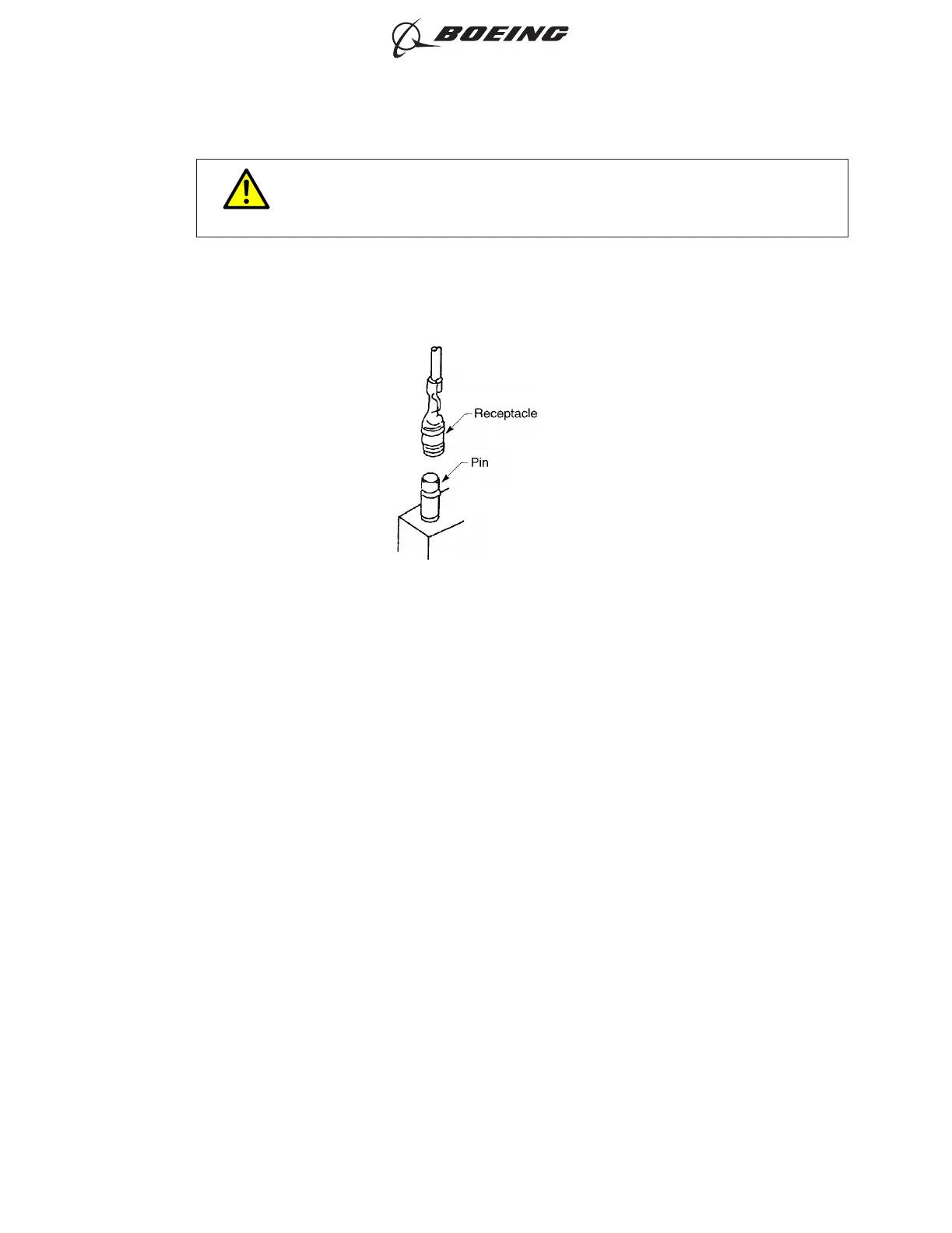

POSITION OF THE RECEPTACLE IN RELATION TO THE PIN
Figure 3
AMP PRINTED CIRCUIT BOARD TERMINAL RECEPTACLES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-17
Page 6
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
