This Subject gives the procedures to assemble BACS52R Shielded Splices.
1. PART NUMBERS AND DESCRIPTION
A. Splice Kit Part Numbers
B. Splice Kit Component Part Numbers
Table 1
SPLICE KIT COMPONENT PART NUMBERS
Splice Kit Component
Type Part Number Quantity
BACS52R1T1
Conductor Splice BACS52K1 1
Seal Sleeve BACS13CM2 1
Solder Shield Splice Sleeve BACS13DF1 1
BACS52R1T2
Conductor Splice BACS52K1 2
Seal Sleeve BACS13CM1 2
Solder Shield Splice Sleeve BACS13DF4 1
2449458 S00061545701_V1

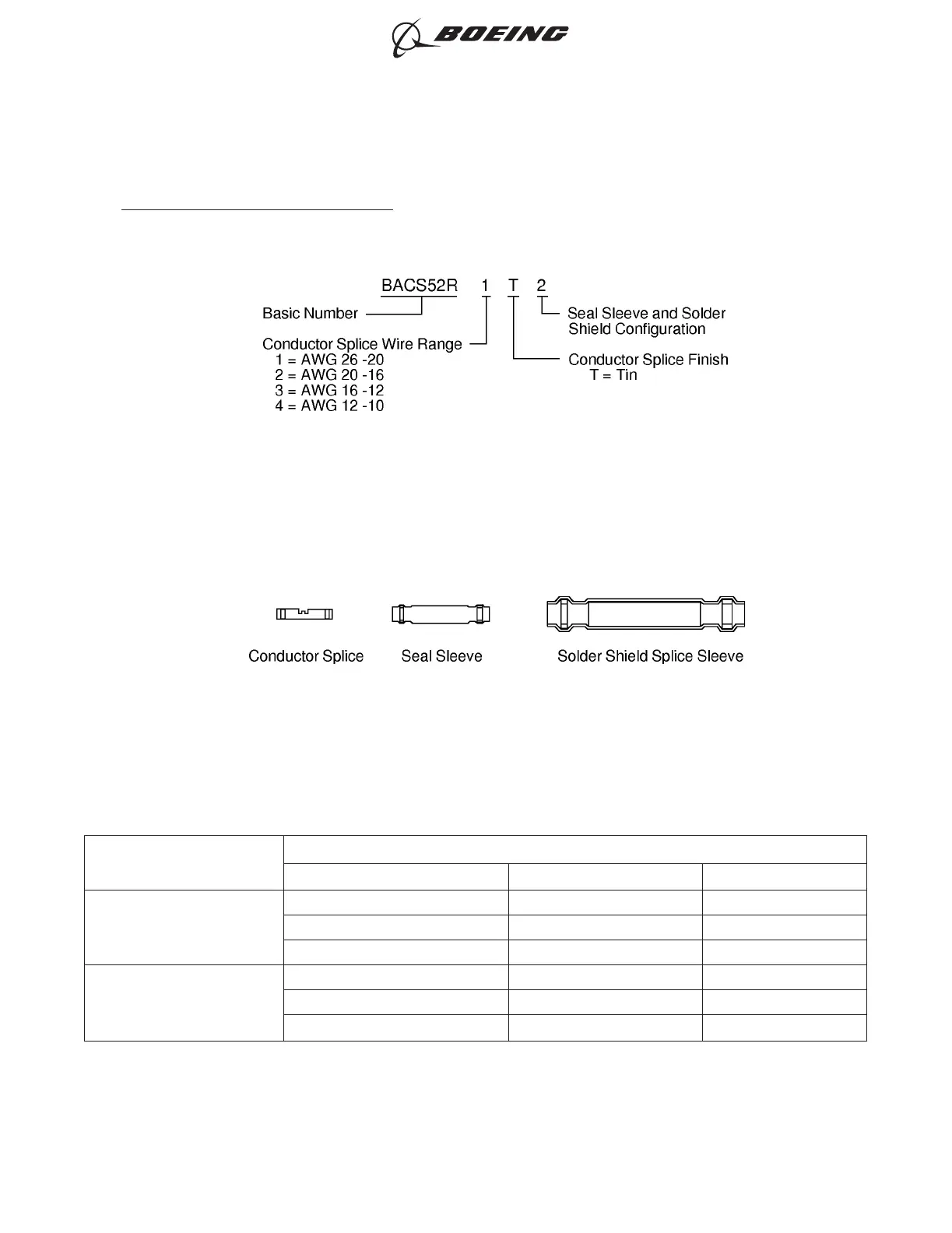

BACS52R SHIELDED SPLICE PART NUMBER STRUCTURE
Figure 1
2449459 S00061545702_V1
SHIELDED SPLICE KIT COMPONENTS
Figure 2
ASSEMBLY OF BACS52R SHIELDED SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-19
Page 2
Oct 15/2015D6-54446
