Boeing 707 - Page 683

2450224 S00061545713_V1

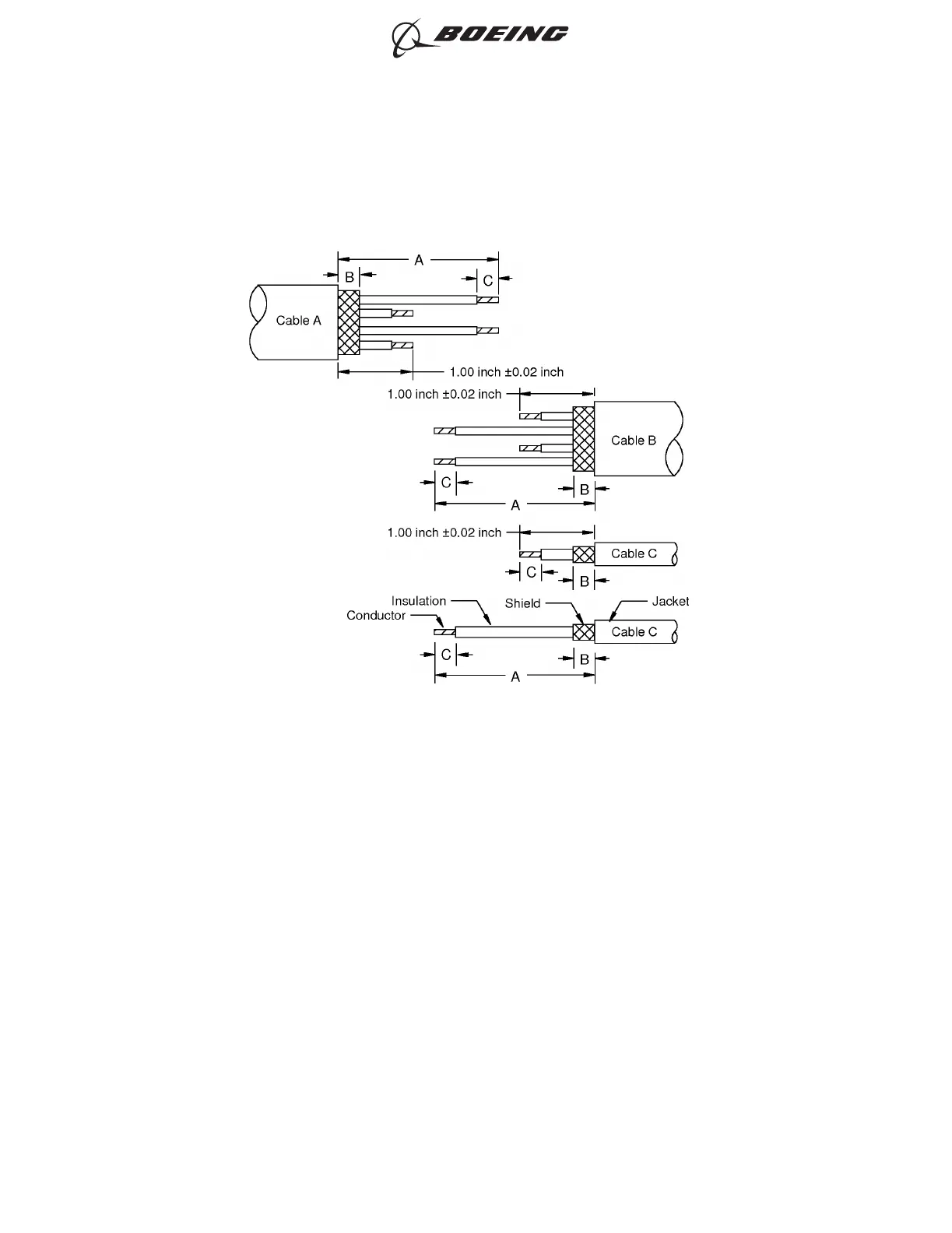

CABLE PREPARATION - 1 CABLE, 4 CONDUCTORS TO 1 CABLE, 4 CONDUCTORS AND 1 CABLE, 1
CONDUCTOR
Figure 13
ASSEMBLY OF BACS52R SHIELDED SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-19
Page 17
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
