For the cable preparation dimensions, refer to Table 7.

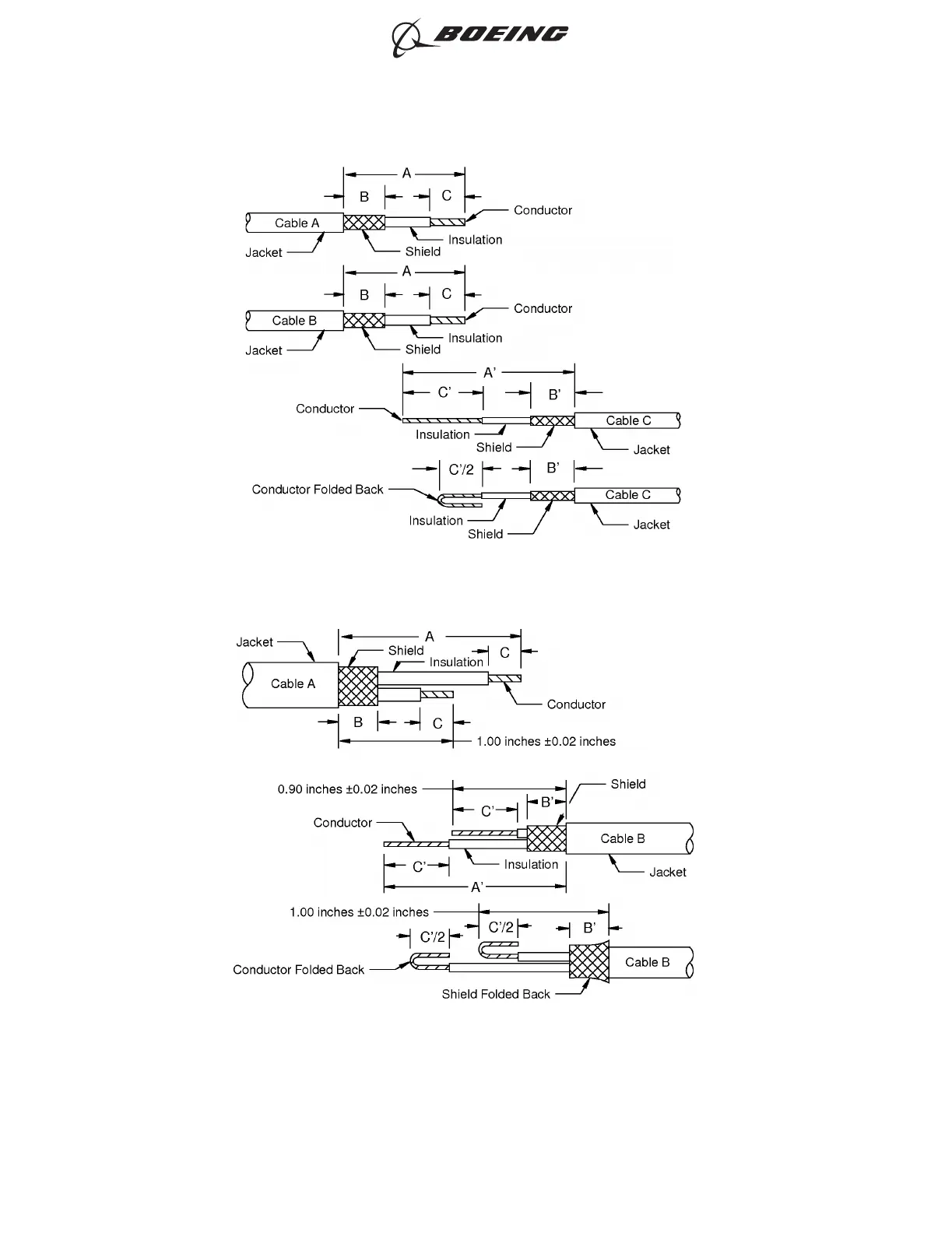

CABLE PREPARATION - 2 CLASS 1 CABLES TO 1 CLASS 1 CABLE
Figure 22
CABLE PREPARATION - 2 CLASS 2 CABLES TO 2 CLASS 2 CABLES
Figure 23
ASSEMBLY OF BACS52R SHIELDED SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-19
Page 29
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
