F. Kit Group T1( ) 2, T2( ) 2 or T3( ) 2 - One Class 2 Cable to One Class 2 Cable and One Class 1
Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

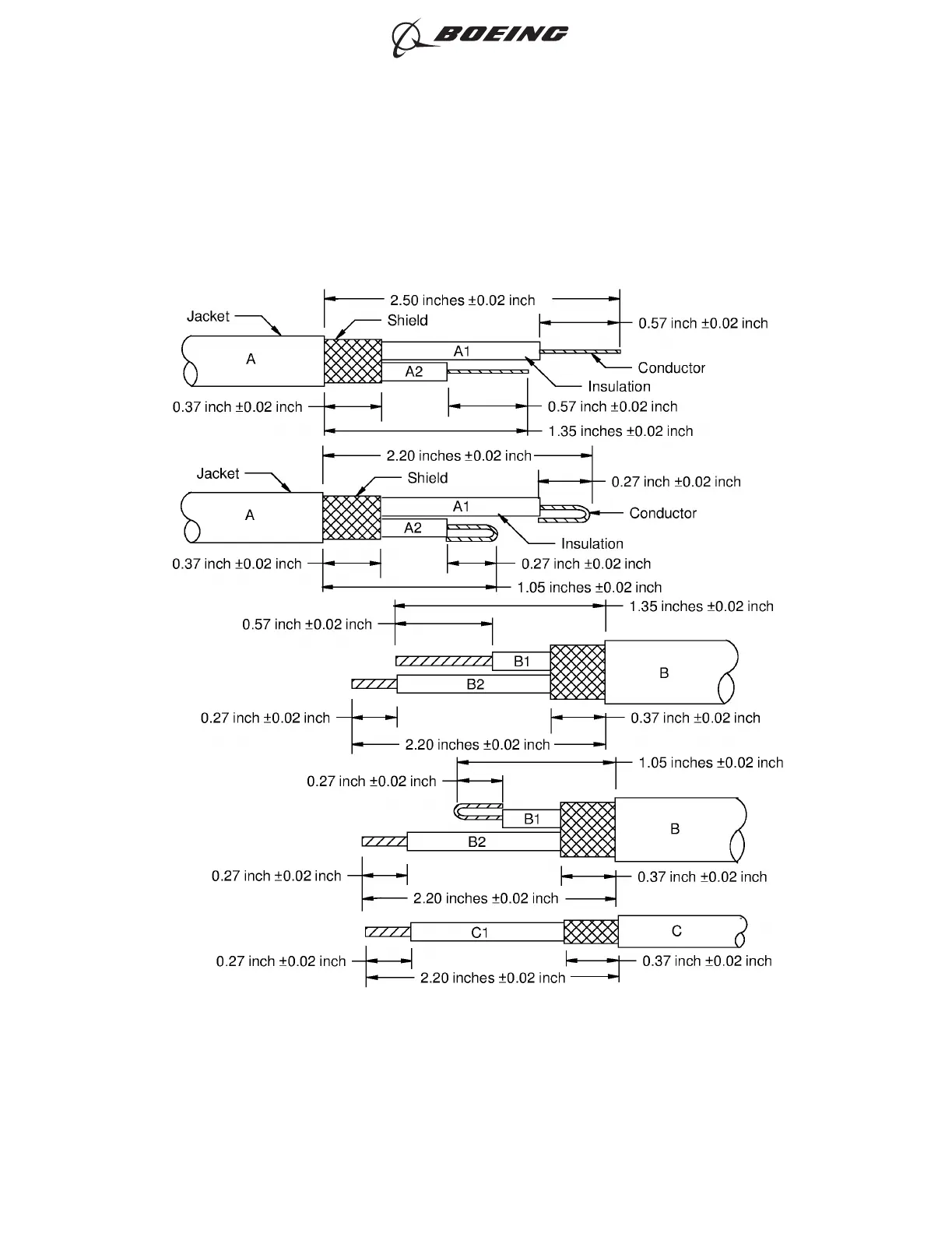

ONE CLASS 2 CABLE TO ONE CLASS 2 CABLE AND ONE CLASS ONE CABLE
Figure 34
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 87
Oct 15/2020D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
