EDIUS — User Reference Guide 209
Capturing from a DV or HDV Device

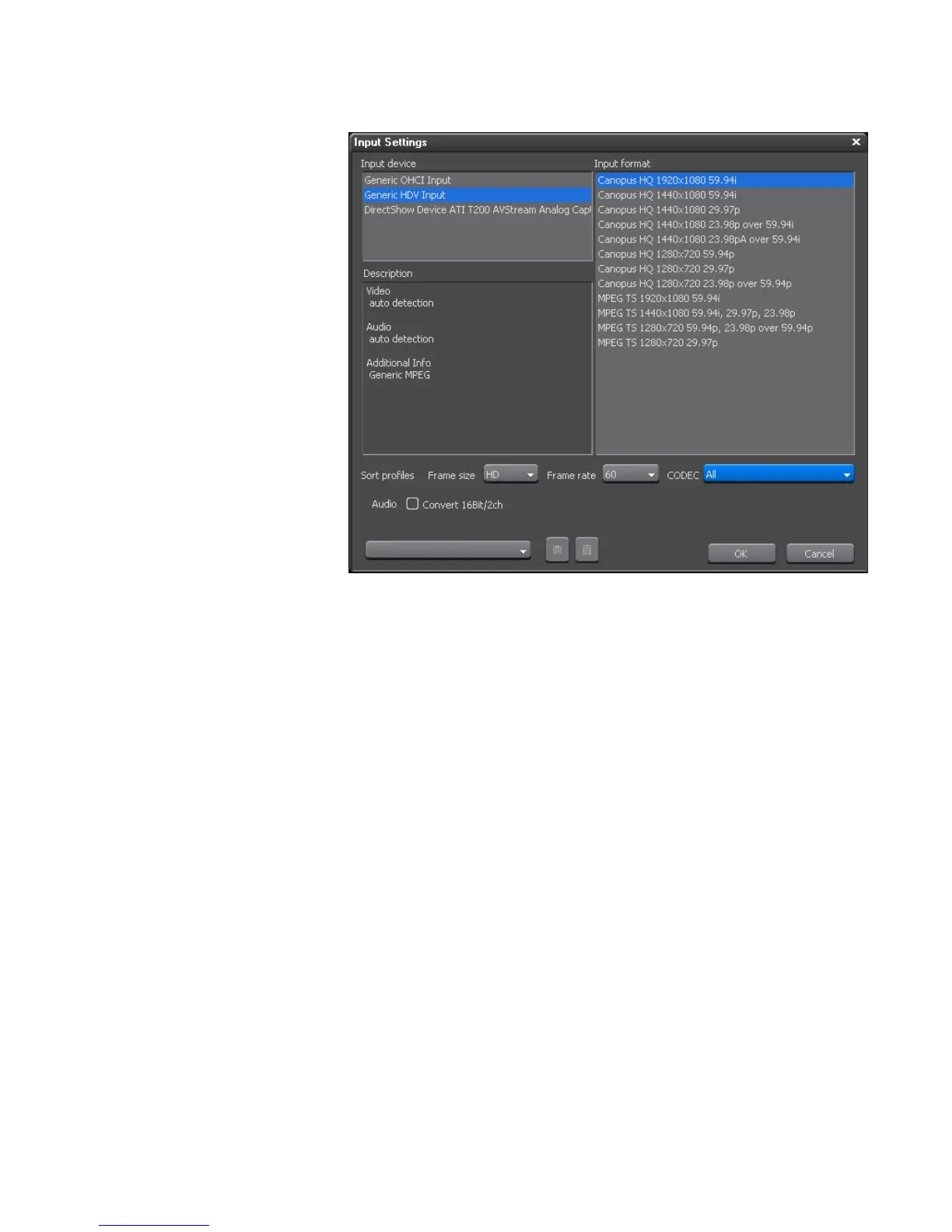

Figure 182. Input Settings Dialog
Any attached devices which EDIUS supports are listed in the “Input
Device” section of the dialog.
2. Select Generic OHCI or Generic HDV Input from the list of Input
Devices.
3. Select the desired input format from the list in the “Input Format”
section of the dialog.
Note The list of input formats varies depending on the selected codec and the “sort
profiles” settings. In Figure 182, all available HD/60 Hz input formats are
listed because the CODEC selection has been set to “All”, Frame size to “HD”
and Frame rate to “60.” See Sorting Input Formats on page 216 for more
information on how to use these settings.
4. Select the “Convert 16Bit/2ch” option if you wish to convert the source
audio to 16-bit, 2-channel audio as it is captured. Default = Not
Checked.
5. Click the OK button to save the current settings and close the dialog.
Note Depending on the settings in the Capture Settings dialog, the ReelName or
Input Capture File dialogs may appear when the OK button is clicked. See
Setting Reel Name on page 211 and Confirming File Capture Settings on
page 213 for more information.
