EDIUS — User Reference Guide 397
Trim ming Clip s

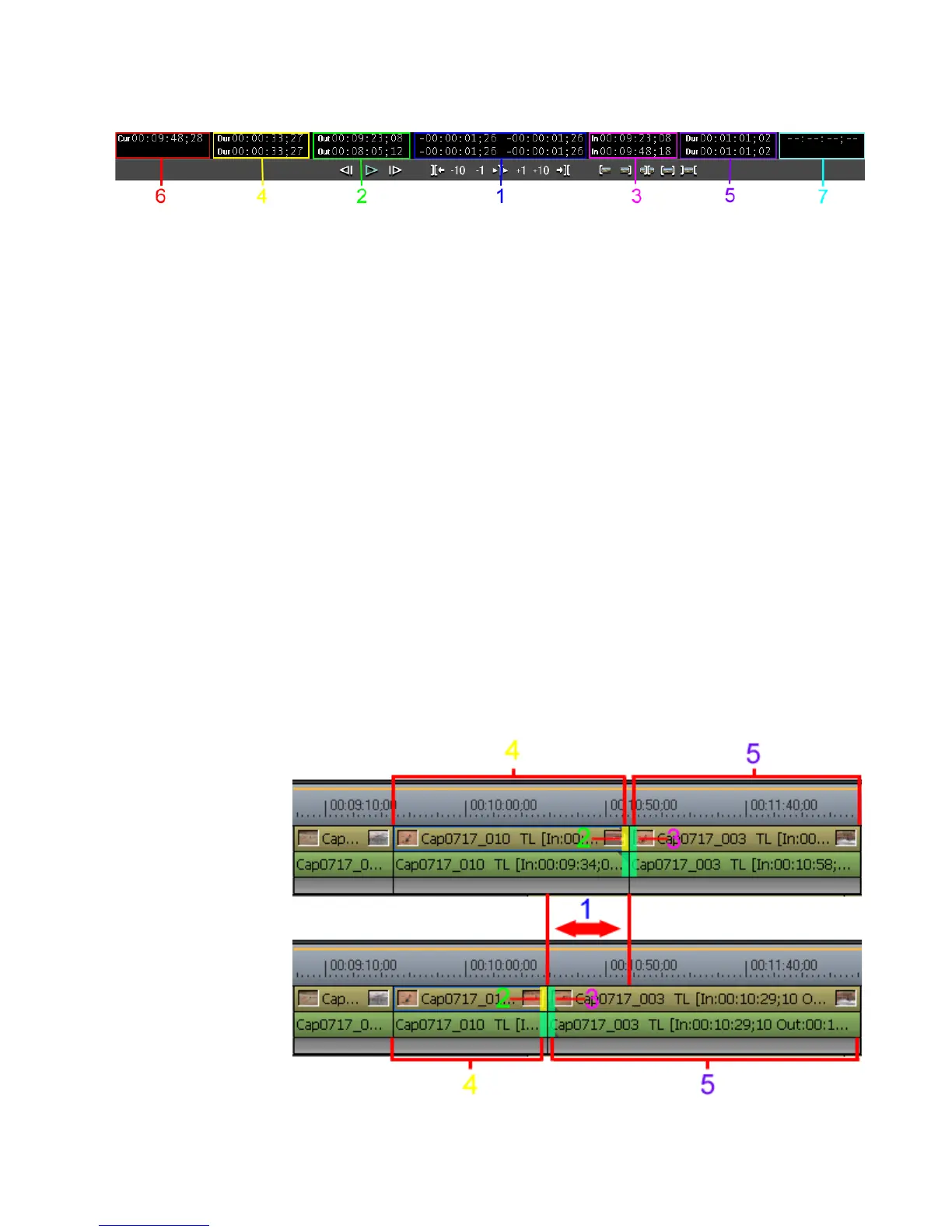

Figure 435. Trim Window Timecodes
The upper level timecodes are the sequence timecodes and the lower level
contains the clip timecodes. Trimming can be performed by entering time-
codes in either level.
1 - Frame timecode with focused cut point moved
2 - Timeline timecode of the focused cut point - Out point side of the clip.
3 - Timeline timecode of the focused cut point - In point side of the clip.
4 - The length of the clip to be trimmed - Out point side of the clip.
5 - The length of the clip to be trimmed - In point side of the clip.
6 - Timeline code of the Timeline cursor.
7 - The length of the Transition/audio cross fade to be trimmed.
Note The timecodes displayed may differ from the above depending upon the
Preview window view mode and size of the Preview window.
The example in Figure 436 shows the timecodes as explained in Figure 435.
Figure 436. Slide Trimming Timecodes
