GRASS VALLEY EDIUS VERSION 5.1 User Manual

EDIUS — User Reference Guide 49
Start-Up Window

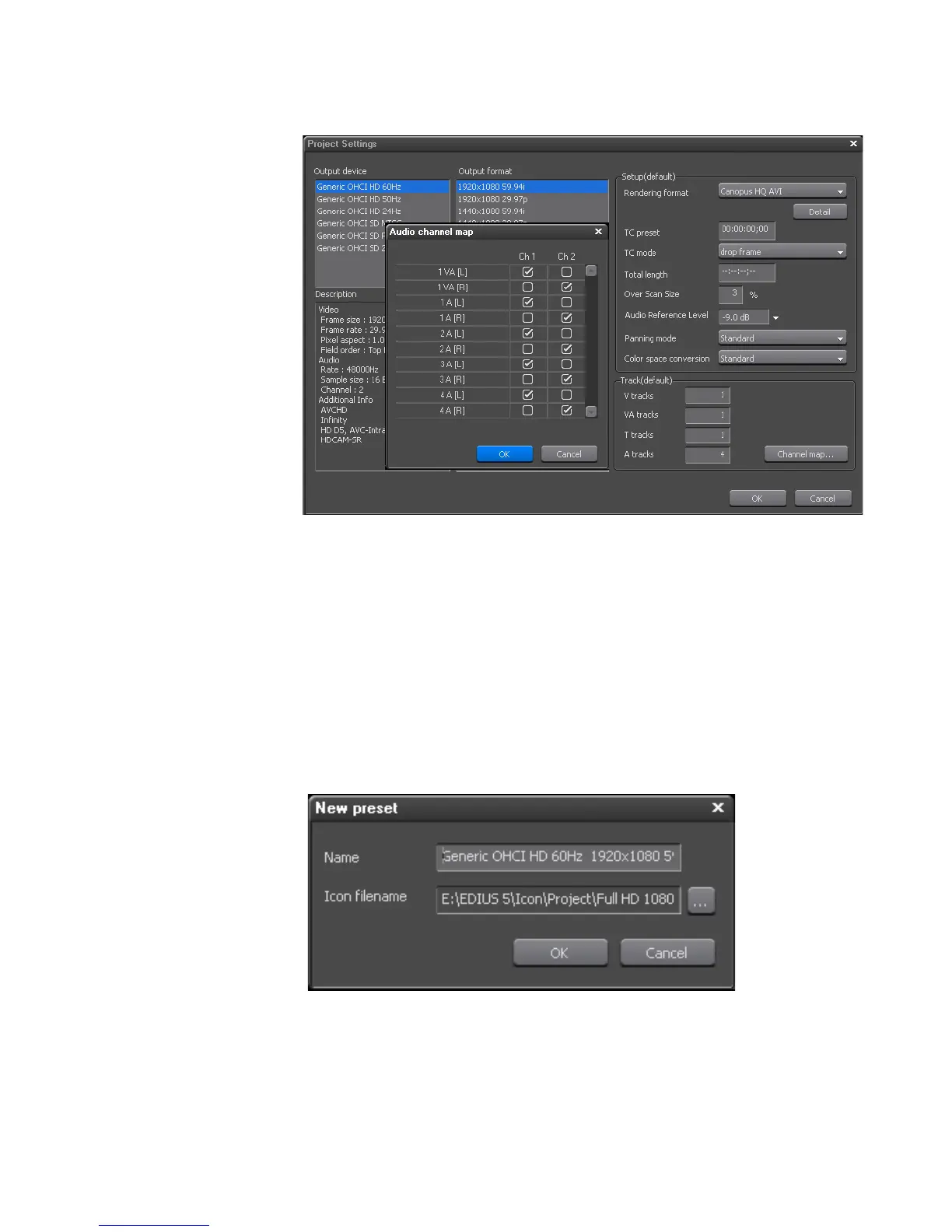

Figure 27. Audio Channel Map
15. Select the desired output channels for each track. Click the OK button
when finished.
Note Two (2) channels maximum can be output from one track. The number and
types of tracks displayed may vary depending on the Track settings specified
in Step 13.
16. Click the OK button to close the Project Settings dialog box.
The project preset name dialog shown in Figure 28 appears.
Figure 28. Project Preset Name
17. If you wish to accept the default project preset name and icon, proceed
to Step 21.
18. If you wish to change the name, enter a new name.

GRASS VALLEY EDIUS VERSION 5.1 Specifications

General

Brand	GRASS VALLEY
Model	EDIUS VERSION 5.1
Category	Software
Language	English
