EDIUS — User Reference Guide
Section 6 — Effects and T
itles

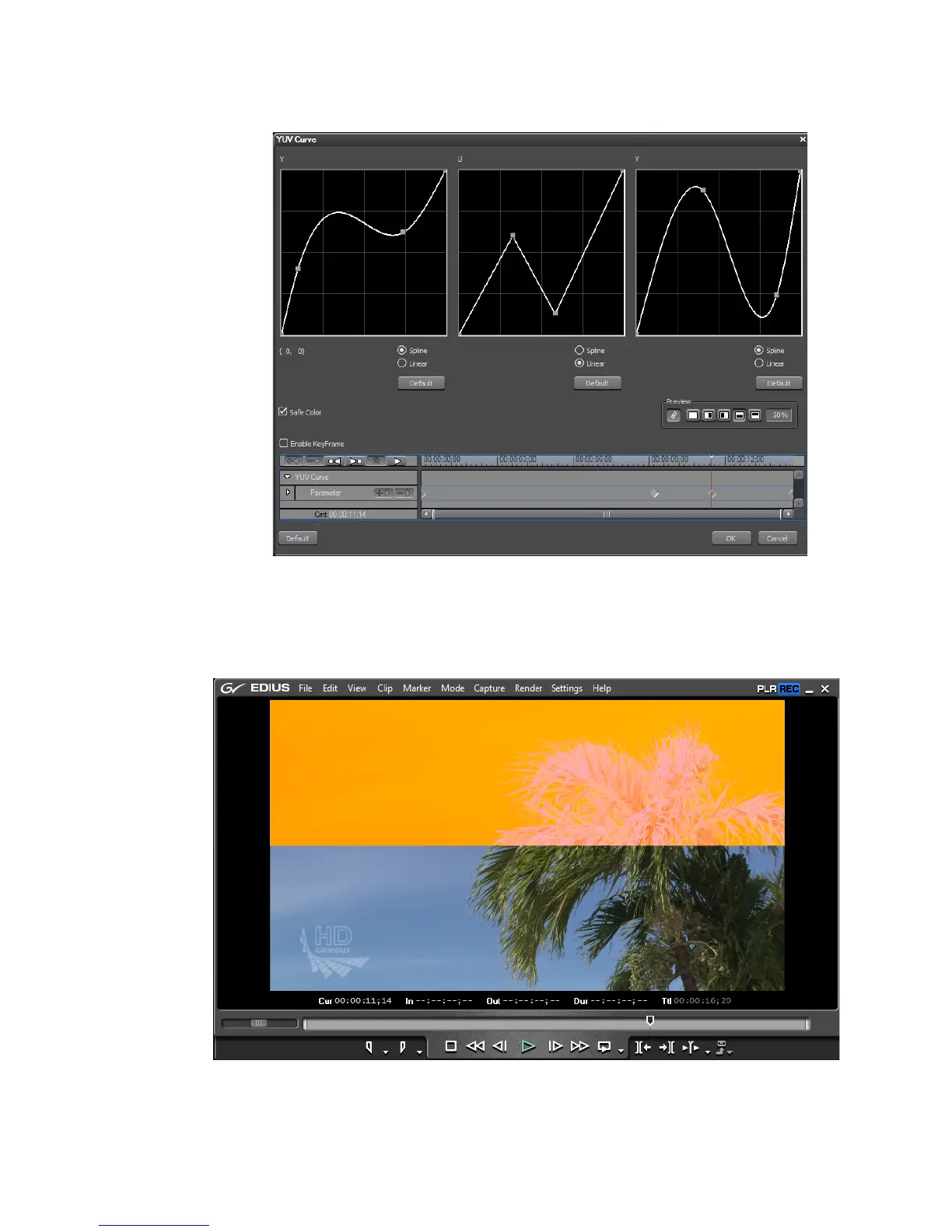

Figure 561. YUV Curve Filter and Preview Settings
The settings in the YUV Curve
dialog
above result
in the preview display
shown below
.
Figure 562. YUV Filter Preview
