540 EDIUS — User Reference Guide
Section 6 — Effects and Titles

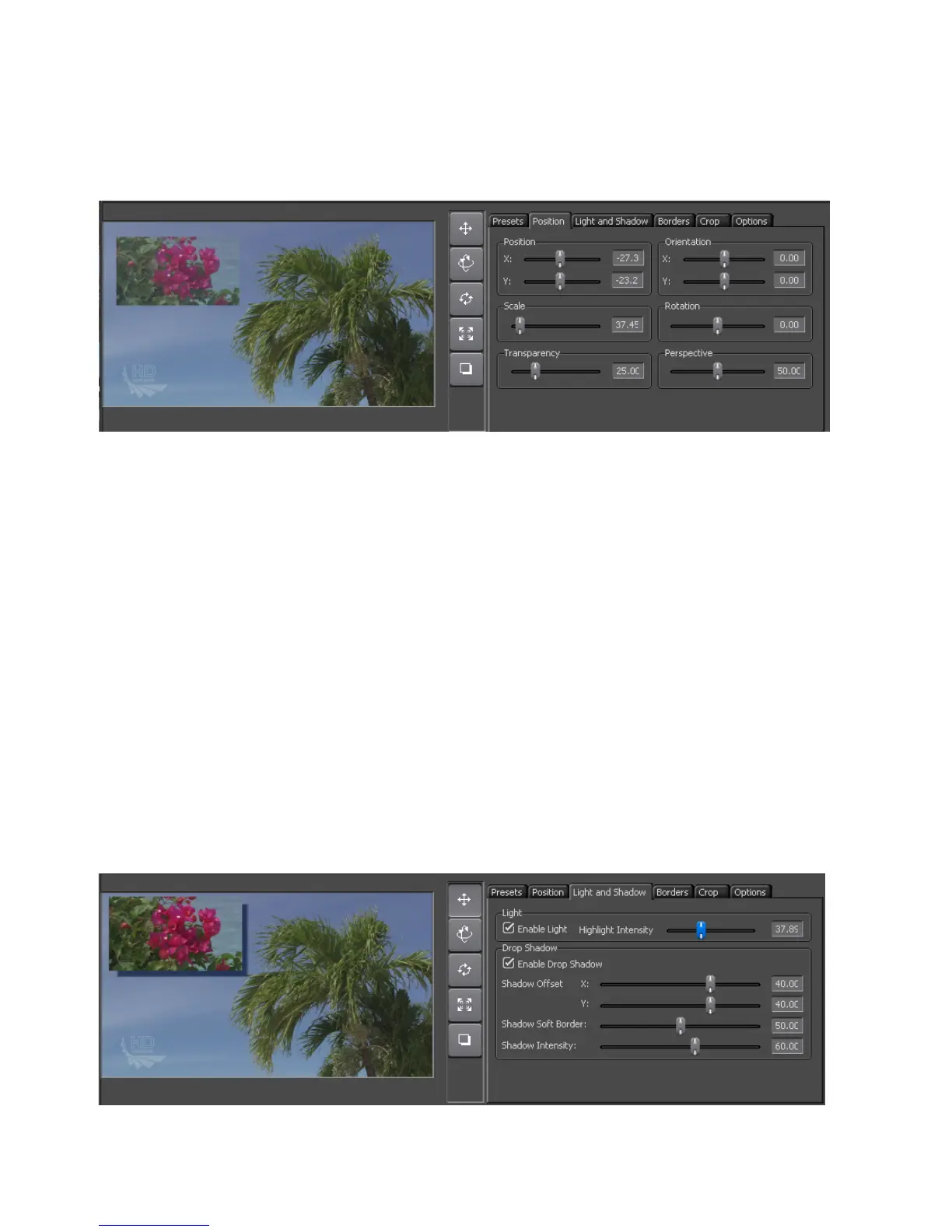

Figure Figure 622 shows some sample position settings and results in the
Preview window.
Figure 622. 3D Picture in Picture Position Tab
Note Size and Position parameters may also be set using the edit buttons. See Edit
Buttons on page 536 for more information.
Light and Shadow Tab
Select the “Enable Light” option to add a light reflection effect during
overlay window rotation motions.
If the light effect is enabled, set the light intensity with the slider or by direct
numeric input
Select the “Enable Drop Shadow” option to add a shadow to the overlay
window.
If drop shadow is enabled, use the sliders or direct numeric entry to set the
shadow offset and intensity parameters.
Figure Figure 623 shows some sample light and shadow settings and
results in the Preview window.
Figure 623. 3D Picture in Picture Light and Shadows Tab
