GRASS VALLEY EDIUS VERSION 5.1 User Manual

EDIUS — User Reference Guide 545
Creating Video Composites
4. Configure the effect settings per the explanations below and click the OK
button to close the dialog.
Display Switching
Select “Key Display” to display in black in the Recorder the parts of the
video that will be cut out based on the current color selection. See
Figure 631 for an example based on the eye dropper color selection of the
blue water in the background.

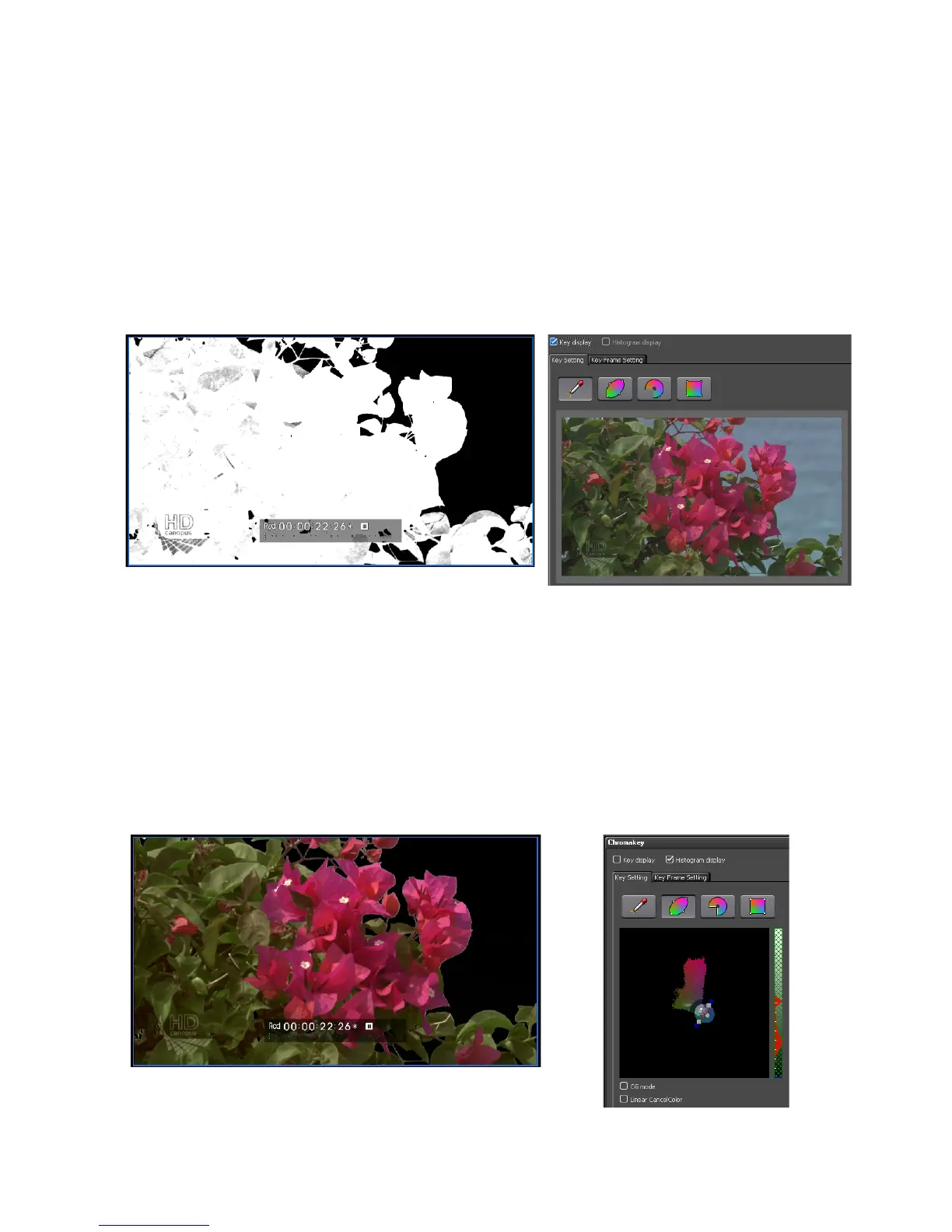

Figure 631. Chromakey Key Display
Select the ‘Histogram Display” option to display a histogram of the colors
that can be selected for elimination.
Note The Histogram Display option is not available with the eye dropper color
selector.
See Figure 632 for an example of a histogram display and color selection
with the color circle.
Figure 632. Chromakey Histogram Display and Color Selection
