iLand Landing System
3-3
3
iControl DC
Cartop Mounting
The iLand Compact landing system is usually mounted on a pedestal on the elevator cartop
such that the encoding wheel rides the center ridge of the hoistway rail. MCE offers a mounting
pedestal designed to work in most installations, which can be purchased separately (LS-PED-
ESTAL-BSE), or the pedestal may be provided by the installer. Typically, the iLand mounting
pedestal is bolted to the crosshead beams.
Positioning
Refer to the illustration below and to the accompanying instructions to ascertain how iLand
must be positioned and mounted on the cartop.

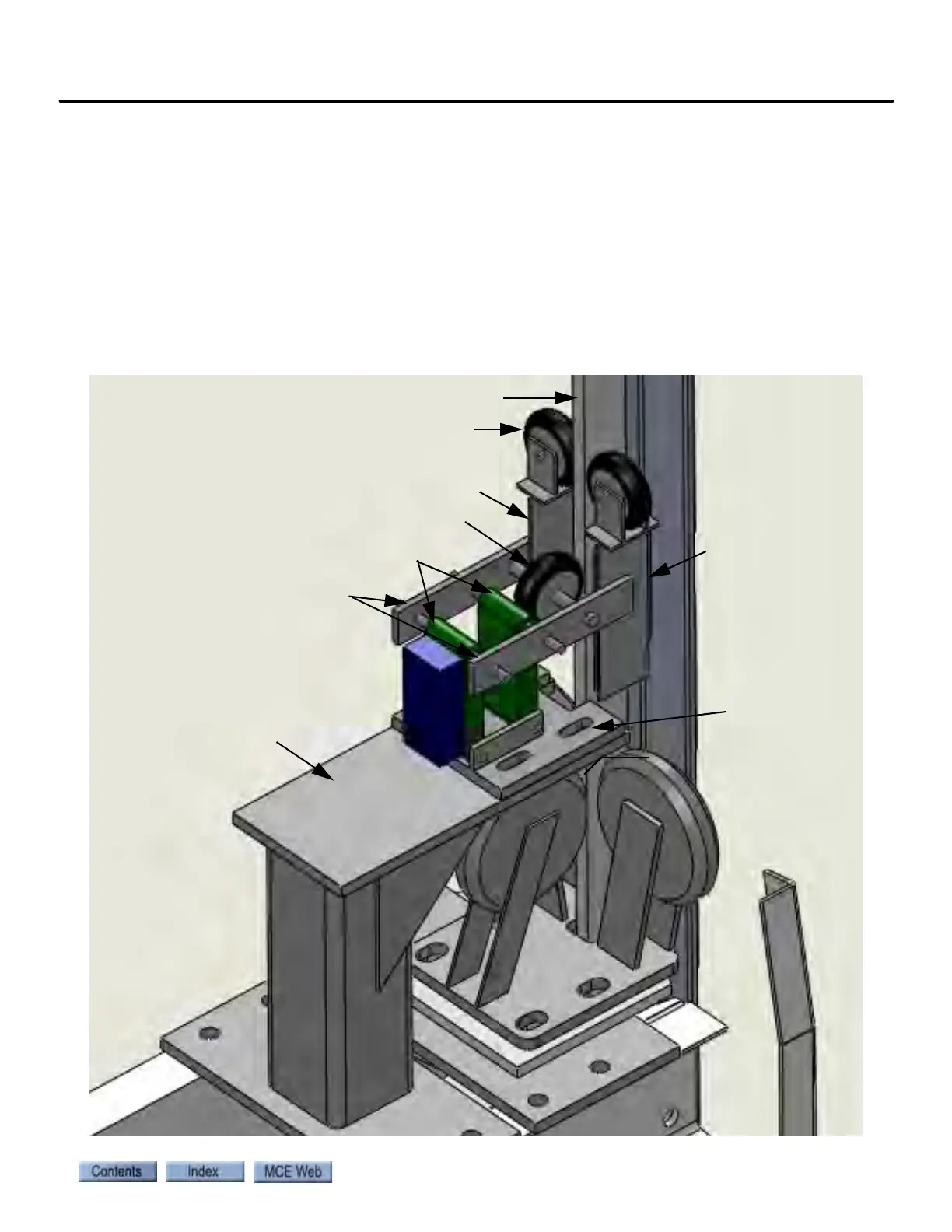

Figure 1. iLand Pedestal and Position on Cartop
Elevator Rail: Raised center ridge
Guide Wheels
Position Encoder Wheel
Mounting Pedestal
iLand Base
Parallel Arms
Carrier Arms
Front Door Leveling Sensors
Rear Door
Leveling Sensors
To Next Page
