Diagnostics Tabs
9-11
9
iControl DC

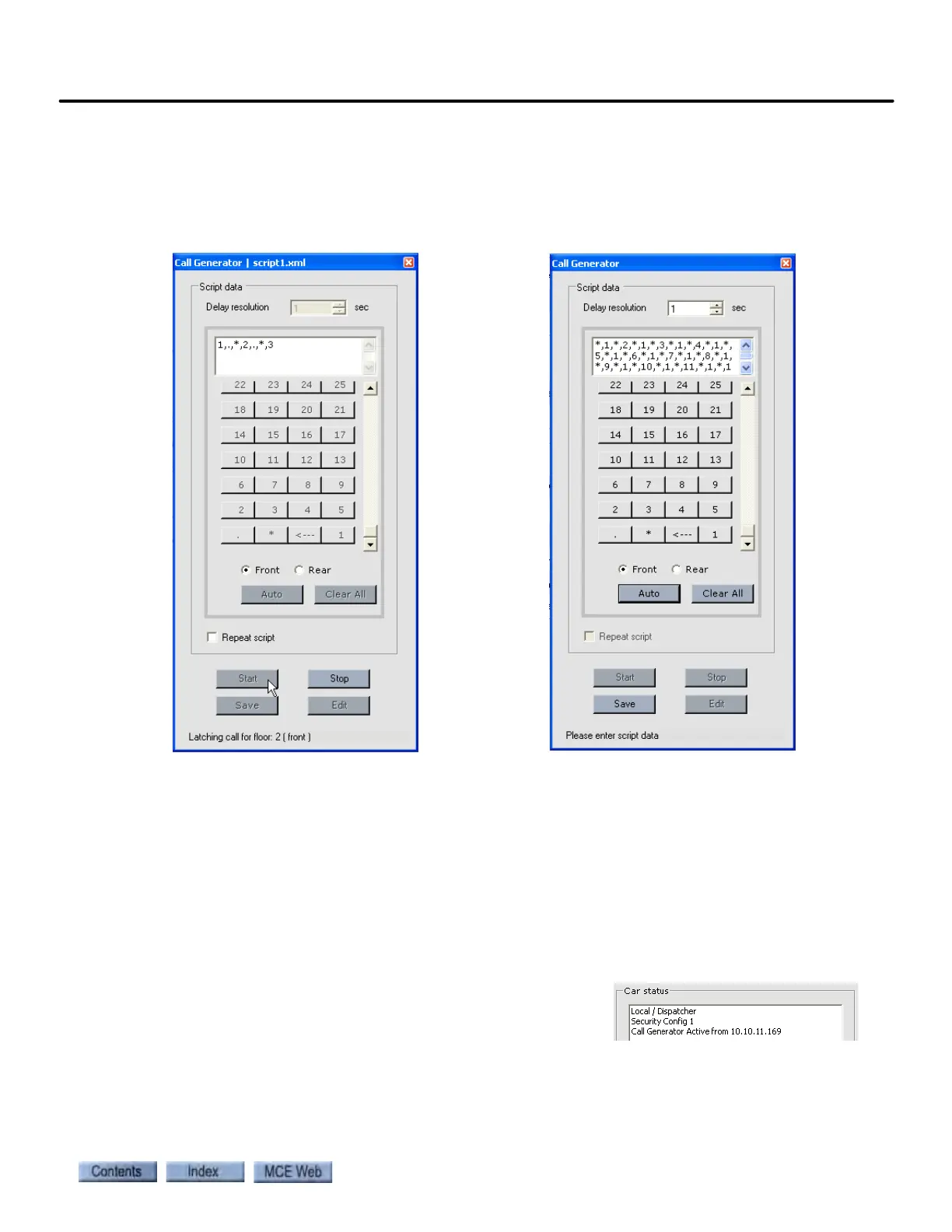

Diagnostics - Call Generator
The Call Generator can be used to diagnose problems or test the elevator. In addition, the Auto
button generates a script that includes all possible source to destination car calls so that the pre-
dictive gongs feature can learn the transit times.
Call Generator Options
• Delay resolution: Sets the time for the script to pause before entering the next car call.
• ‘.’ button: Enters the “delay” command into the script.
• ‘*’ button: Enters the “Wait for all car calls to be answered” command into the script.
• ‘<---’ button: Back space
• Auto button: Generates a script that includes all possible source to destination car calls.
• Clear All button: Clears all script entries.
• Repeat script: Repeats the script until the Stop button is pressed.
• Start button: Starts the script running. “Call Generator
Active from (address)” is displayed in Car Status. *
• Stop button: Stops the script.
• Save button: Saves the script.
• Edit button: Use to edit the script.
* Note: The Call Generator dialog’s title bar includes the name of the script and the status bar
(bottom) shows the step being executed, e.g., Latching call for floor: 2 (front).
Manually Entered Script
Auto Generated Script
