MCE iControl User Manual

Installing iLink
3-15
3
iControl DC
iLink Wiring

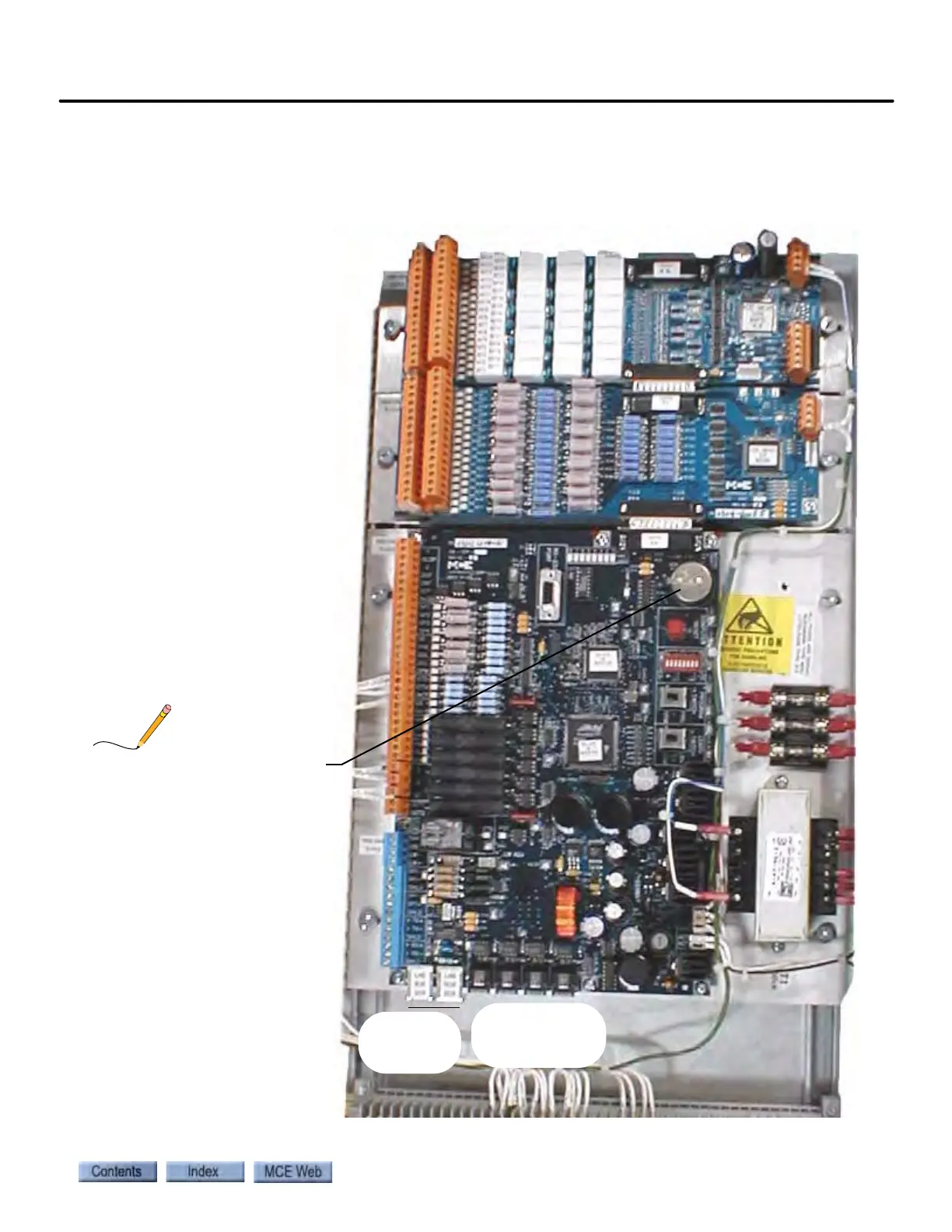

Like iControl, the iLink cartop box has an always-present, processor board (ICE-CTP) con-
nected through a pluggable bus to input (ICE-MIAC), output (ICE-MOR), and other optional
boards as required by the installation. A typical layout is shown below.
Connections for door operating
system, load weigher, etc.
Serial links to
Car Operating
Panels
iLand
Landing
System
ICE-MIAC: Programmable inputs
can be used for Car Operating
Panel and customer peripheral
equipment, etc.
ICE-MOR: Programmable outputs
can be used for Car Operating
Panel button lamps, buzzers,
chimes, peripherals, etc.
Note
The iLink microprocessor
board has battery backup
for logic retention. An
insulator prevents the
battery from discharging
during shipment. Remove
the insulator now if has
not already been done.
