Controller - Setup Tabs
9-169
9
iControl DC

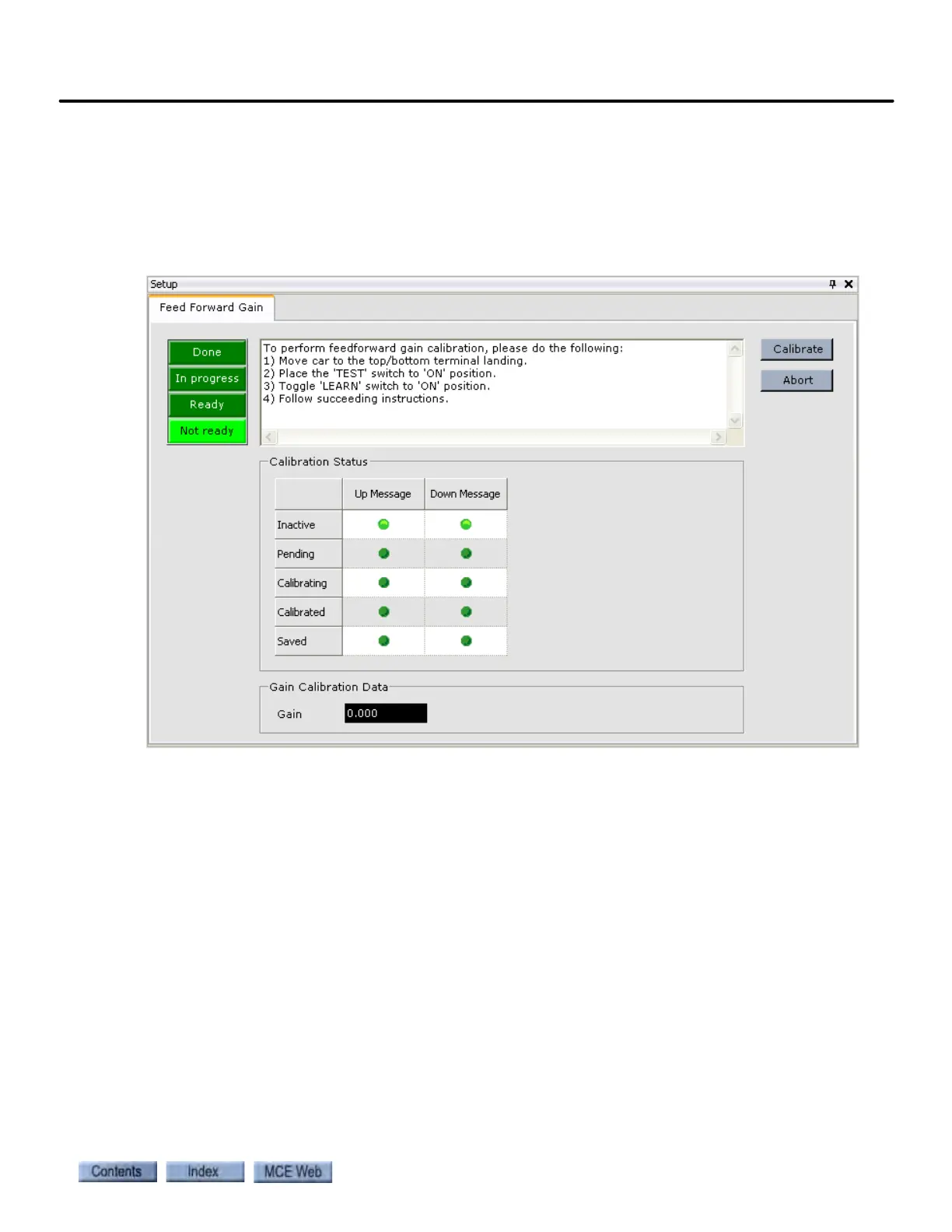

Setup - Feed Forward Gain Tab
Used to perform the Feed Forward Gain calibration (not applicable to Quattro DC Drive). This
calibration determines the baseline value for error compensation. The baseline value, in this
context, determines the minimum value for the Error compensation parameter (Configuration
> Drive > Control tab). Please refer to “Feed Forward Gain Calibration (System 12 SCR Drive)”
on page 4-16.
