System Options
5-52 Manual # 42-02-7223
EMCO Load Weigher
This instruction pertains to the installation and calibration of the Elevator Motors Corporation,
EMCO, Load Weigher. The following topics are covered.
• Installing the EMCO Load Cells (Sensors) (see page 5-53)
• Installing the EMCO Control Unit and connecting the wires (see page 5-54)
• Control Unit description of operation (see page 5-55)
• Load Weigher calibration procedure (page 5-56)
• Final calibration with iControl (see page 5-58)
• Installation with 2 to 1 roping (see page 5-59)
• Verifying the zero calibration (empty car weight) (see page 5-60)
• Troubleshooting (see page 5-60)
EMCO Load Weigher

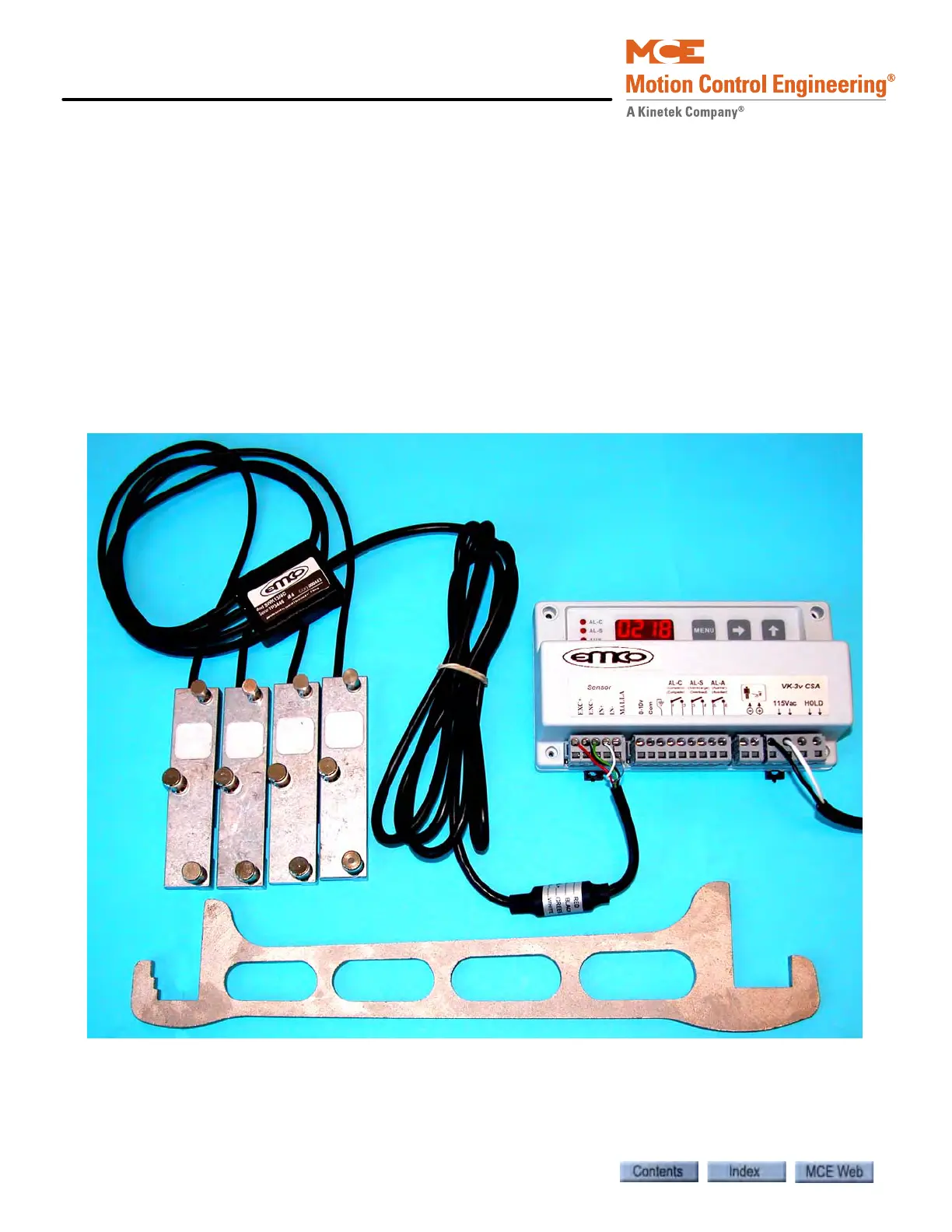

Components include:
- Control Unit, model VK-3V
- Load Cells, model SWK
- Sensor installation tool
- Terminal tool/key (not shown)
- Terminal cover plate (not shown)
- DIN rail mounting bracket (not shown)
