iView - Controller View
9-170 Manual # 42-02-7223

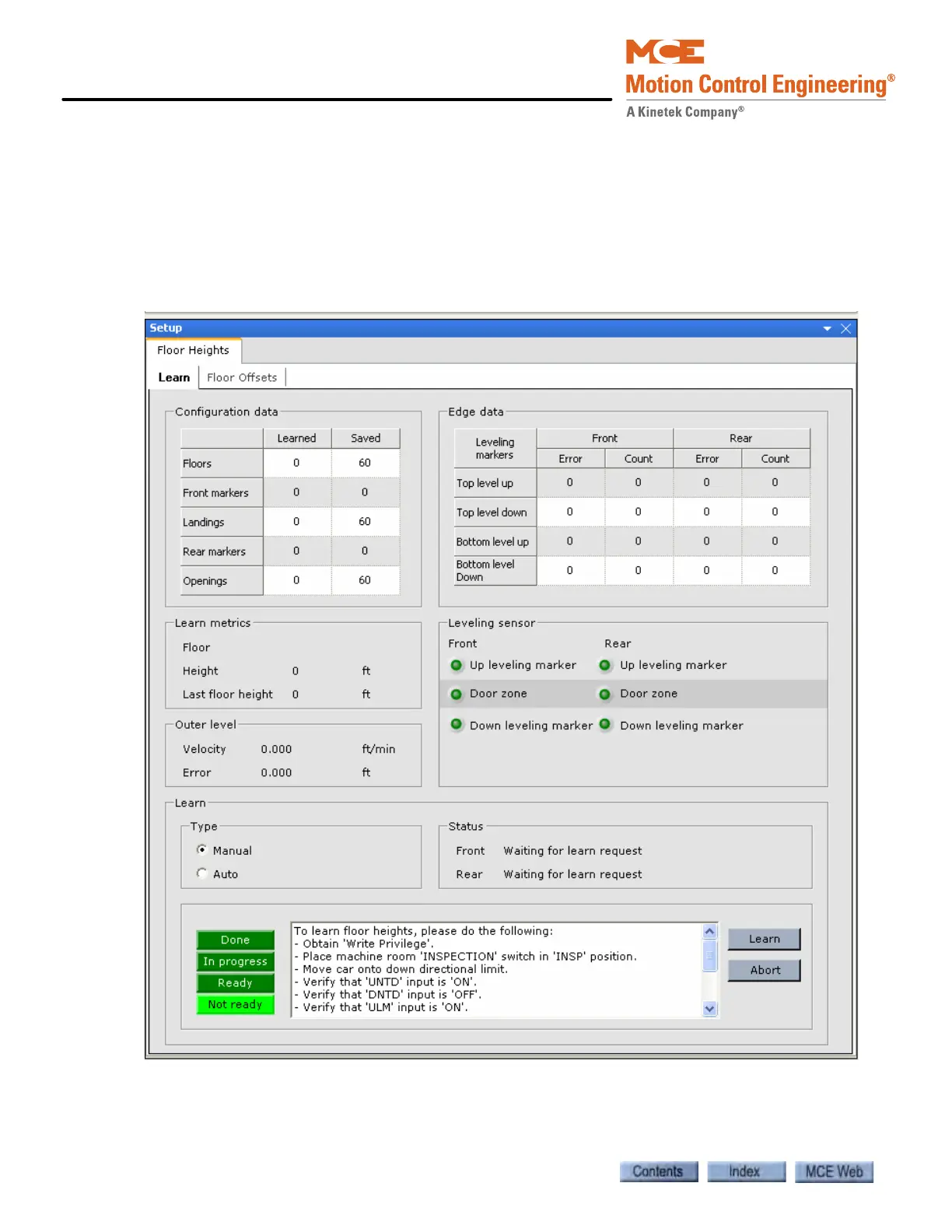

Setup - Floor Heights - Learn Tab
The Setup > Floor Heights > Learn tab is used to perform the Floor Heights Learn procedure.
Please refer to “Learning the Floor Heights” on page 4-2. When performing this procedure it is
best to use the Floor Heights layout (View > Layouts> Floor Heights) which displays both the
Floor heights setup and Floor Heights configuration tabs. While performing the learn proce-
dure, the current car position and speed can be viewed in the Hoistway window. The results of
this calibration can be viewed on the Configuration > Floor Heights > Configurations tab.
Please refer to “Configuration - Floor Heights” on page 9-116.
