LCD Display and Keypad

7-3

iControl DC

LCD Display and Keypad

The iBox LCD display and keypad allow you to:

• View and change parameter settings

• View and register calls

• View the status of inputs, outputs, and flags

• View error messages and the system event log

Typically, when you need to view or change parameters in an iControl, you connect to the iBox

through the PC or LAN ethernet port and use the iView graphical user interface running on a

Windows OS PC to easily access, view, or edit any desired parameter. However, during initial

system setup when setting the parameters that allow PC access to your system, or when a PC is

not available, some parameters can be directly accessed and edited through the keypad and

LCD display located on the front panel of every iBox.

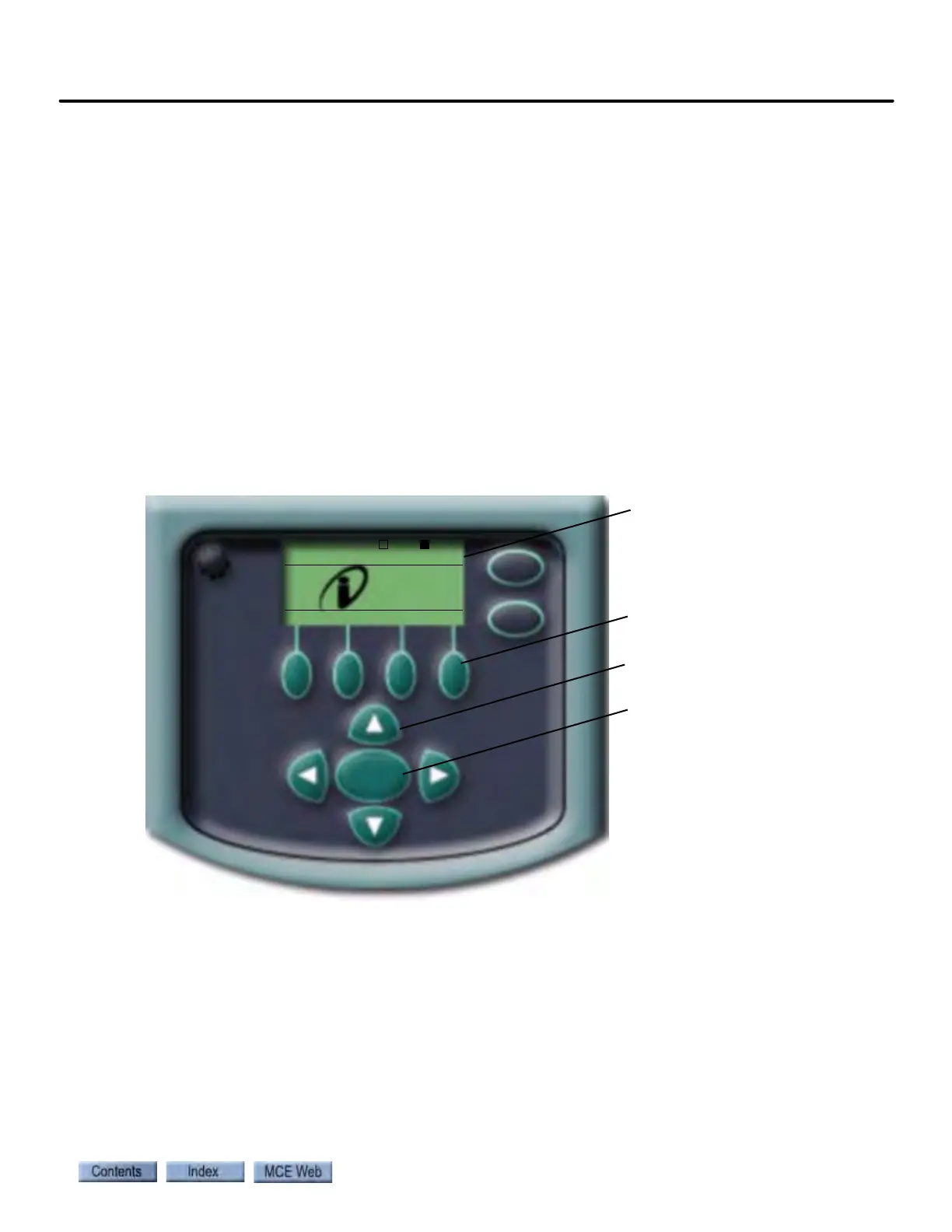

Figure 7.2 iBox Data Entry Keypad and LCD Display

@040 001 F R L01

Passenger

0fpm

6:15:09AM

11/30/2003

Car

LCD Display

Softkeys

Directional Arrows /

Value Incrementers

Select Parameter /

Enter Value

ENTER

1234

COMPUTER

RESET

FAULT
