iView - Controller View
9-20 Manual # 42-02-7223

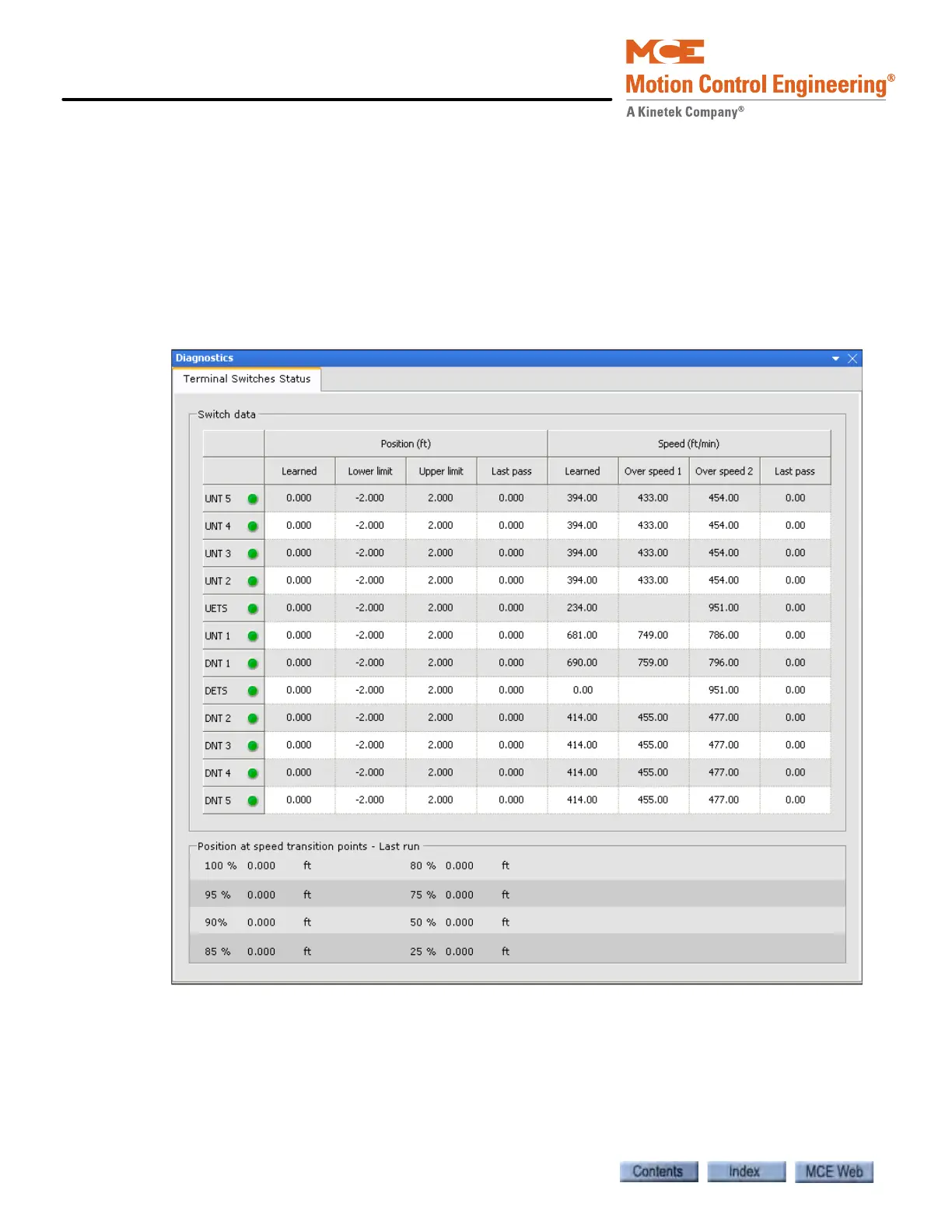

Diagnostics - Terminal Switches Status
The Terminal Switches Status shows information about the speed and position of the car when
each Normal Terminal Switch (U/DNT1 - U/DNT5) and Emergency Terminal Switch (U/DETS)
opened. The parameters are divided into the following groups:
• Switch data: U/DNT1 through U/DNT5: Speed and position parameters for Up and Down
Normal Terminal Switches 1 through 5. Also, U/DETS: Speed and position for the Emer-
gency Terminal Switches.
• Position at speed transition points - Last run: Car position at various speed transition
points during the last run.
