Configuration - Motor Field
9-151
9
iControl DC
Configuration - Motor Field
This tab allows you to view and set parameters relating to DC hoist motors (not applicable to
Quattro DC Drive).

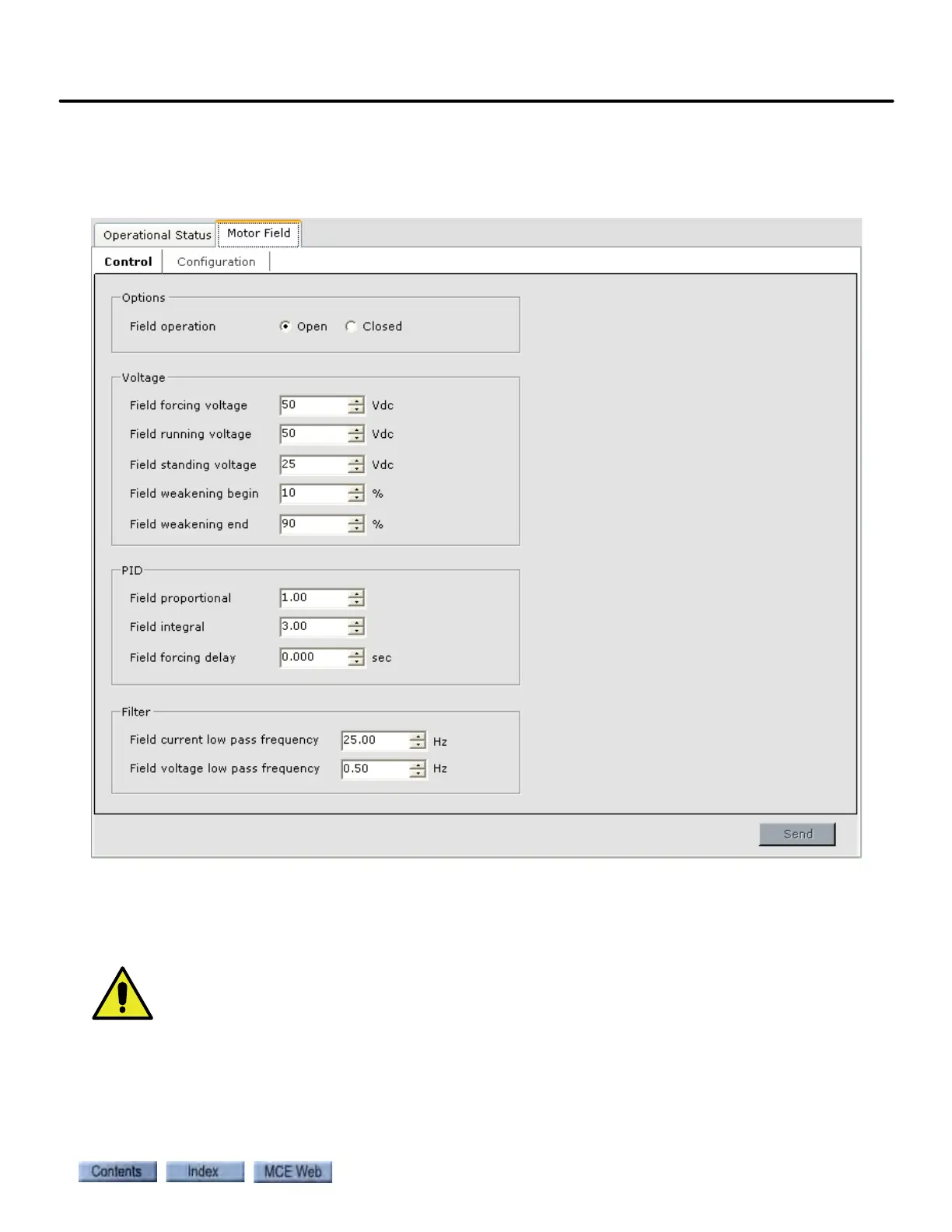

Control Tab - Options The control tab provides access to motor control settings.
• Field operation: Selects between open loop and closed loop motor field operation. Closed
loop uses current feedback in motor field control while open loop uses internal references.
Perform field calibration before setting Field Operation to closed loop (View > Layouts > Motor
Field). Please refer to “Motor Field Calibration Procedure” on page 2-53
