The model SWK sensors are installed using the tool supplied. In some instances it may be nec-
essary to extend the length of the handle to gain more leverage.
1. Typically the sensors are mounted
on the wire ropes directly above
the cartop hitch. However, with 2
to 1 roping the sensors must be
mounted below the dead-end hitch
beneath the overhead. Please refer
to “Installation with 2 to 1 Roping”
on page 5-59.

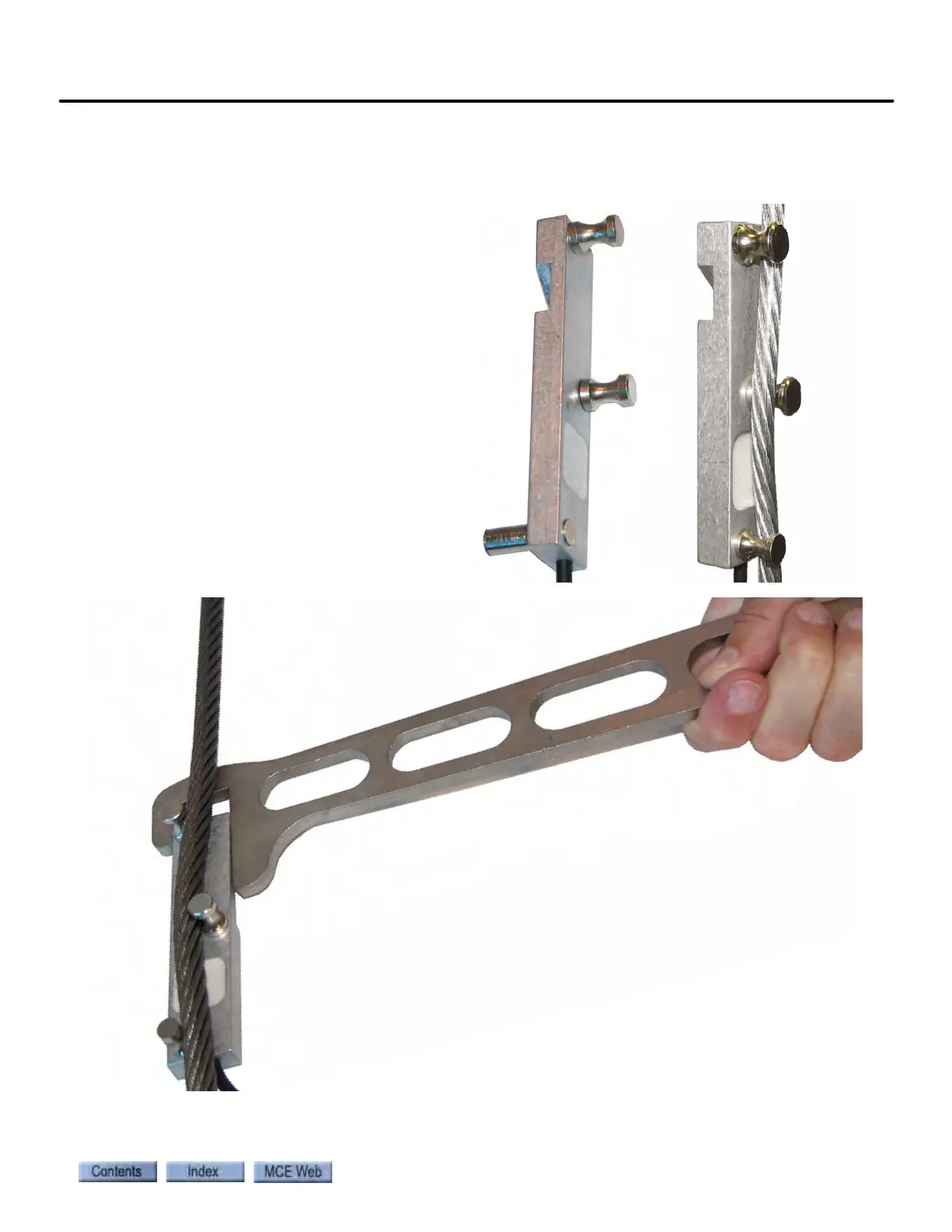

2. Notice that one of the sensor’s pins
moves in and out. Move the pin to
the in position as shown.
3. Place the sensor on the wire rope
and using the installation tool,
apply leverage to rotate the sensor
until the pin can be moved to the
out position as shown.
Pin
In
Out
Pin
Out
