Inspection Mode
3-14 Manual # 42-02-7223

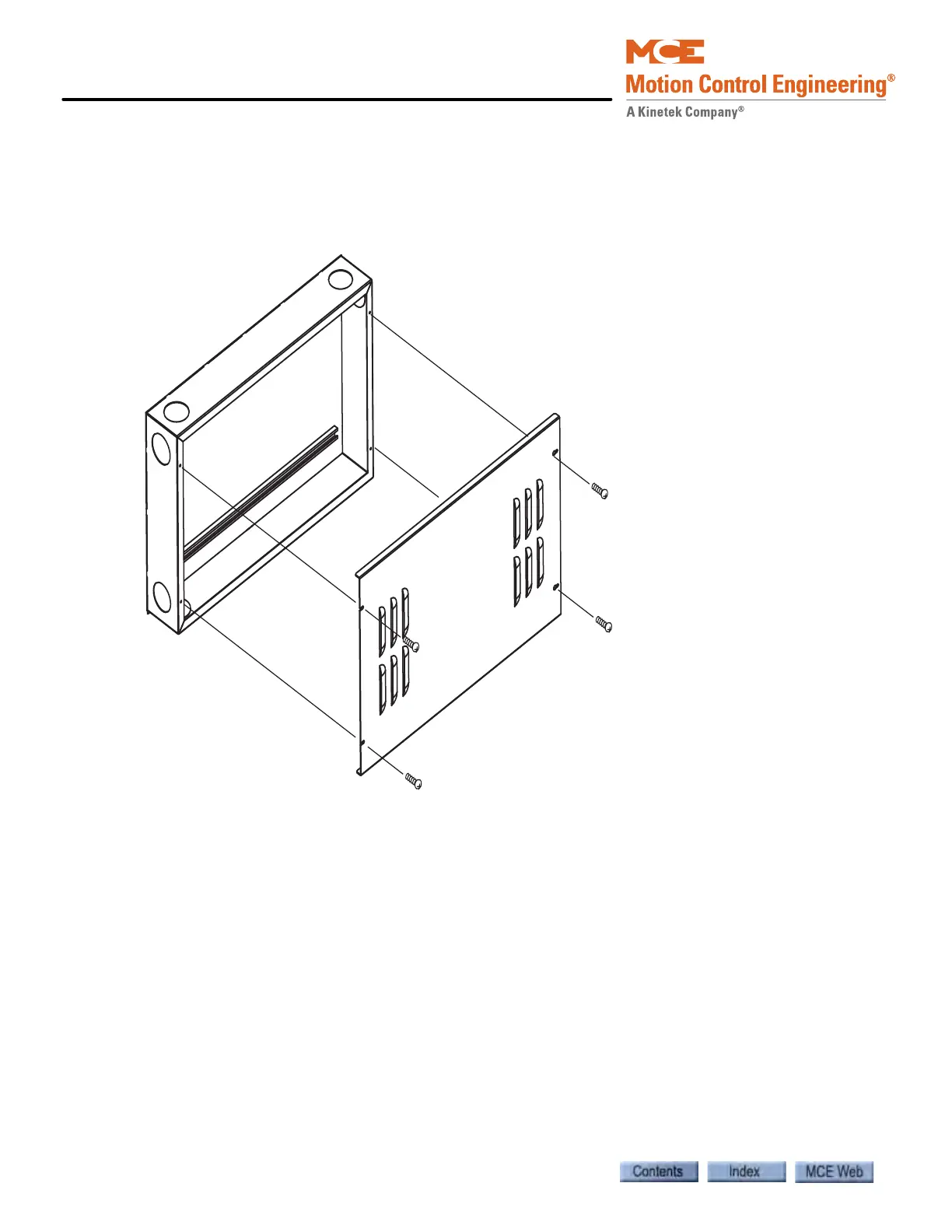

iLink Enclosure Installation
The iLink enclosure is typically mounted on the left side (as you face the car) of the cartop,
opposite the iLand system. The enclosure has several partially-punched knockouts to accom-
modate two-inch conduit connections. Mount the iLink enclosure on or between the crosshead
beams.
Vertical mounting, as shown, is preferred. Mounting the iLink horizontally is acceptable only if
it is well protected from metal filings or other debris that might accumulate and damage electri-
cal components. The dimensions of the iLink enclosure depend upon how many input and/or
output boards are required for a particular job.
