Inspection Mode
3-28 Manual # 42-02-7223
Prepare for Final Adjustments
This section describes preparation for final adjustment.
Door Operator
The door operator must be working properly before final adjustment.
1. Verify that the door fuses are properly installed.
2. Verify that the iBox Car Door Bypass and Hoistway Door Bypass switches are OFF.
3. Check that all door equipment clutches, rollers, etc. are properly adjusted to correct run-
ning clearances.
4. Check the controller prints to make sure any door operator diode installation instruc-
tions have been followed (especially for G.A.L. door operators).
5. Verify that all hoistway and car doors are closed and locked.
6. Run the car through the hoistway on inspection mode to make sure the hoistway is com-
pletely clear.
Counterweight Learn Procedure
This procedure allows the controller to learn the position in the hoistway at which the car and
counterweight are at the same height. It must be performed if the controller will be using Earth-
quake operation, and it is helpful for counterweight balancing and pre-torque gain adjustment.
1. Move the car until the car and the counterweight are at the same height in the hoistway.
2. Place the iBox Inspection switch in the INSP position.
3. Place the iBox Learn switch in the ON position.

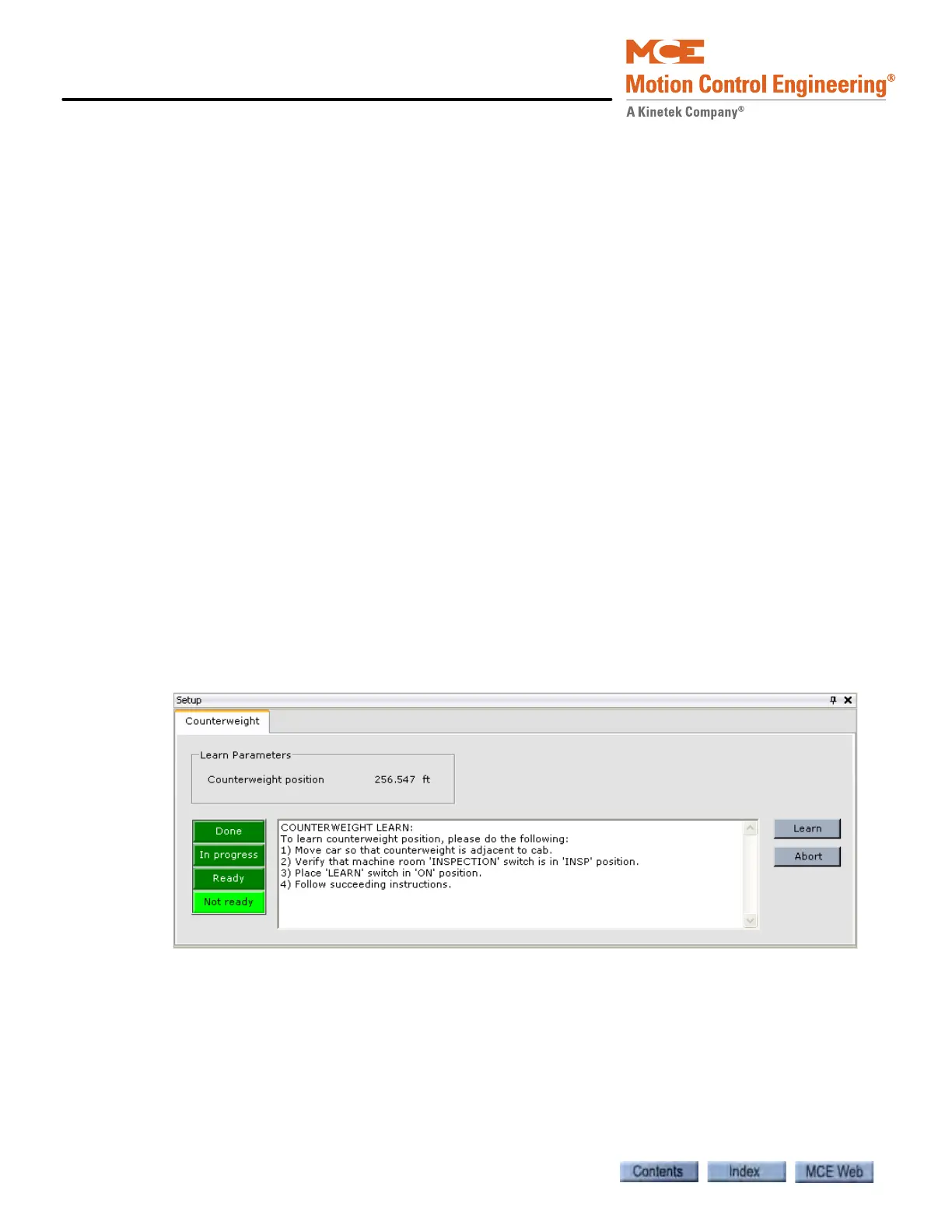

4. Display the Counterweight setup tab (View > Setup > Counterweight).
5. If Not ready is lighted, follow the instructions in the message window until Ready is
lighted.
6. With Ready lighted, click the Learn button.
The controller will learn the car/counterweight position and the Done indicator will light. The
learned Counterweight position is displayed on the Setup > Counterweight tab.
7. Set the iBox Learn switch to OFF and the iBox Inspection switch to NORM.
