Configuration Tabs - System I/O
10-59
10
iControl DC
Configuration Tabs - System I/O
System I/O allows iControl to use a simple, two-wire serial bus for external communication. For
local cars (part of a group) the hall call assignments are made on the central dispatcher (iCen-
tral) or Local/Dispatcher. For a simplex or swing car the hall call assignments are made using
this tab on each car. Normally these assignments are made at the factory. You should only need
to verify that the inputs and outputs are assigned correctly according to the job prints.

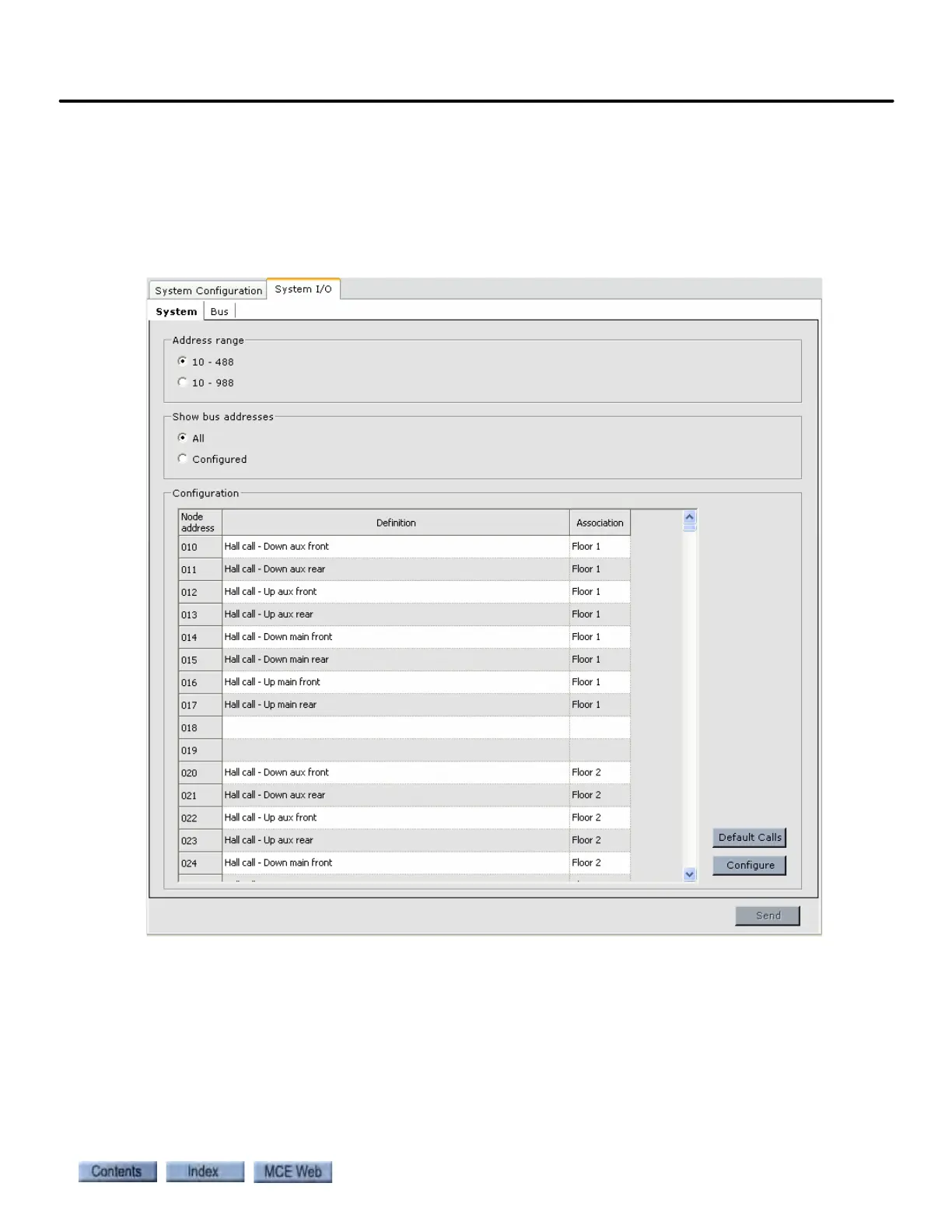

System Tab
This tab allows you to set the polling range for I/O addresses and to assign individual inputs
and outputs to the desired functions.
Address range Each serial bus will accommodate addresses from 10 to 488 or from 10
to 988. If your bus is not populated beyond 488 inputs and outputs, the smaller range should be
used to speed up control response efficiency. The address range is preset at the factory accord-
ing to the job survey. You should not need to change these settings if they are connected as
shown in your job prints.
