Controller Cabinet Installation
2-11
2

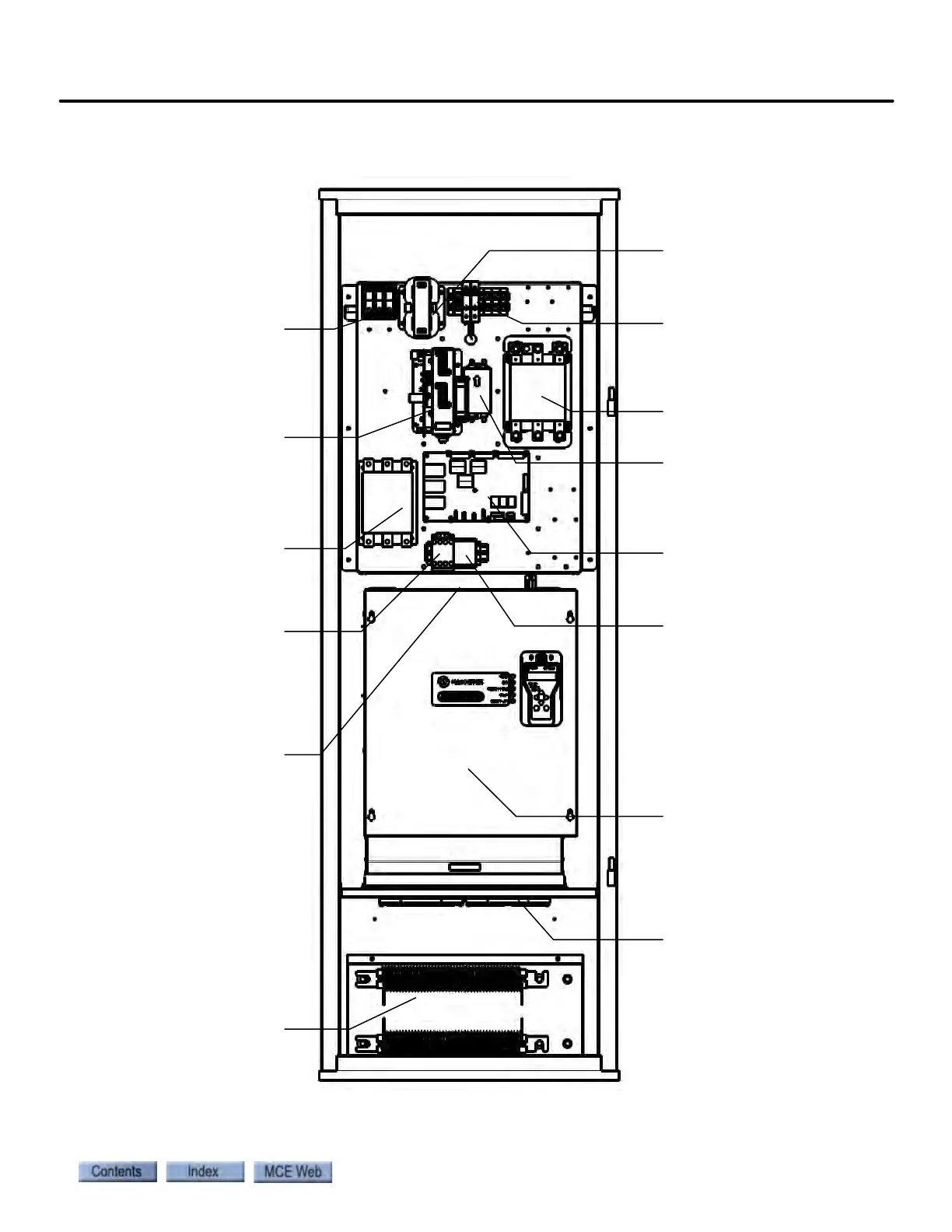

iControl DC
Quattro Drive Comp
onent Locations
3-Phase
Input Power
Motor Field
Controller (A24)
UTM
PCM
Line Side Converter
Optional
Dynamic Braking
Resistors
Control
Power Fuses
(F1 & F2)
Control Power
EMI Filter
Motor
Contactor
(1M)
Electrical
Control Board
Bus Discharge
Relay
Motor Side Inverter
and Control
Electronics
Cooling Fans
Optional Low Voltage
Field Supply or optional
Field Filter
38
40
