Controller - Setup Tabs
9-167
9
iControl DC

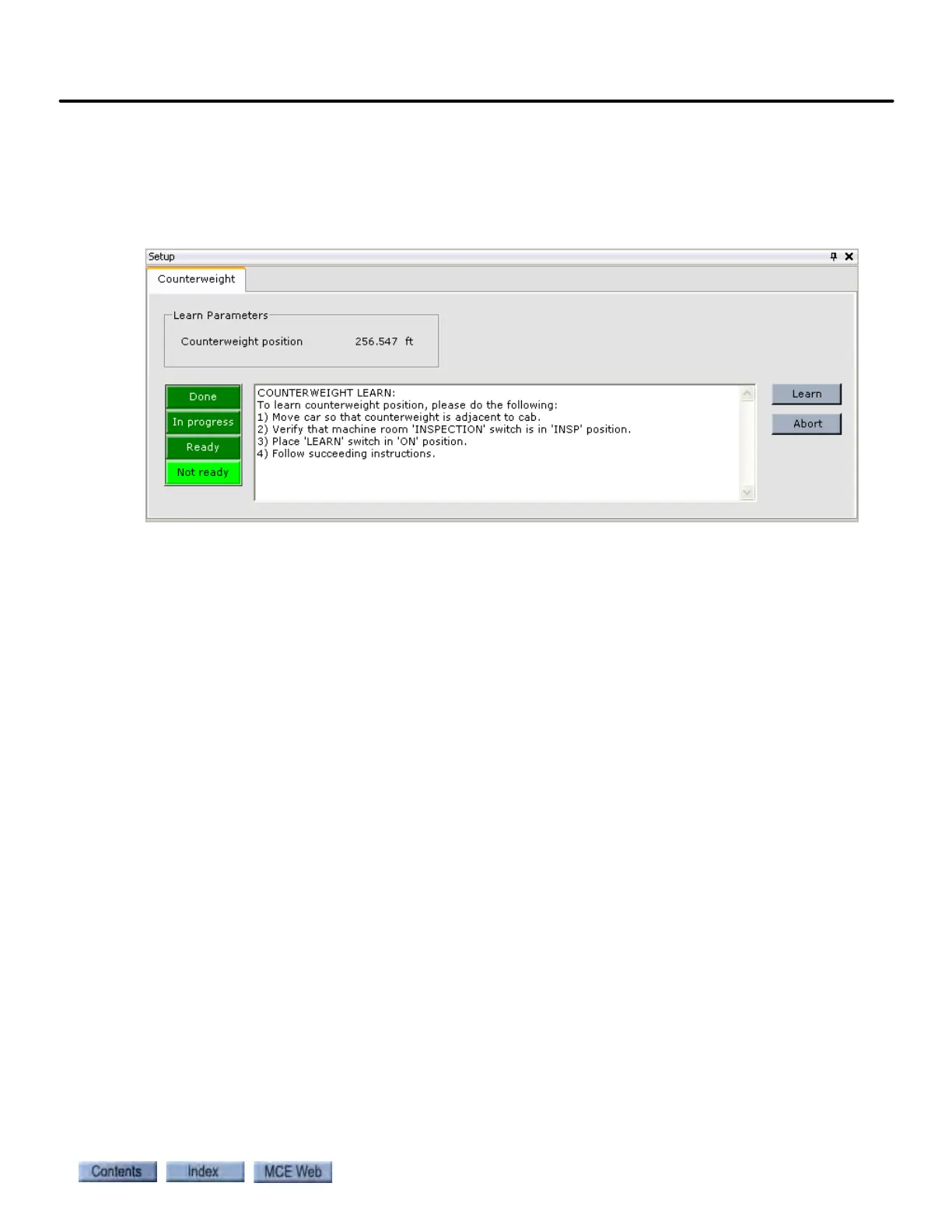

Setup - Counterweight Tab
Used to first learn, then display the learned position in the hoistway where the car and counter-
weight are adjacent to each other. iControl uses this information to make logic decisions requir-
ing knowledge of counterweight position in relation to the car (i.e., Earthquake operation mode
decisions).
• Counterweight Position: The distance, in feet, between the car and the lowest floor served
by the elevator when the counterweight learn operation was accomplished. The learn oper-
ation is performed with the car and counterweight at the same height in the hoistway
(adjacent to one another). Please refer to “Counterweight Learn Procedure” on page 3-28.
