Operational Status tab
9-9
9
iControl DC
• Arm voltage (Armature voltage): Voltage applied to the armature.
• Arm current (Armature current): Armature current expressed as a function of voltage.
• Field voltage: Actual voltage applied to the motor field.
• Field current: A value proportional to the actual current flowing through the motor field.
• Brake voltage: Actual voltage applied to the brake.
• Brake current: A value proportional to the actual current flowing through the brake.
Door lock
• Front and Rear: Indicates when the front and rear door locks are made up.
Landing system sensors
• Up leveling marker (Front and Rear): Indicates when front and rear Up leveling markers
sensors are On.
• Door zone (Front and Rear): Indicates when front and rear door zone sensors are On.
• Down leveling marker (Front and Rear): Indicates when front and rear down leveling
marker sensors are On.
Pattern
•Profile:
•Alternate 1 Emergency Power Idle
• Alternate 2 Earthquake Inspection
• Correction Emergency slowdown Standard

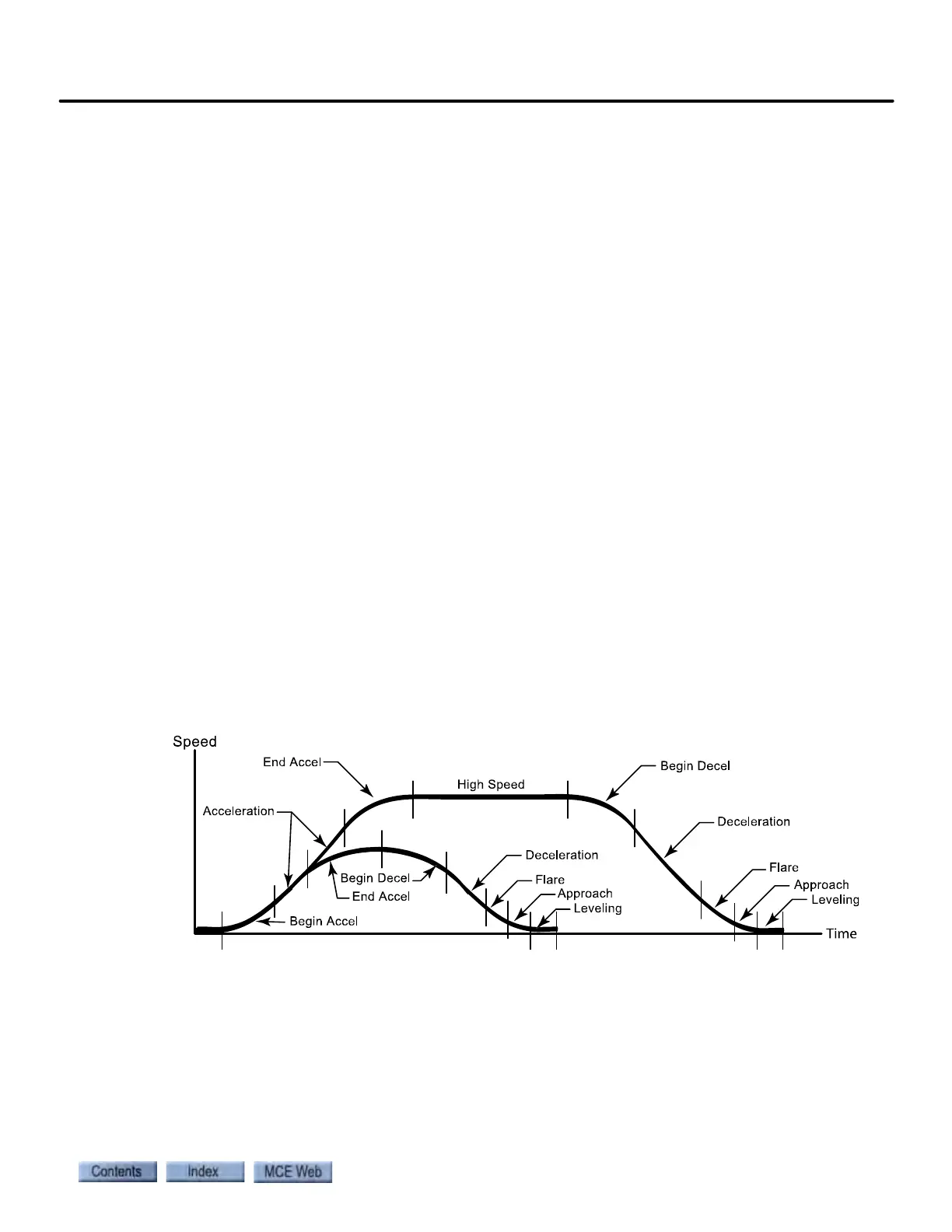

• Phase: (Please see the graphic below)
• Idle End Accel Deceleration Leveling
• Begin Accel High Speed Flare
• Acceleration Begin Decel Approach
Faults
• All active fault messages are displayed in the Faults list box. A complete listing of fault
messages is provided in Section 6. Please refer to “iControl Messages” on page 6-13.
Car status
• All active car status messages are displayed in the Car status list box. A complete listing of
status messages is provided in Section 6. Please refer to “iControl Messages” on page 6-13.
