iView - Controller View
9-10 Manual # 42-02-7223
Diagnostics Tabs
The following four Diagnostics tabs can be displayed one at a time by selecting each one from
the Controller > Diagnostics menu or opened as a group by selecting Diagnostics from the Con-
troller > Layouts menu.
Four other diagnostic screens, Call Generator, Data Trap, Diagnostic Outputs and Virtual Oscil-
loscope are displayed each in their own window. This allows them to be used simultaneously
with other windows.

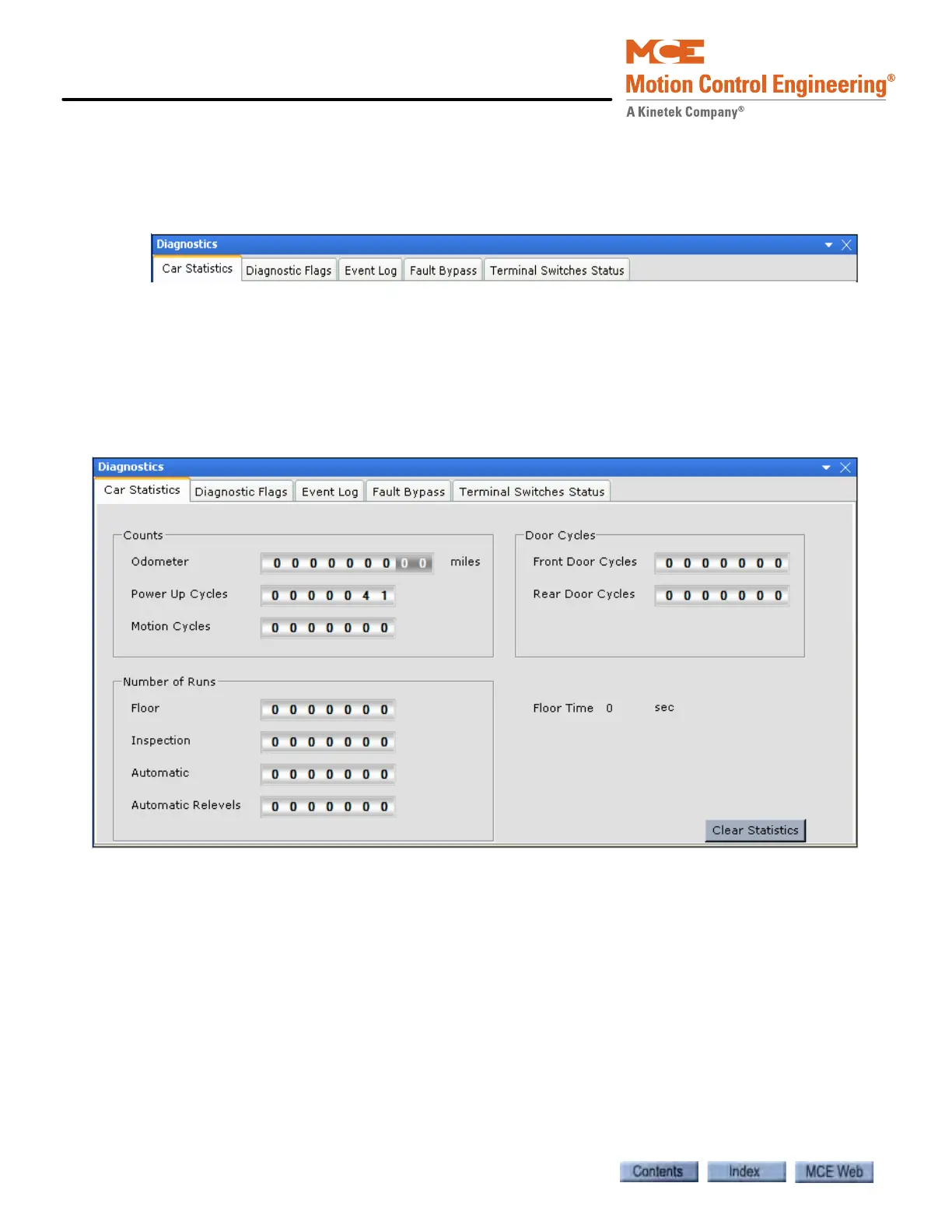

Diagnostics - Car Statistics Tab
The Controller > Diagnostics > Car Statistics tab displays statistical data collected by the con-
troller. The counters can be cleared using the Clear Statistics button.
The statistical data includes:
• Odometer: Distance the car has traveled in miles.
• Power-up cycles: Number of times the controller has been powered up.
• Motion cycles: Sum of inspection runs, automatic runs and automatic relevels.
• Front door cycles: Number of times the front doors have cycled.
• Rear door cycles: Number of times the rear doors have cycled.
• Floor: Number of runs in which elevator movement originated and terminated at a floor.
• Inspection runs: Number of runs on inspection operation.
• Automatic runs: Number of runs on automatic operation.
• Automatic relevels: Number of times the car automatically releveled.
• Floor Time: On the last floor to floor run, time from start to end of elevator movement.
To Next Page
