MCE iControl User Manual

Troubleshooting
6-84 Manual # 42-02-7223
ICE-CTP Cartop Processor
The Cartop Processor board handles local control and communications for the iLink cartop
interconnect. Like the iBox, the Cartop Processor usually has track-mounted expansion boards
for extra inputs and outputs.

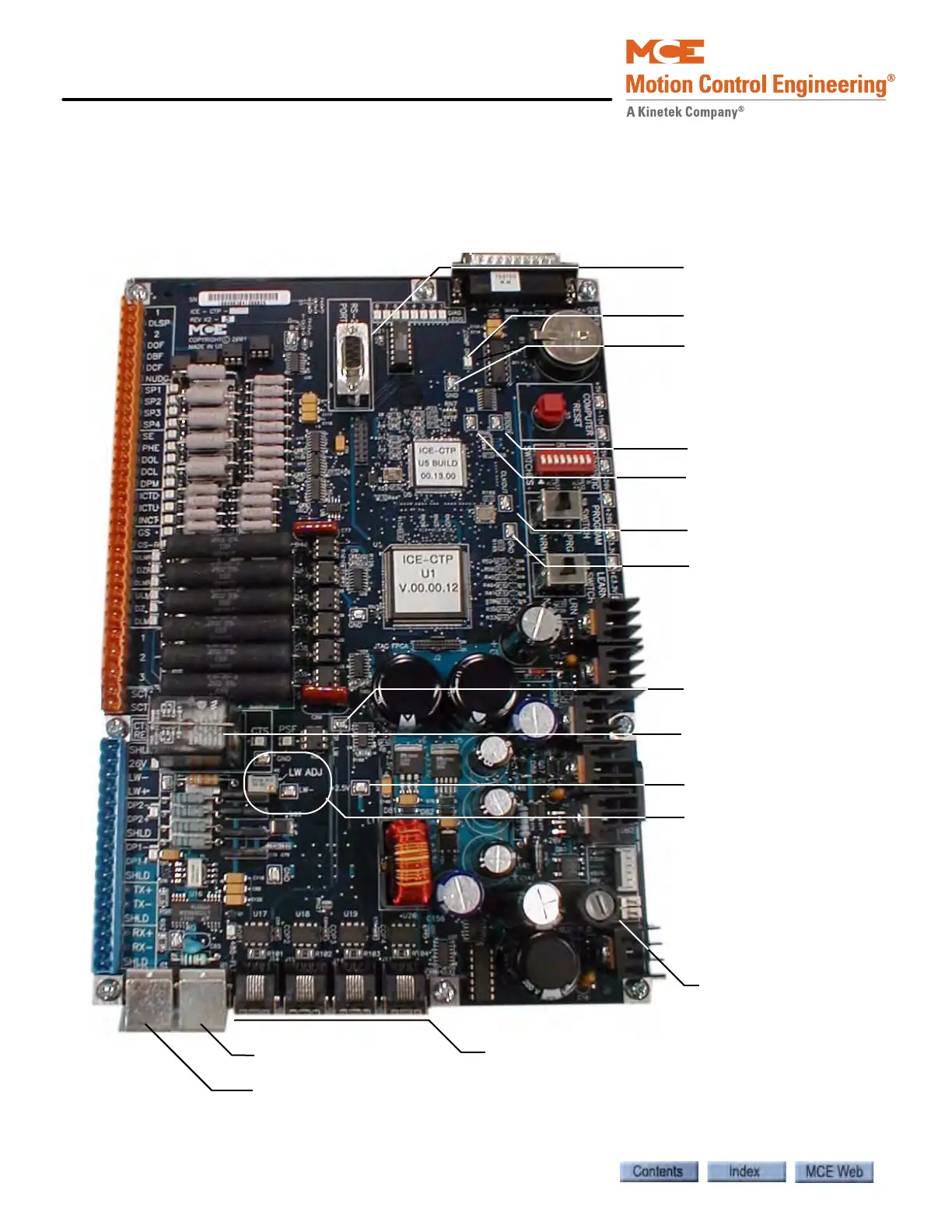

Figure 6.3 ICE-CTP Cartop Processor Board
Rear door level sensor
from iLand
Front door level sensor
from iLand
Connectors for serial
Car Operating Panel
COP boards
Fuse F1, 1A,
125VAC, MDQ
+2.5V test point
TP_LW test point
Ground test point
Clock Out test point
Load Weigher test point
LW
RST OUT test point
Ground Test point
LED, Computer On
Load Weigher adjust,
LW- test point
Refer to iControl User
Manual, Section 5 for
adjustment instructions
Board programming
port, factory use only
CTS Cartop Safety Relay,
part of the safety string
