AC Voltage Verification and Wiring
2-19
2
iControl DC
Initial Controller Power Up
After AC power is connected, temporarily power up the controller and check to see that power
buses inside the controller cabinet are providing proper outputs.
This procedure assumes that no field wiring has been connected to the controller. If field wiring has
been connected, disconnect it before beginning this procedure. Before applying power, physically
check all power resistors and other components located in the resistor and controller compartments.
Components loosened during shipment may cause damage.

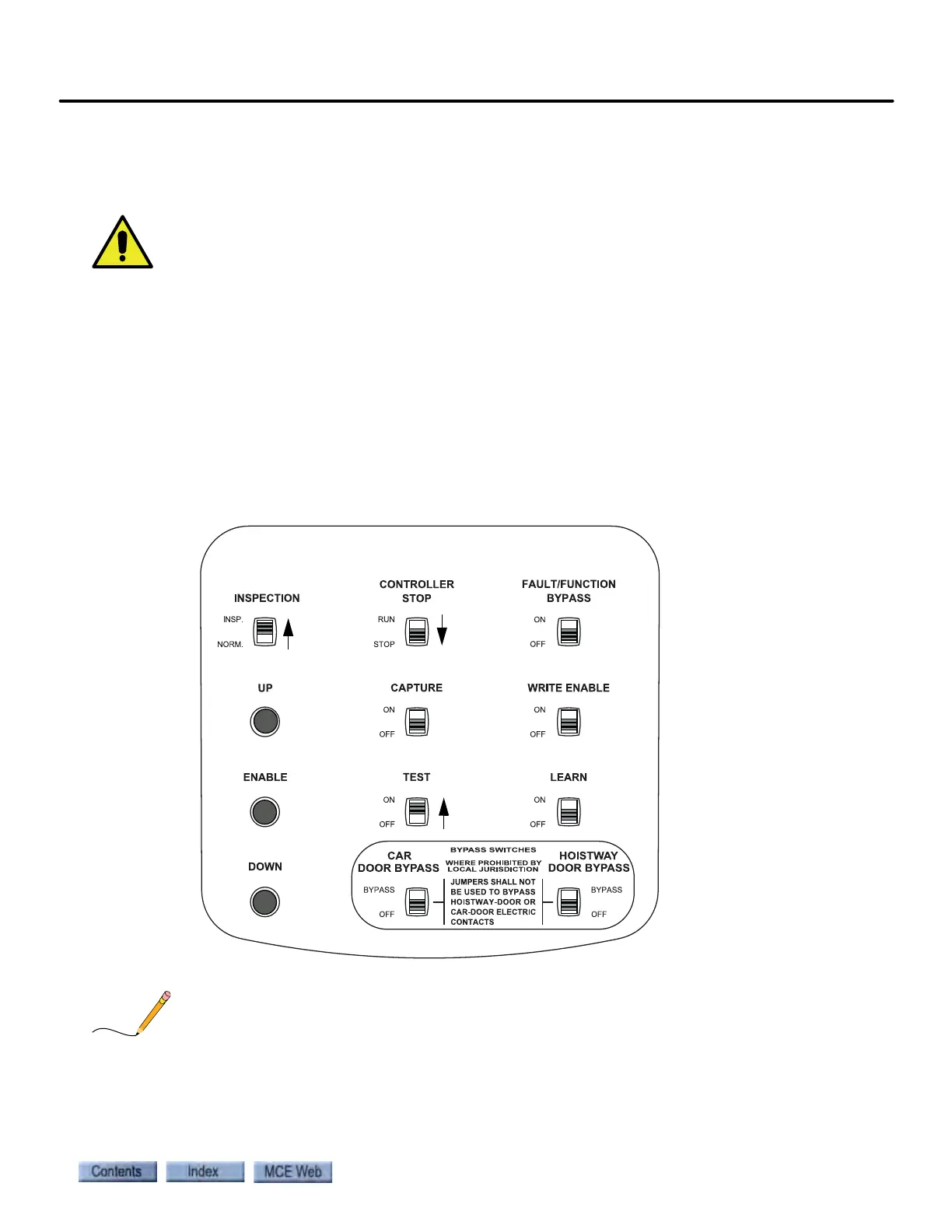

1. On the iBox, verify:
• Inspection switch UP (Inspection mode selected)
• Controller Stop Switch DOWN (Stop selected)
• Test switch ON
• All other iBox slide switches DOWN (Off)
These switch settings prevent the elevator from moving when the controller is powered up.
The controller microprocessor board has battery backup for logic retention. An insulator pre-
vents the battery from discharging during shipment. Remove the insulator now if has not
already been done.
