Using iView

8-30 Manual # 42-02-7223

Controller - Layouts

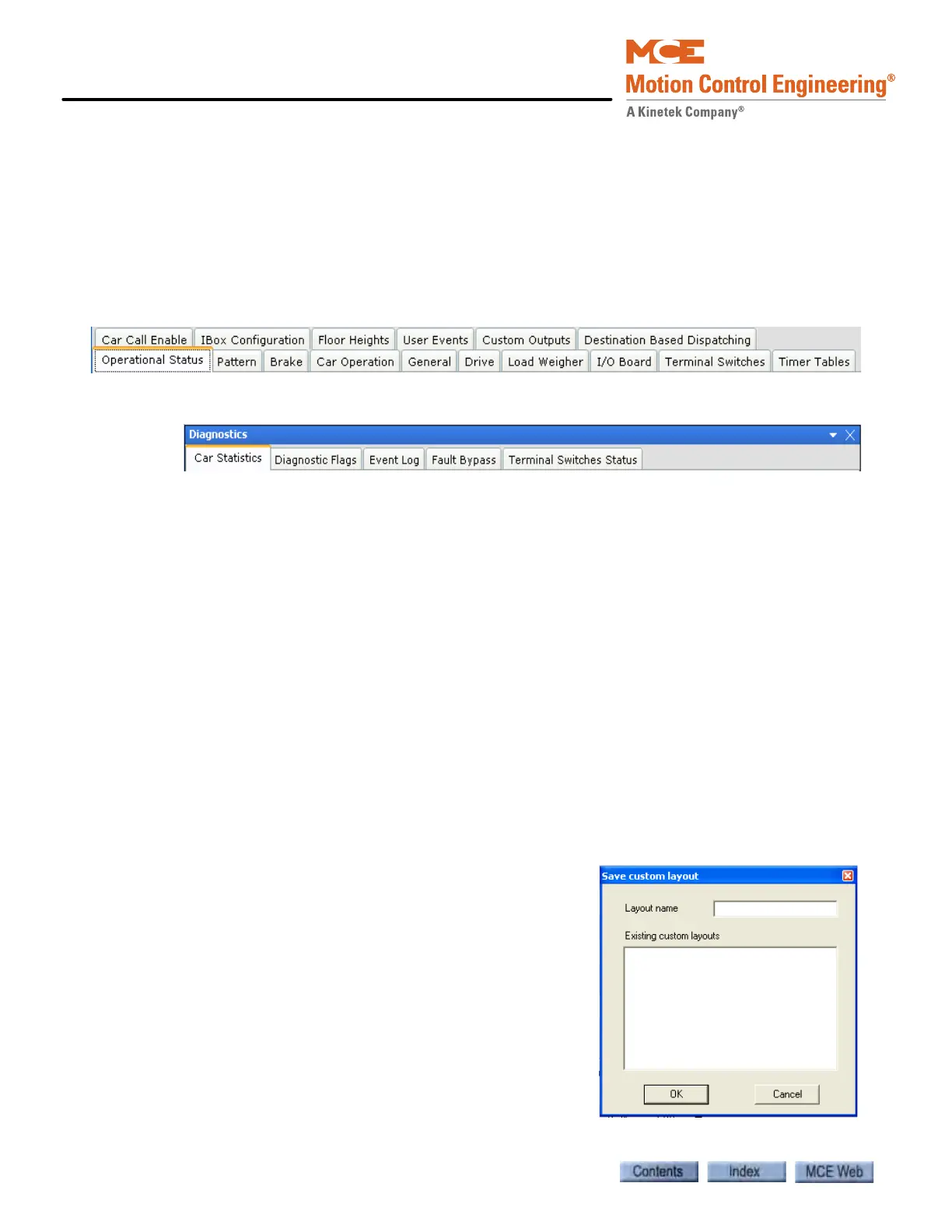

With iView, you can move and size tabs to suit the task to be performed. When you find a partic-

ular arrangement to be useful, you can save it as a custom layout (View > Layouts > Save as).

You can then display that layout at any time by selecting your custom lay0ut from the View >

Layouts > Custom menu.

Some useful layouts have been pre-programmed and are supplied with iView. They include:

• Configuration: This layout displays all of the configuration tabs for easy selection.

• Diagnostics: Displays all of the diagnostic tabs for easy selection.

• Default: Displays the default (initial connection) layout.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

• Brake: Used to perform the brake calibration procedure. Displays the Brake setup and

configuration tabs plus the Hoistway pane.

• Drive: Used to perform the drive offsets calibration. Displays the Drive setup and configu-

ration tabs plus the Hoistway pane (see page 2-49).

• Floor Heights: Used to perform the hoistway (floor heights) learn operation. Displays the

Floor Heights setup and configuration tabs plus the Hoistway pane.

• Load Weigher: Used to perform the Load Weigher learn procedure. Displays the Load

Weigher setup and configuration tabs plus the Hoistway pane.

• Motor Field: Used to perform the Motor Field calibration procedure. Displays the Motor

Field setup and configuration tabs plus the Hoistway pane.

• Terminal Switches: Used to perform the Terminal learn procedure. Displays the Terminal

Switches setup, configuration and diagnostics tabs plus the Hoistway pane.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

• Custom: Used to select a custom layout to be displayed. This is the listing of custom lay-

outs created using View > Layouts > Save as.

• Save As: Used to create and save a custom layout.

• Enter the name for the custom layout.

•Click OK.
