MCE iControl User Manual

Flexible I/O
5-47
5
iControl DC
SC-ION Boards
The number of SC-ION boards in an iCue system will vary depending upon system configura-
tion and the number of additional inputs and outputs required for the job. A typical job might
have one SC-ION board, providing 16 additional inputs and 16 additional outputs.

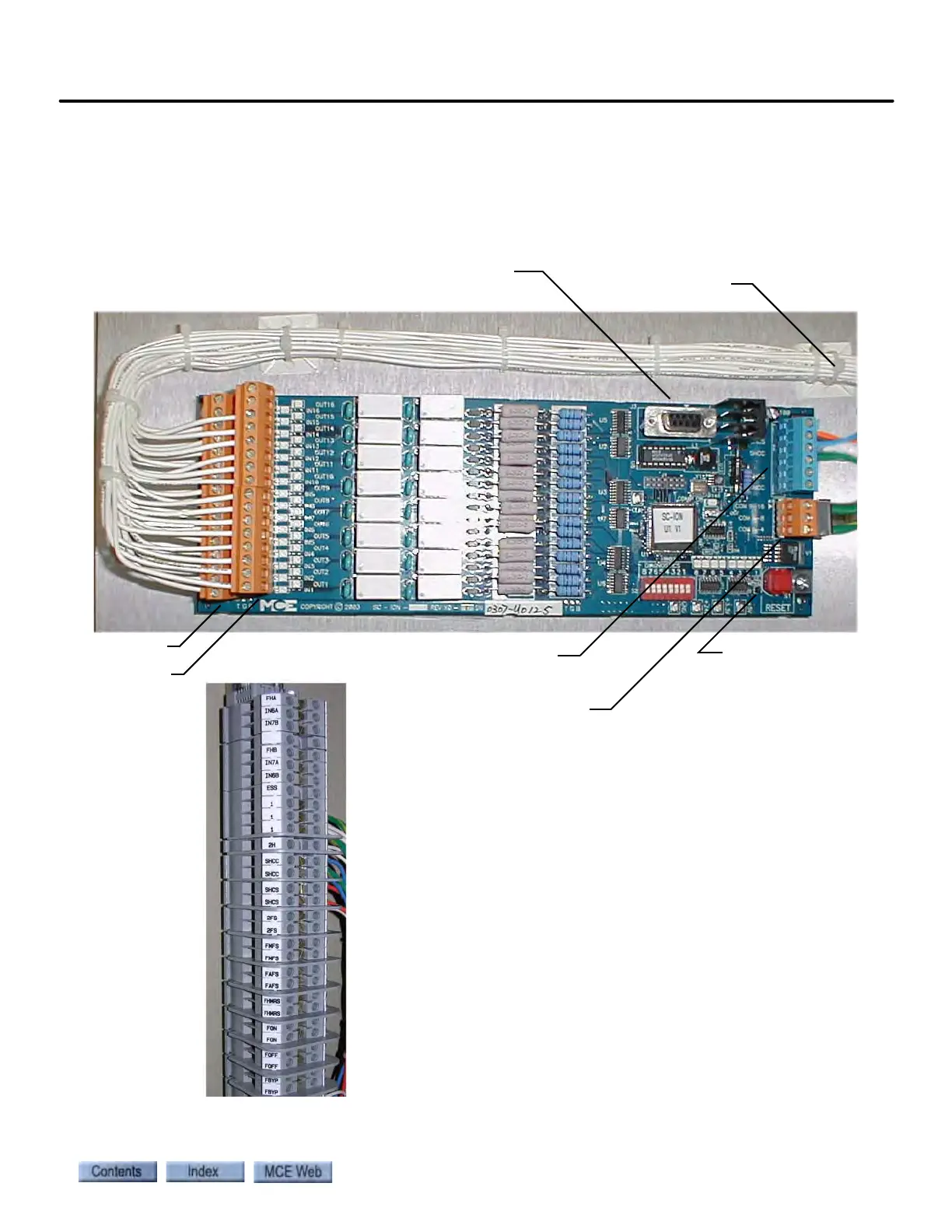

Figure 5.20 SC-ION Board in iCue Cabinet
MCE Serial Bus Connection
High/Low (Current
Source/Current Sink)
Output Selection (J4)
Board Reset
Inputs
Outputs
In this configuration, inputs and
outputs have been routed to clearly
labeled terminal strips for easy user
identification and connection.
Terminal strips are located behind
the hinged panel inside the iCentral
cabinet, mounted for convenient
user access.
Factory programming serial port.
Used to configure the board.
Input/Output wires
to terminal strip
