Controller - Setup Tabs
9-179
9
iControl DC

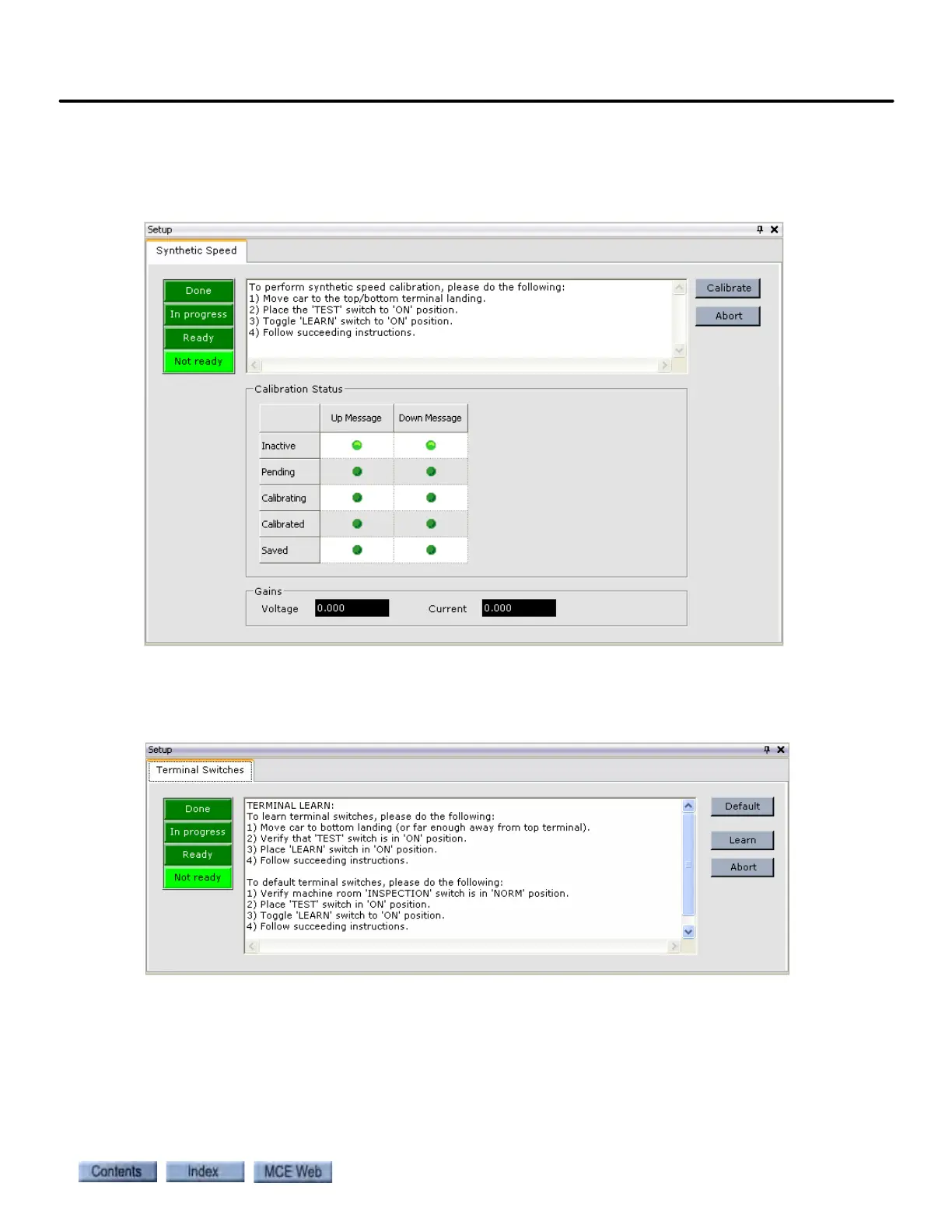

Setup - Synthetic Speed Tab
Calibration determines the appropriate value for Voltage safety calibration and Current safety
calibration parameters (not applicable to Quattro DC Drive). Please refer to “Synthetic Speed
Calibration (System 12 SCR Drive)” on page 4-15.
Setup - Terminal Switches Tab
Used to perform the Terminal Learn procedure. Please refer to “Learning Normal & Emergency
Terminal Limit Switches” on page 4-13.
• Learn operation indicators: Show progress through Terminal Learn steps.
• Message window: Feedback and instructions as required during the Learn operation.
• Learn button: Starts the Learn operation.
• Abort button: Aborts the Learn operation.
• Default button: Sets the switch Learned Values to values that allow the car to run without
activating limit switch faults as long as the car remains in Test operation. The car is not
allowed to run on passenger operation until real switch data is learned
To Next Page
