Phaser 7500 Printer Service Manual 8-183

Service Parts Disassembly

3. Unplug the wiring harness connector.

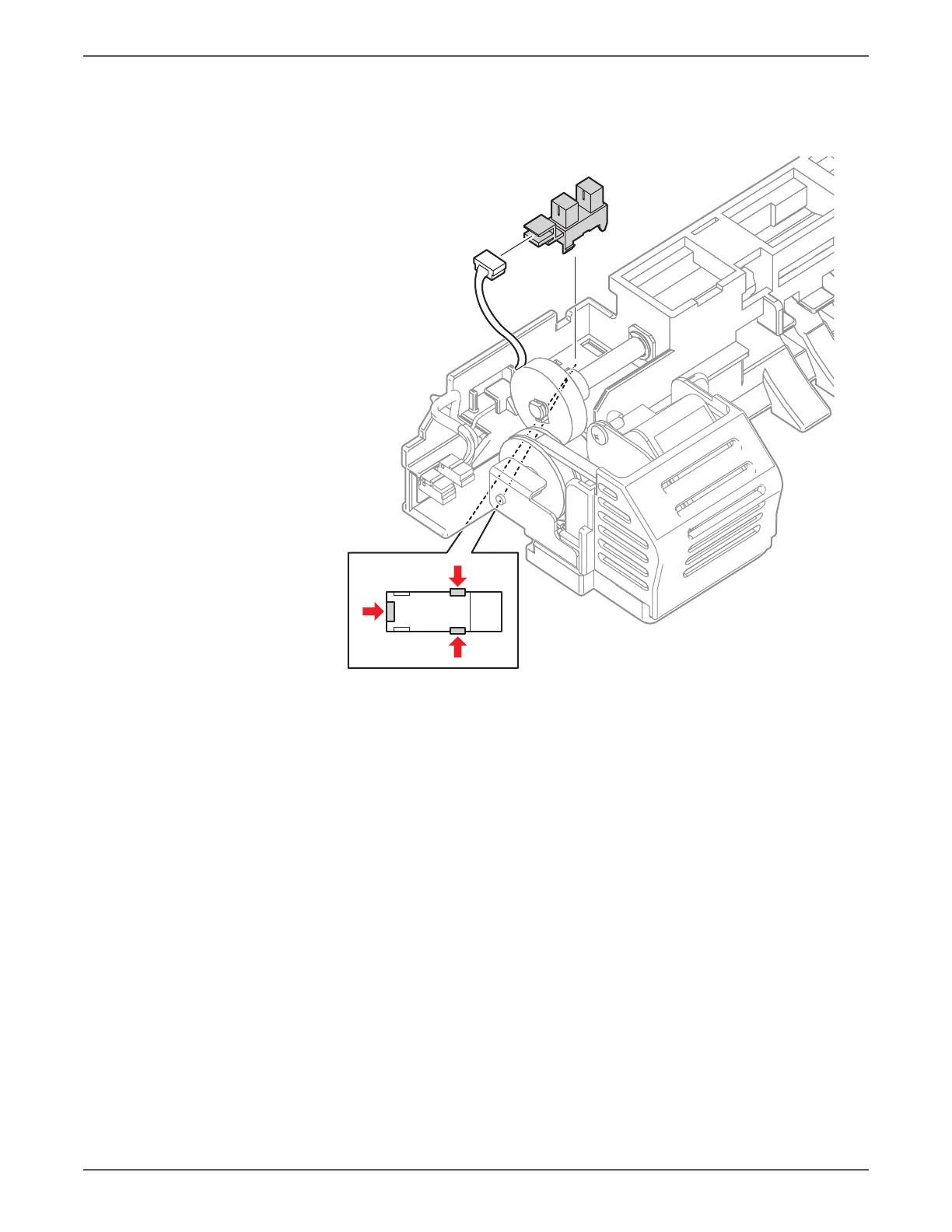

4. Release the three tabs that secures the Sensor and remove the Full Stack

Sensor.

s7500-521
