(2) Remove the necessary length of the shield to make the distance from the end of the shield to the
end of the jacket 0.25 inch to 0.38 inch.
(3) Assemble a shield dead end.
Refer to:
• Subject 20-10-15.
• Figure 19.
(4) Remove 0.25 inch ±0.03 inch of the inner insulation layer from the end of the inner conductor.
(5) Make a selection of a 0.25 inch diameter TFE-4X heat shrinkable sleeve from Subject 20-00-11.
(6) Put a length of the TFE-4X heat shrinkable sleeve on the inner conductor.
(7) Shrink the sleeve into its position.
Refer to:
• Subject 20-10-14.
• Figure 19.
Make sure that:
• The forward end of the sleeve is aligned with the end of the inner layer of insulation
• The rearward end of the sleeve makes an overlap with the shield dead end.

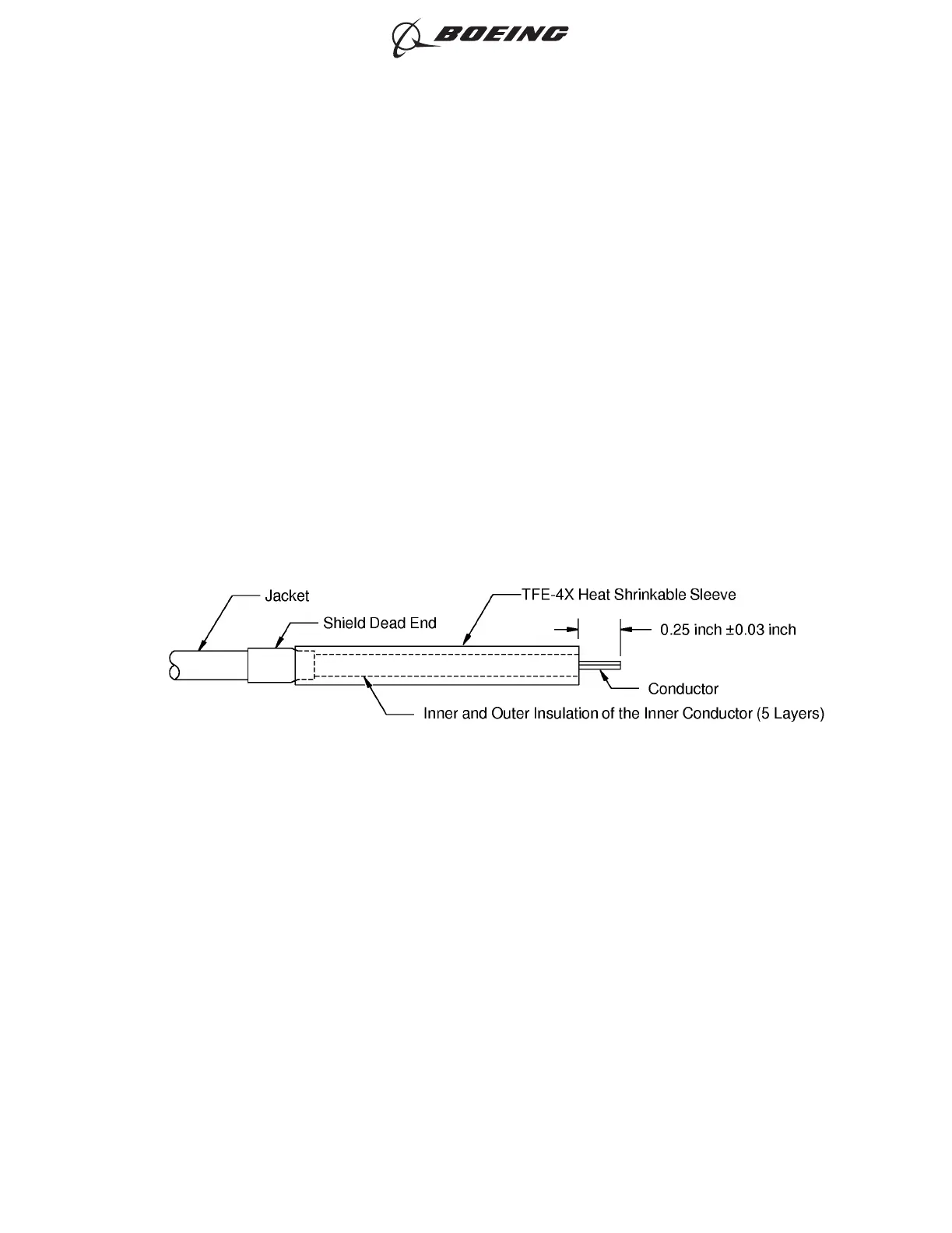

POSITION OF THE SLEEVES ON THE WIRE
Figure 19
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 68
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
