(3) Put the terminal lugs on the studs of the terminal block. Refer to Figure 14.
T1
T1
T2
T2
NUT (BACN10HY6AM OR EQUIVALENT)
BACW10EC6C LOCK WASHER
NAS1149E0632R FLAT WASHER
TERMINAL
LUG ASSEMBLY
TERMINAL
LUG ASSEMBLY
TERMINAL BLOCK
TERMINAL
BLOCK STUD
2449202 S00061545378_V3

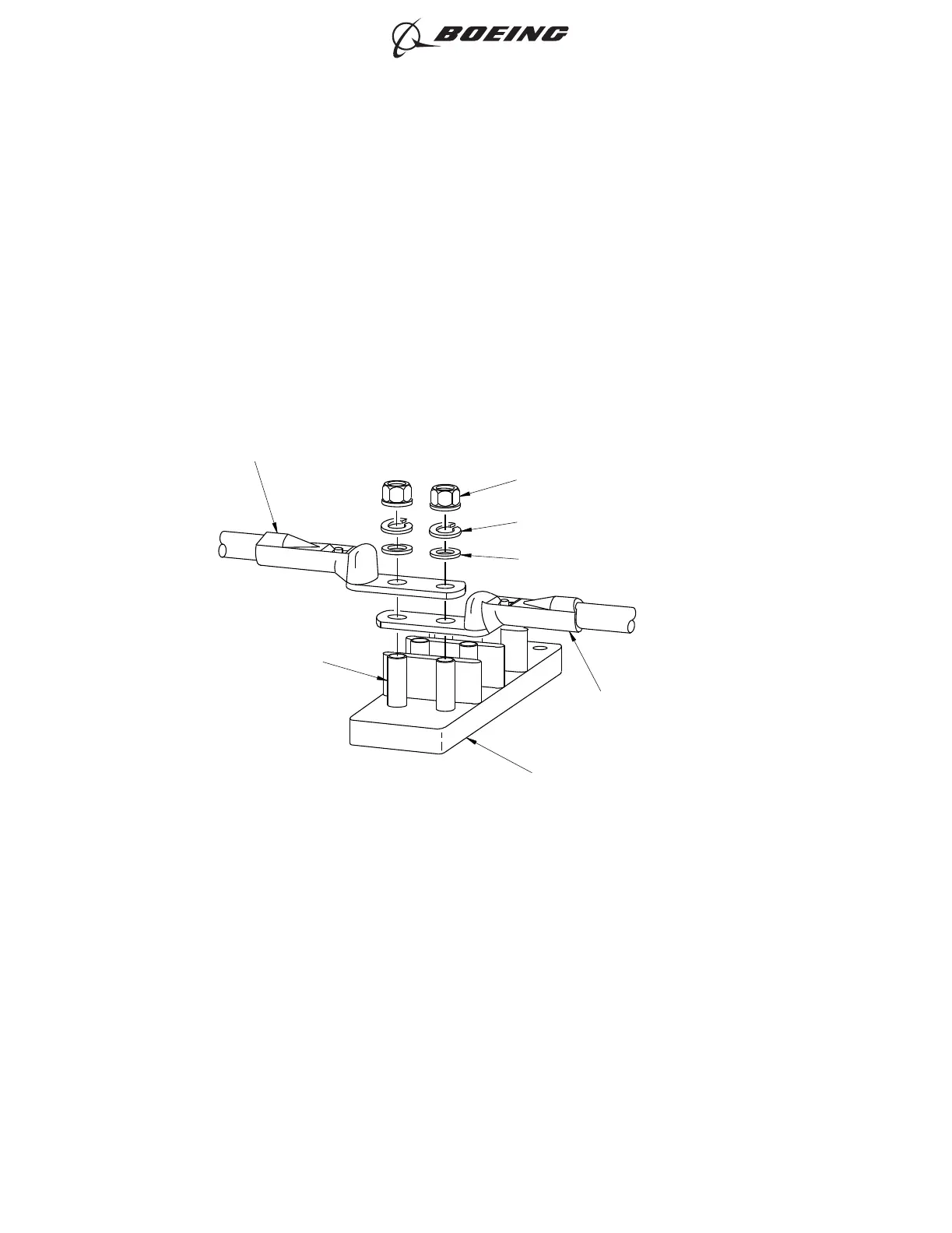

ALIGNMENT OF THE TERMINAL LUG ASSEMBLIES AND THE STUDS OF THE CTB TERMINAL BLOCK
Figure 13
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
