(3) Put the specified washer on each stud of the terminal board.
Make sure that the washers are put on the studs first;
(4) Put the breakaway terminal lug assembly on the two studs of the terminal board. Refer to Figure
18.
Make sure that:
• Each washer is flat against the jam nut of the terminal board.
• The bottom surface of the tongue of the terminal lug is flat against the body of the terminal
board
• The breakaway area of the tongue of the lug does not bend as it is put on the studs.
CAUTION
UNEVEN PRESSURE OR A STRONG FORCE MUST NOT BE APPLIED TO
THE TONGUE OF THE TERMINAL LUG. THE DAMAGE CAN CAUSE
UNSATISFACTORY PERFORMANCE OF THE LUG ASSEMBLY.

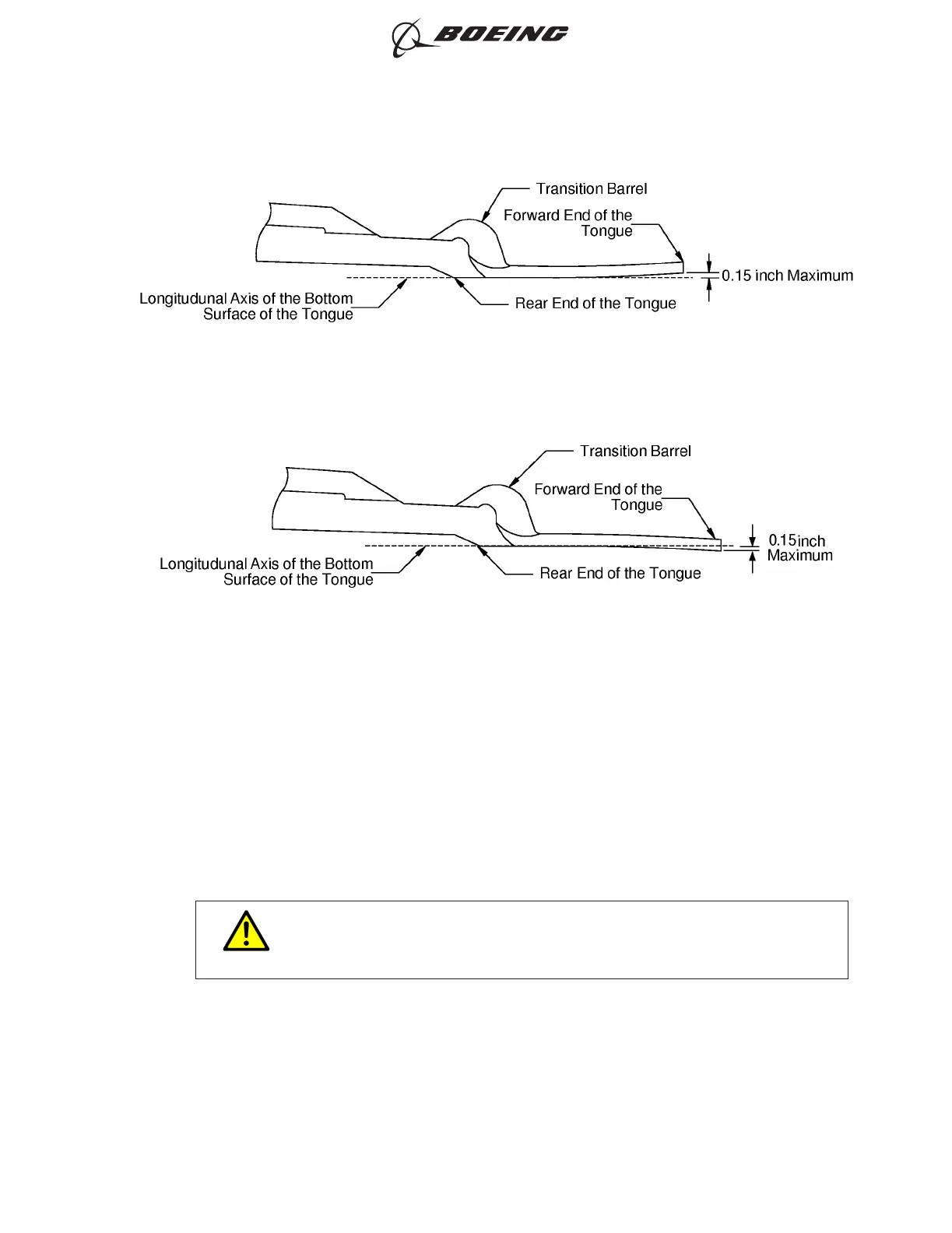

TERMINAL LUG TONGUE-BENT UP
Figure 16
TERMINAL LUG TONGUE-BENT DOWN
Figure 17
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 21
Jun 15/2018D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
