CAUTION
IF THE BREAKAWAY AREA OF A BACT13T TERMINAL LUG IS BENT AS
THE LUG IS PUT ON THE STUDS, DO NOT TRY TO MAKE THE TONGUE
STRAIGHT. THE TERMINAL LUG IS DAMAGED AND MUST NOT BE
INSTALLED.
(5) For the two terminal lugs on the other side of the terminal board, put the bottom surface of the
tongues of the lugs together. Refer to Figure 19.
(6) Put the two terminal lug assemblies on the two studs of the terminal board. Refer to Figure 20.
BREAKAWAY AREA
STUD
WASHER
TERMINAL BOARD
BREAKAWAY TERMINAL LUG
JAM NUT
2449205 S00061545387_V3

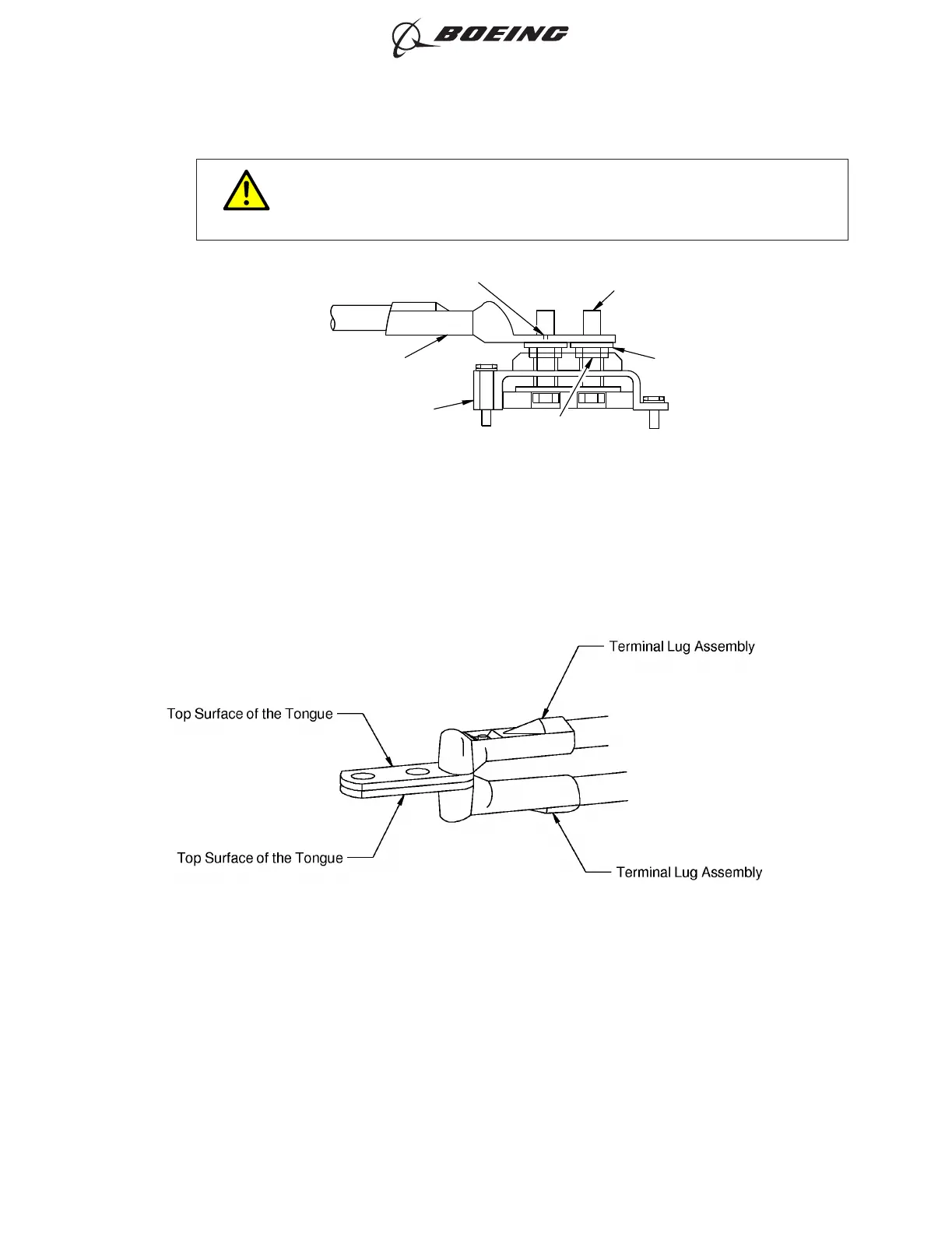

POSITION OF THE BREAKAWAY TERMINAL LUG ASSEMBLY
Figure 18
POSITION OF TWO TERMINAL LUG ASSEMBLIES
Figure 19
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 22
Oct 15/2018D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
