(11) After the wire harness assembly is installed, examine the splice assembly.
Make sure that:
• The start of each branch is near the top side of the harness
• The end of each closed end splice is pointed up
• Each closed end splice is in the position that is ±45 degrees from the vertical.
Refer to Figure 18.
NOTE: This configuration is not necessary for splices that are in a module.

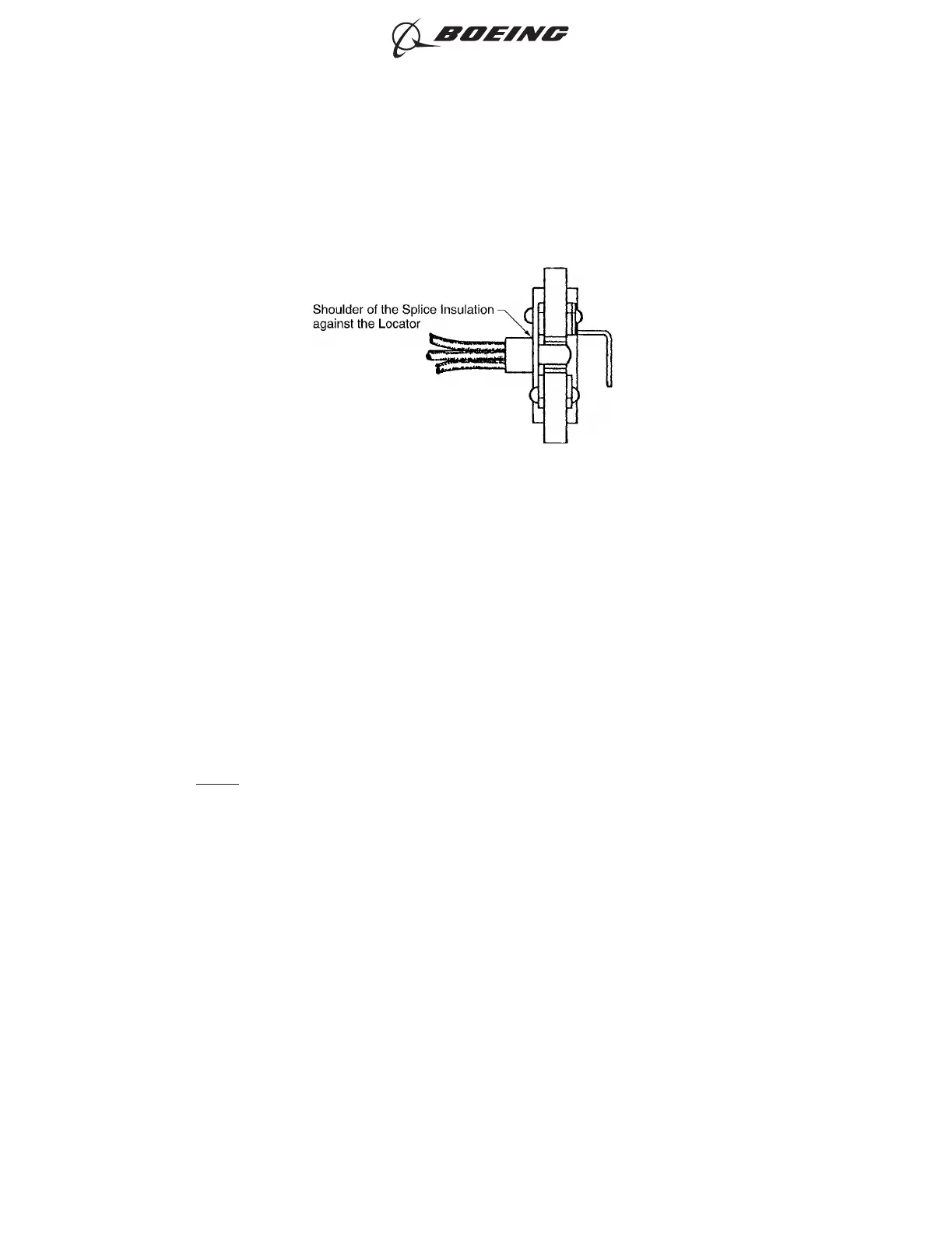

POSITION OF THE SPLICE IN THE CRIMP TOOL
Figure 17
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 62
Feb 15/2021D6-54446
