Table 69
INSULATION REMOVAL LENGTH
Splice Part Number
Insulation Removal Length L
(inch)
Target Tolerance
BACT12C101 0.72 ±0.03
BACT12C12 0.34 ±0.03
BACT12C21 0.65 ±0.03
BACT12C4 0.53 ±0.03
BACT12C4NK 0.47 ±0.03
BACT12C6 0.53 ±0.03
BACT12C6NK 0.53 ±0.03
BACT12C8 0.47 ±0.03
BACT12C8NK 0.53 ±0.03
D-609-06 0.28 ±0.03
D-609-07 0.28 ±0.03
D-609-08 0.28 ±0.03
NAS1387-4 0.28 ±0.03
NAS1387-5 0.28 ±0.03
NAS1387-6 0.28 ±0.03
(8) Put the length of sleeve on one of the two wires that are to be spliced together.
(9) Assemble one end of the butt splice.
(a) Put the splice in the crimp tool.
(b) If the splice has a seam, align the seam opposite the indenter. Refer to Figure 44.

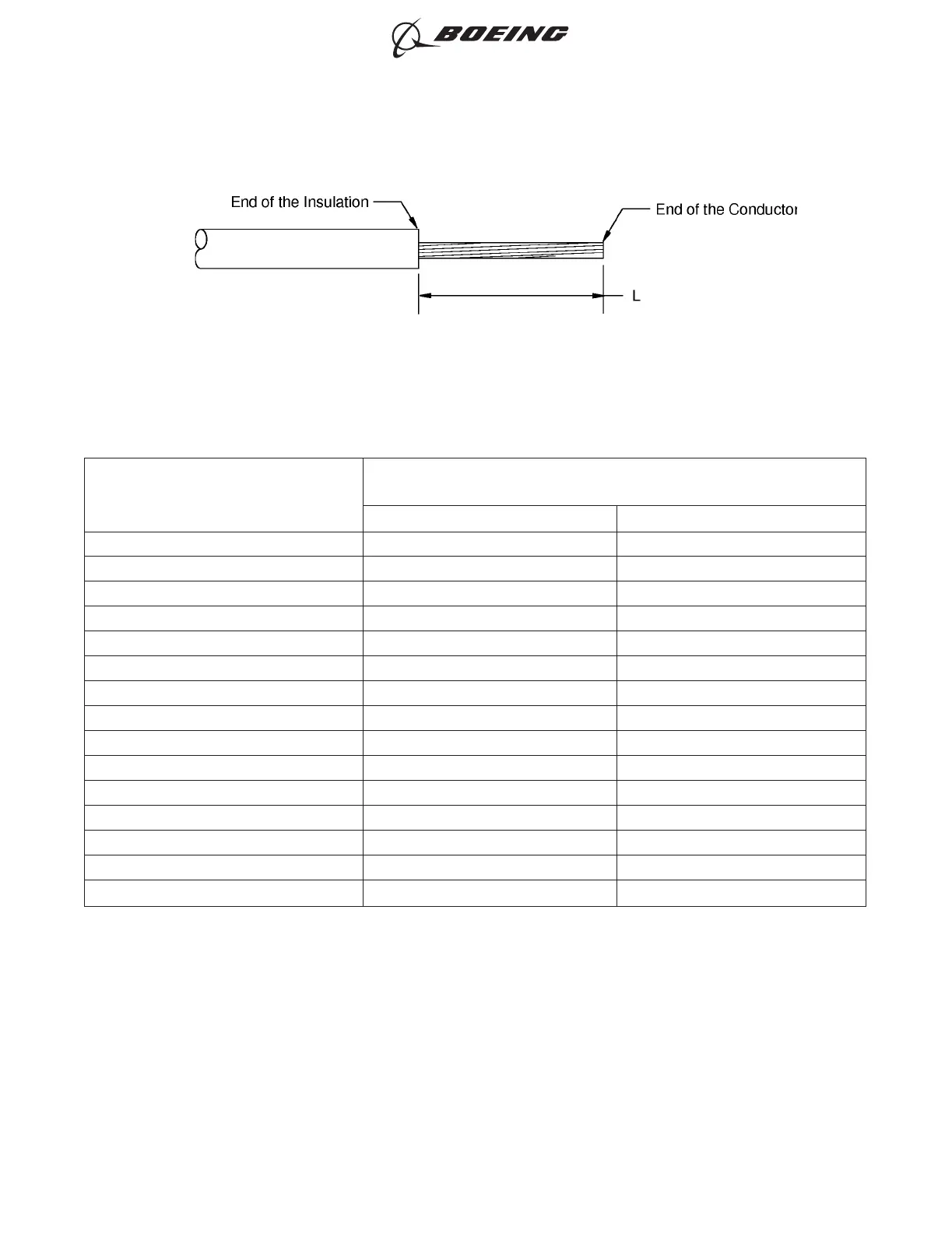

INSULATION REMOVAL LENGTH
Figure 43
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 85
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
