Make sure that:
• The end of each conductor can be seen in the inspection hole
• The end of each conductor does not make an overlap with the wire stop
• The insulation of each wire is not in the crimp barrel
• For one wire, the end of the wire insulation is a maximum of 0.13 inch from the end of
the crimp barrel
• For more than one wire, the end of the wire insulation is a maximum of 0.25 inch from
the end of the crimp barrel.
(d) Crimp the splice.
(9) Do Step 7.I.(8) again to assemble the other end of the butt splice. Refer to Figure 78.

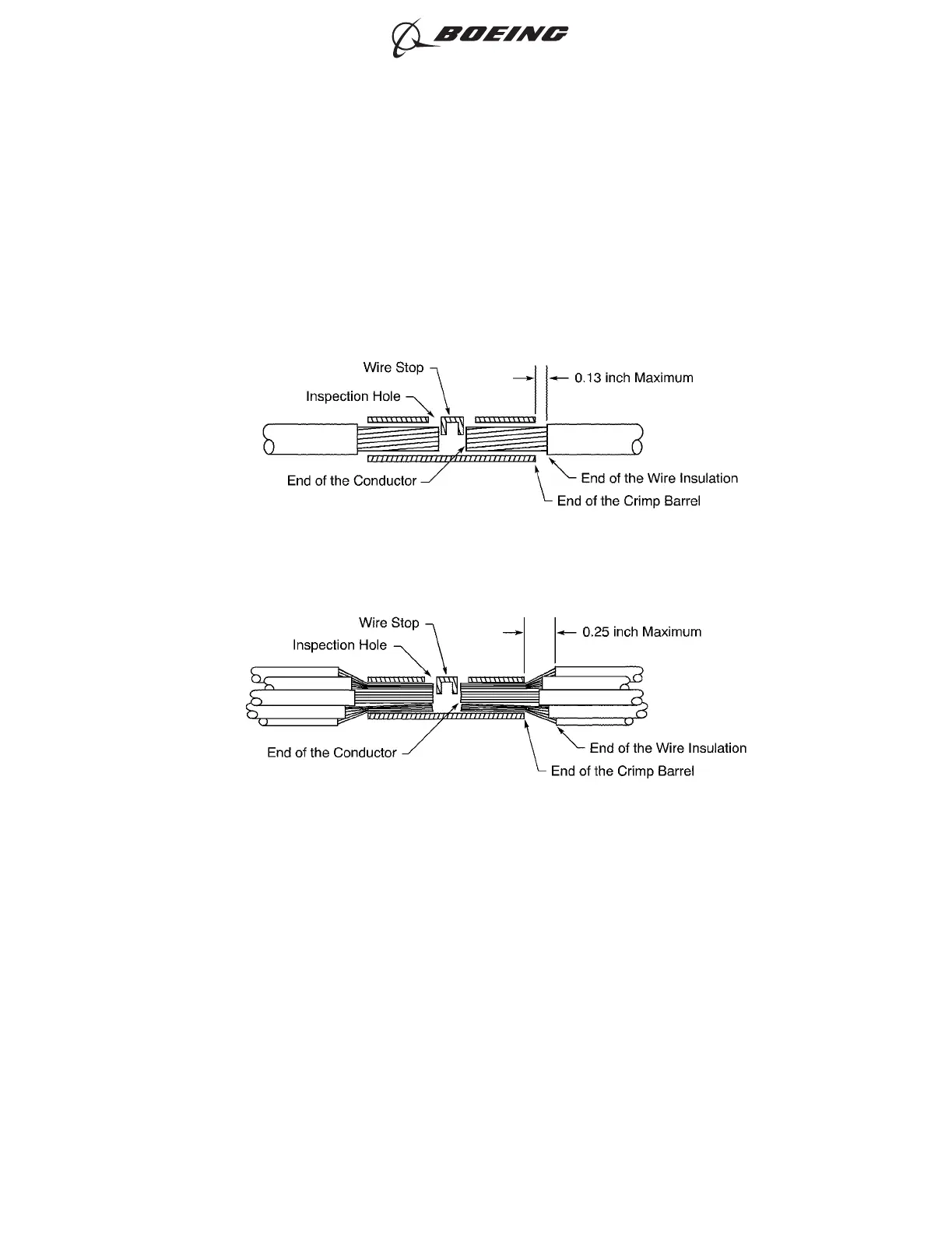

POSITION OF ONE WIRE IN THE BUTT SPLICE
Figure 76
POSITION OF MORE THAN ONE WIRE IN THE BUTT SPLICE
Figure 77
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 107
Feb 15/2021D6-54446
