Refer to:
Figure 94
Table 79 for the insulation removal length for a wire that can go into the insulation grip
Table 80 for the insulation removal length for a wire that cannot go into the insulation grip
Subject 20-00-15 for the insulation removal procedures.
Table 79
INSULATION REMOVAL LENGTH FOR A WIRE THAT CAN GO INTO THE INSULATION GRIP
Splice Part Number
Insulation Removal Length L
(inch)
Target Tolerance
BACT12C11 0.37 ±0.02
BACT12C15 0.23 ±0.02
BACT12C20 0.23 ±0.02
Table 80
INSULATION REMOVAL LENGTH FOR A WIRE THAT CANNOT GO INTO THE INSULATION GRIP
Splice Part Number
Insulation Removal Length L
(inch)
Target Tolerance
BACT12C11 0.46 ±0.02
BACT12C15 0.30 ±0.02
BACT12C20 0.30 ±0.02
(8) Assemble one end of the butt splice.
(a) Put the splice in the crimp tool.
(b) Hold the splice in position with light pressure.
(c) Put the wire in the splice.
Refer to:
2446140 S00061544325_V1
INSULATION REMOVAL LENGTH

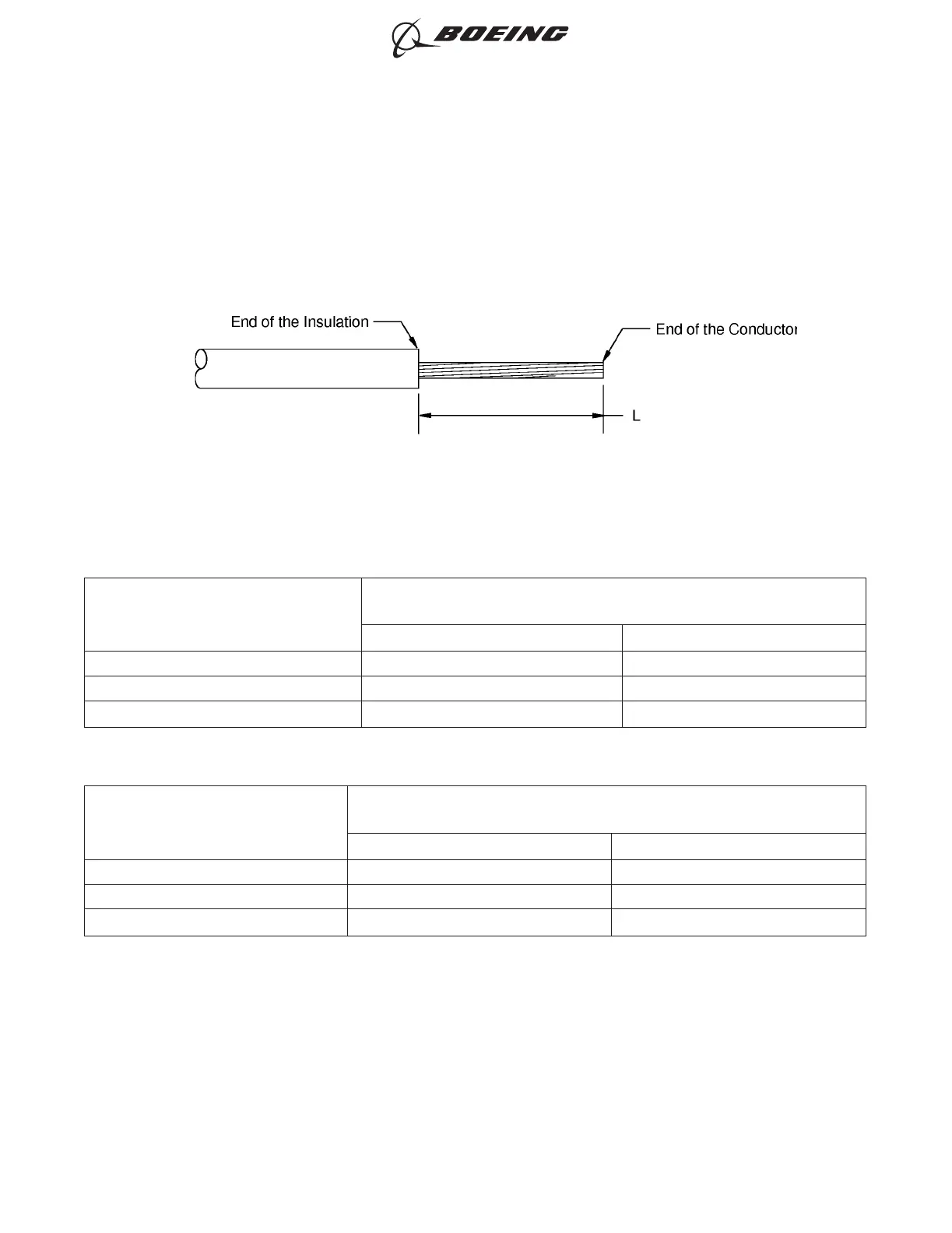

Figure 94
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 121
Jun 15/2021D6-54446
