(d) Crimp the splice.
(11) Put three layers of insulation tape on the splice assembly.
(a) Tightly wind the first layer of tape on the splice assembly.
Make sure that the layer:
• Starts 0.6 inch minimum farther than the end of the splice on the side with one wire
• Stops at the rear end of the layers of tape on the two wires on the other end of the
splice assembly
• Makes a 50 percent overlap.
(b) Tightly wind the second layer of tape on the splice assembly in the opposite direction of the
first layer.
Make sure that the layer:
• Starts 1 inch minimum farther than where the first layer stops on the side with two
wires
• Stops 1 inch minimum farther than where the first layer starts on the side with one wire
• Makes a 50 percent overlap.
(c) Tightly wind the third layer of tape on the splice assembly in the opposite direction of the
second layer.
Make sure that the layer:
• Starts where the second layer stops
• Stops where the second layer starts
• Makes a 50 percent overlap.
(12) Assemble a lacing tape wire harness tie on each end of the splice assembly approximately 0.25
inch from the end of the tape. Refer to Subject 20-10-11.
Make sure that the Temperature Grade of the lacing tape is Temperature Grade D.

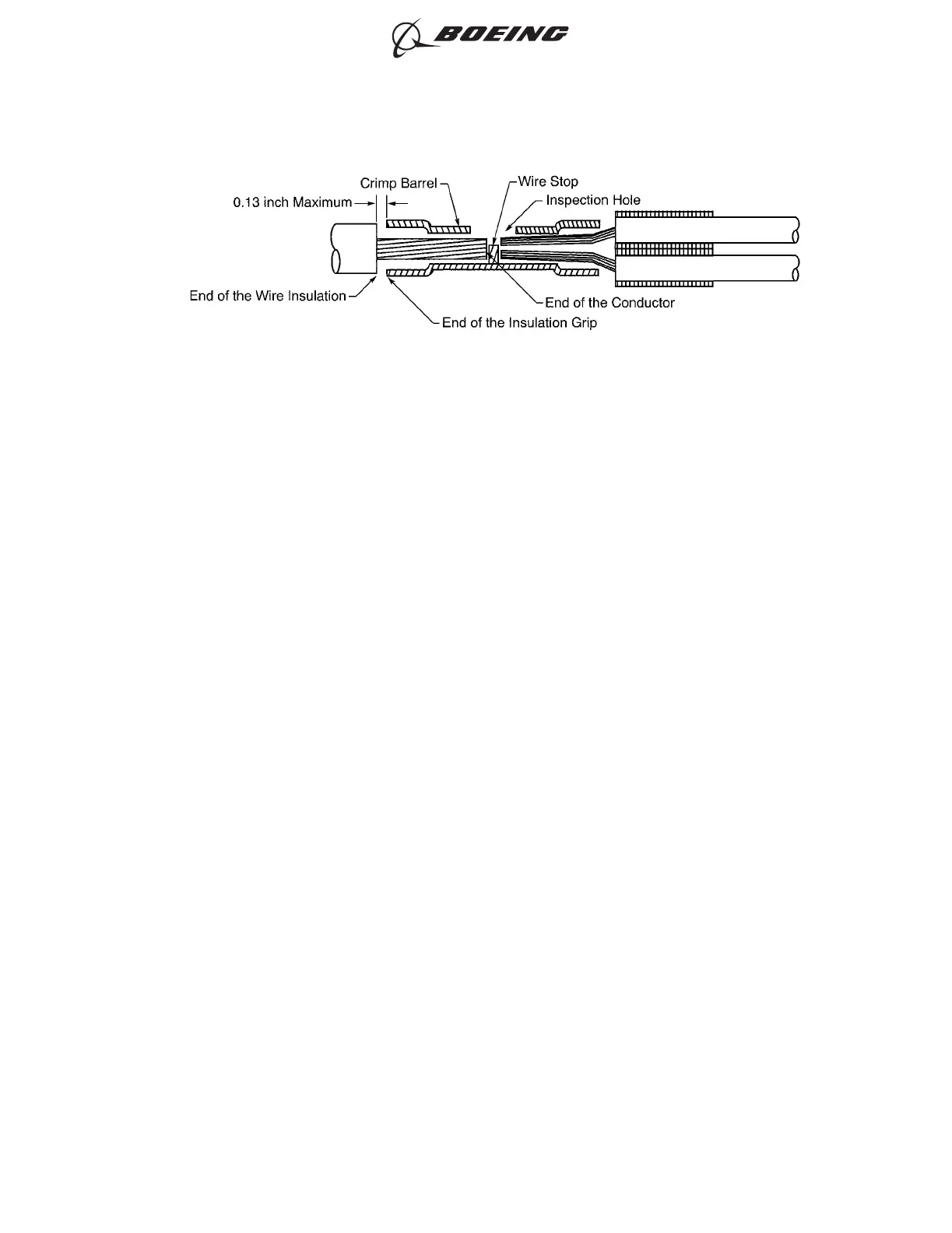

POSITION OF THE WIRE IN THE BUTT SPLICE WITH THE WIRE INSULATION OUT OF THE INSULATION
GRIP
Figure 105
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 132
Jun 15/2021D6-54446
