(8) Remove the necessary length of insulation from the end of each wire.
Refer to:
• Figure 115
• Table 90 for the insulation removal length
• Subject 20-00-15 for the insulation removal procedures.
Table 90
INSULATION REMOVAL LENGTH
Splice Part Number
Insulation Removal Length L
(inch)
Target Tolerance
BACT12C11 0.46 ±0.02
BACT12C15 0.30 ±0.02
BACT12C20 0.30 ±0.02
(9) Put the wires in the splice. Refer to Figure 116.
Make sure that:
• The end of each conductor can be seen in the inspection hole
• The end of each conductor does not make an overlap with the wire stop
• The end of each wire insulation is a maximum of 0.19 inch from the end of the insulation
grip.

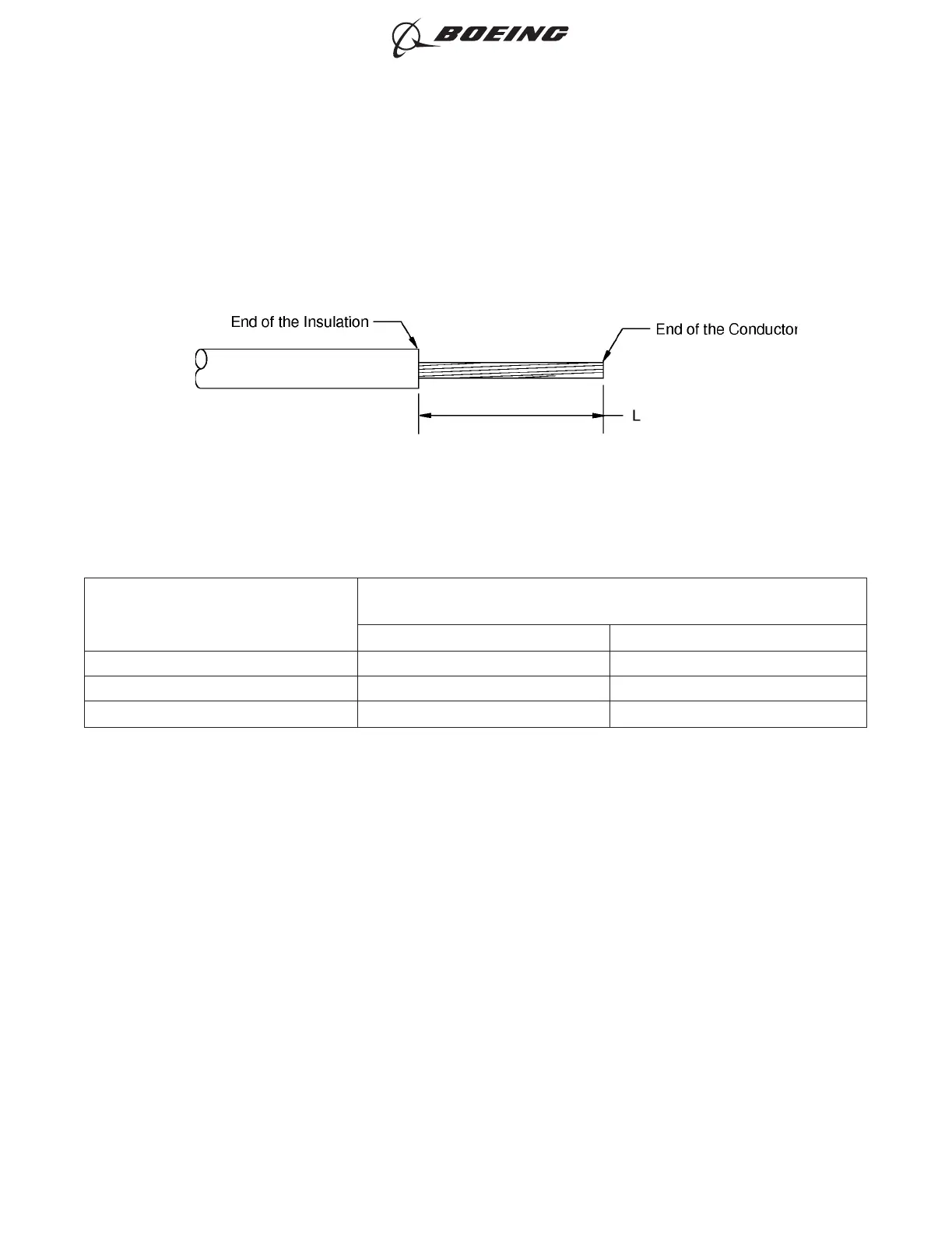

INSULATION REMOVAL LENGTH
Figure 115
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 142
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
