(c) Hold the splice in position with light pressure.
(d) Put the wire in the splice. Refer to Figure 124.
Make sure that:
• The end of the conductor can be seen in the inspection hole
• The end of the conductor does not make an overlap with the wire stop
• The insulation of the wire is not in the crimp barrel
• For an AWG 10 and smaller wire, the end of the wire insulation is a maximum of 0.13
inch from the end of the crimp barrel
• For an AWG 8 and larger wire, the end of the wire insulation is a maximum of 0.25
inch from the end of the crimp barrel.
(e) Crimp the splice.
(7) Do Step 9.B.(6) again to assemble the other end of the butt splice.
(8) Put two layers of the insulation tape on the splice assembly.
(a) Tightly wind the first layer of tape on the splice assembly.
Make sure that the layer:
• Starts 0.5 inch minimum farther than the end of the wire insulation
2447108 S00061544327_V1

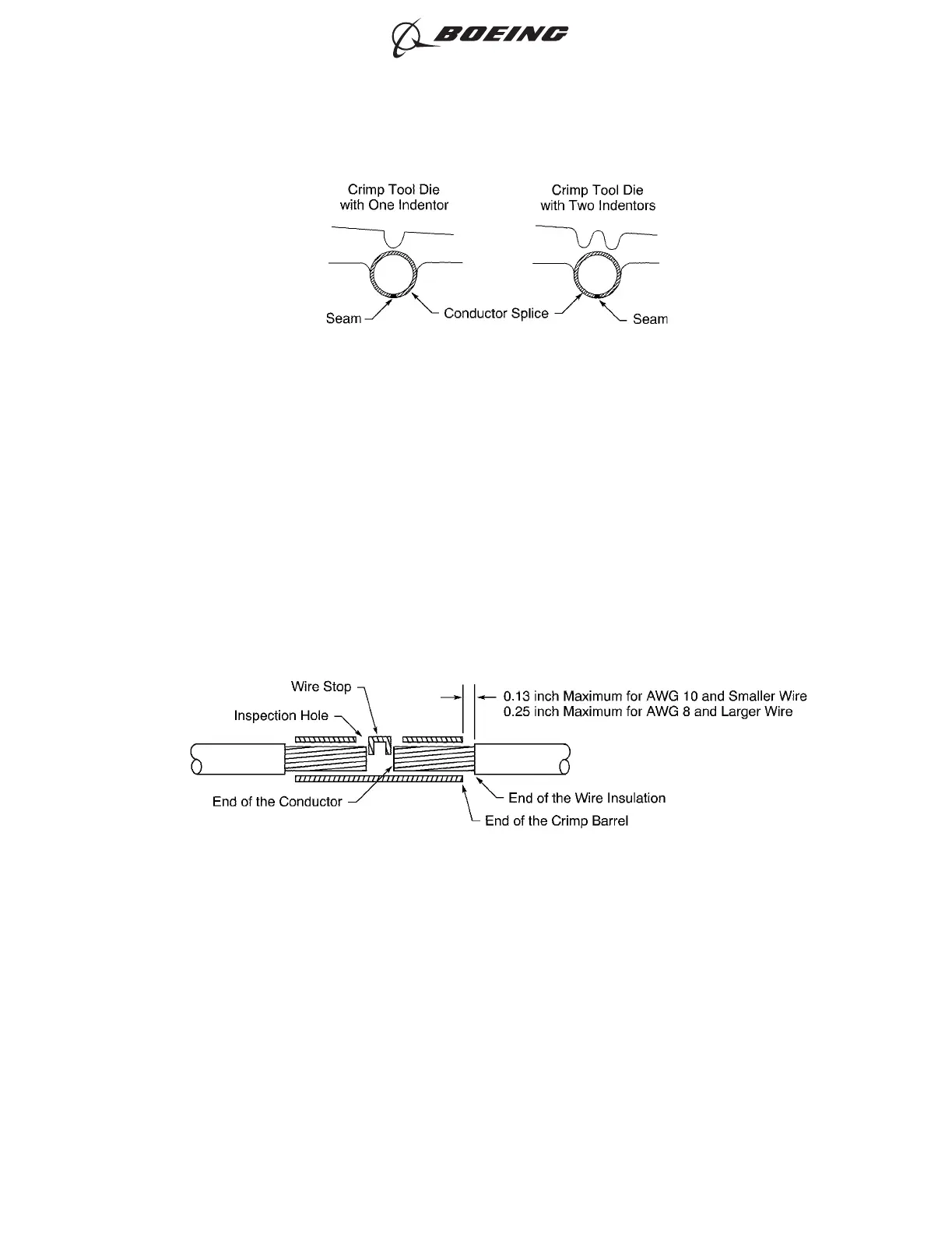

POSITION OF THE BUTT SPLICE IN THE CRIMP TOOL
Figure 123
2447111 S00061545464_V1
POSITION OF THE WIRE IN THE BUTT SPLICE
Figure 124
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 151
Jun 15/2021D6-54446
