(9) Make a selection of an applicable Temperature Grade B conductor splice configuration for two
wires to two wires. Refer to Paragraph 9.A.
(10) Assemble the conductor splice. Refer to the applicable procedure given in Paragraph 9.A.
(11) Assemble the end of the shield splice opposite the end with the shield sleeve material.
(a) Move the outer ferrule on the shield sleeve material.
(b) Move the strands of the shields apart and make them straight.
(c) Move the strands of each shield away from the adjacent wire. Refer to Figure 159.
(d) Align the forward end of the inner ferrule with each end of the outer jackets.
(e) Fold the strands of the shields back on the inner ferrule to make the strands of the shield
symmetrical around the circumference of the ferrule.
(f) Align the end of the shield sleeve material with the end of the strands of the shields that are
folded back.
(g) Align the rear end of the outer ferrule with the rear end of the inner ferrule.
Make sure that:
• The outer ferrule goes around the shield sleeve material
• The rear end of the outer ferrule does not extend farther than the rear end of the inner
ferrule
• The rear end of the outer ferrule is a maximum of 0.06 inch from the rear end of the
inner ferrule.
(h) Crimp the ferrules.
(12) Do Step 10.F.(11) again to assemble the other end of the shield splice.
Make sure that the shield sleeve material is pulled tightly before the ferrules are crimped.
(13) Remove the shield and the shield sleeve material that extend farther than the rear end of the
inner ferrule on each end of the shield splice.
(14) Tightly wind a layer of the tape on the splice assembly.
Make sure that the layer of tape:
• Starts at the rear end of the layer of tape on the outer jacket

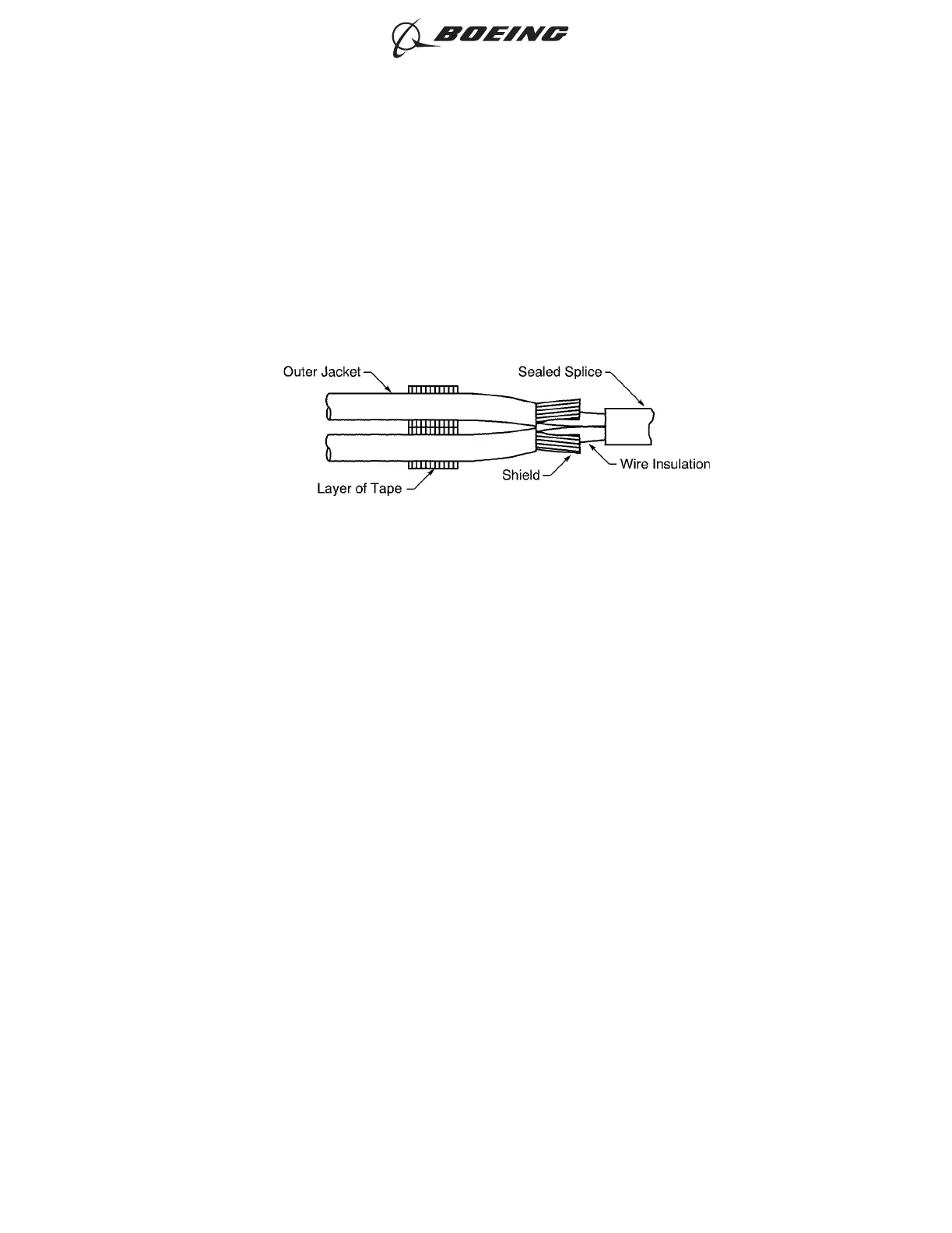

POSITION OF THE SHIELDS
Figure 159
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 189
Jun 15/2021D6-54446
