This Subject gives the procedures to assemble these terminals with aluminum wire:
• BACT12BC, BACT12BD, BACT12BE, BACT12BF and BACT12BG aluminum terminals
1. PART NUMBERS AND DESCRIPTION
A. Terminal Lug Part Numbers
BACT12BC, BACT12BD, BACT12BE, BACT12BF and BACT12BG are aluminum dual-hole
terminal-lugs.
Table 1
ALUMINUM DUAL-HOLE TERMINAL LUG PART NUMBERS
Material Description Part Number Supplier Reference
Tin Plated Aluminum
Straight BACT12BC() Boeing Figure 2
90 Degree Flag BACT12BD() Boeing Figure 3
Flag End BACT12BE() Boeing Figure 4
Hammerhead BACT12BF() Boeing Figure 5
90 Degree Hammerhead BACT12BG() Boeing Figure 6

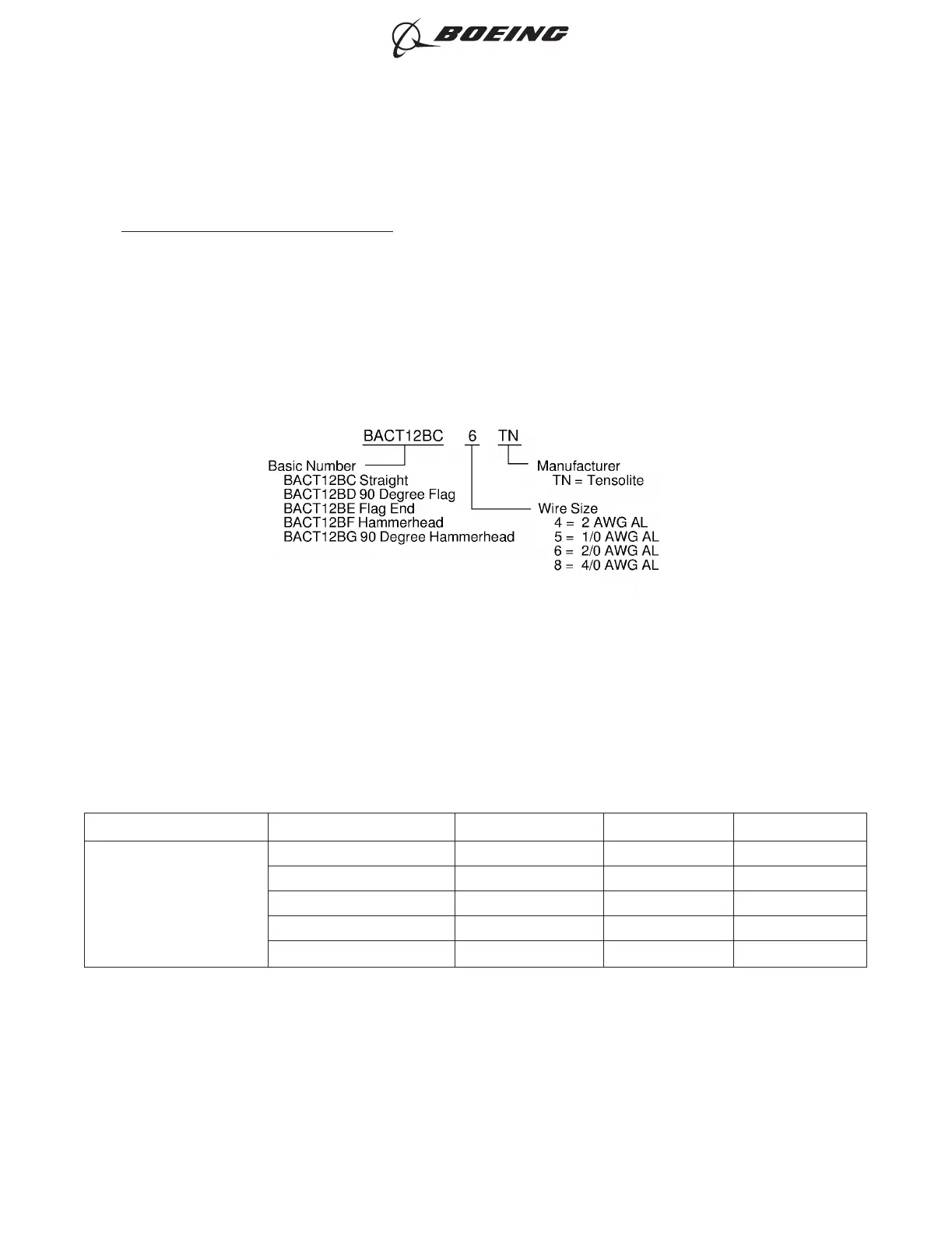

BACT12BC, BACT12BD, BACT12BE, BACT12BF AND BACT12BG PART NUMBER STRUCTURE
Figure 1
ASSEMBLY OF BACT12BC, BACT12BD, BACT12BE, BACT12BF AND BACT12BG ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-07
Page 2
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
