2. TERMINAL ASSEMBLY
A. Wire Preparation
Table 2
WIRE INSULATION REMOVAL LENGTH
Aluminum Wire Size
(AWG)
Removal Length
Minimum
(inch)
Maximum
(inch)
2 AL 0.73 0.77
1/0 AL 0.78 0.82
2/0 AL 0.97 1.03
4/0 AL 1.02 1.08
(1) Make a selection of an insulation sleeve. Refer to Paragraph 2.B..
Make sure that the insulation sleeve is on the wire.
(2) Remove the necessary length of the wire insulation from the wire.
Refer to:
• Table 2
• Figure 7
• Subject 20-00-15 for the procedures to remove wire insulation.

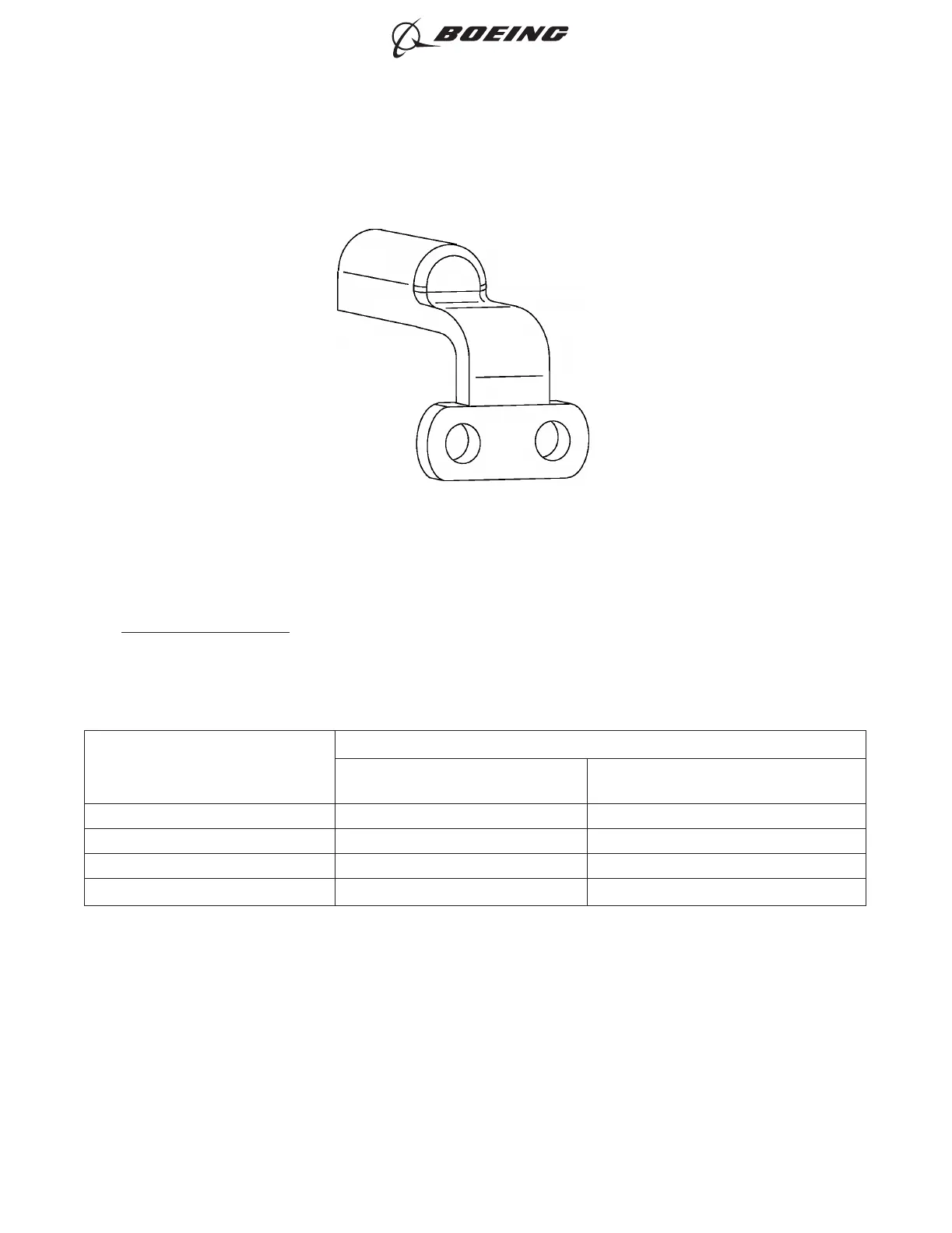

BACT12BG ALUMINUM 90 DEGREE HAMMERHEAD TERMINAL
Figure 6
ASSEMBLY OF BACT12BC, BACT12BD, BACT12BE, BACT12BF AND BACT12BG ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-07
Page 5
Oct 15/2015D6-54446
